Запчасти Case IH 510 (A-74) - SEED FIRMING WHEEL, USE WITH DOUBLE DISK FURROW OPENERS

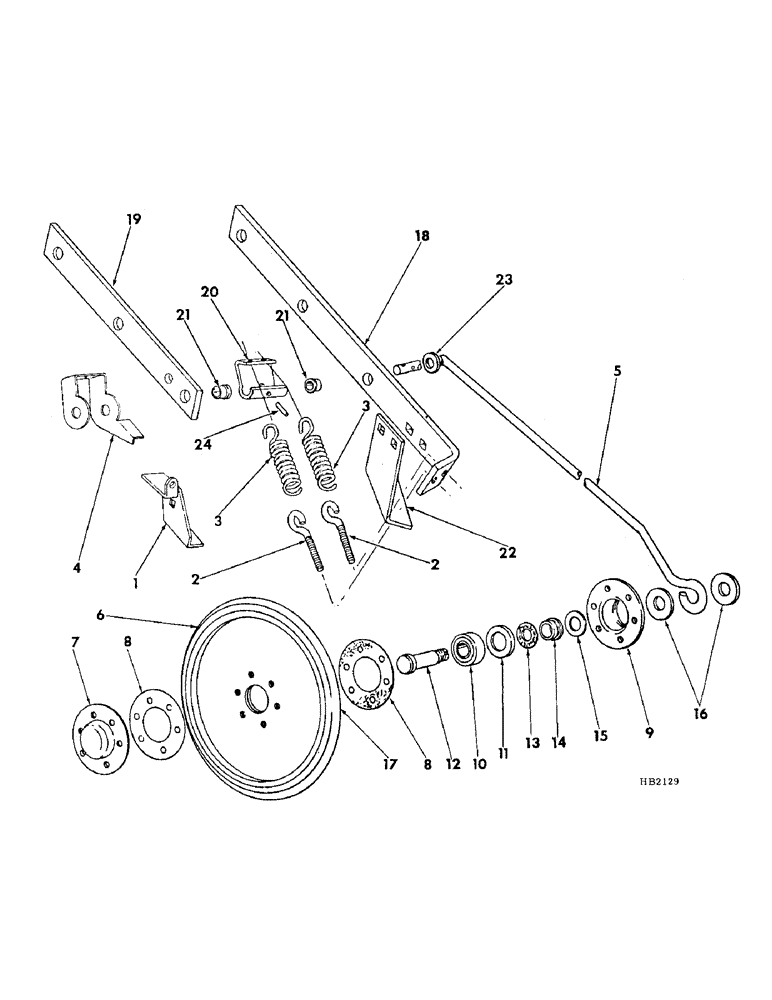

Схема запчастей Case IH 510 - (A-74) - SEED FIRMING WHEEL, USE WITH DOUBLE DISK FURROW OPENERS
8
8
16
21
24
21
14
6
4
2
23
17
2
11
18
3
1
10
15
9
13
3
22
7
5
20
19
12

Артикул

Название

Примечание

Количество

1

815511C1

BRACKET

adjust bolt, cast

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2-13 x 2-1/2 crg

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

815452C1

EYEBOLT,5/16" - 18 x 3"

BOLT, adjust eye 1-cast 2-steel

1шт.

120376

NUT,5/16"-18, G5

2 per bolt 5/16"-18, G5

2шт.

3

819979C1

COIL SPRING

SPRING, adj bolt, 2 per bracket

1шт.

4

815512C1

BRACKET

wheel draw rod, cast boot

1шт.

5

815513C1

ROD

firming wheel draw, cast boot

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

21375R1

WASHER

.531 x 1.250 x .179

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

819337C1

ROD

firming wheel draw, steel boot

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

815514C91

WHEEL ASSY.

WHEEL ASSY, seed firming, consists of, (1) cap 602990R1, (2) gasket 602992R1, (1) retainer 602989R1, (6) rivet 104081 (1) bearing 465004R91, (1) flange 602994R1, (1) bolt 602987R1, (1) nut 121358, (1) washer 121574

1шт.

7

602990R1

CAP

disk

1шт.

8

602992R1

GASKET

retainer

2шт.

9

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small

6шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

11

602994R1

FLANGE

seal

1шт.

12

602987R1

BOLT

BOLT, wheel

1шт.

425-110

5/8-18 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

464628R1

SEAL

dirt, replaces 602993R1

1шт.

14

602988R1

SPACER

seal retainer

1шт.

15

591714R1

WASHER

.719 x 1.250 x .054 (Replaces 591174R1)

1шт.

16

21712R1

WASHER

.719 x 1.500 x .105

2шт.

17

622359R1

TYRE/TIRE

TIRE, seed firming wheel

1шт.

18

819339C1

SUPPORT

draw rod, steel boot

1шт.

19

819338C1

BAR

draw rod, steel boot

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2-16 hex

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20

819336C3

SUPPORT

CHANNEL, spring, steel boot

1шт.

21

819343C1

BUSHING

pivot rod, steel boot

2шт.

22

819335C1

SUPPORT

firming wheel, steel boot

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 carriage

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

21375R1

WASHER

.531 x 1.250 x .179

1шт.

24

364437R1

PIN,3/16" x 7/8", Coiled

steel boot 3/16" x 7/8", Coiled

1шт.

Выбрано товаров: 43
