Запчасти Case IH 510 (A-72) - GANG PRESS WHEEL, BUILT 1973 SEASON AND SINCE

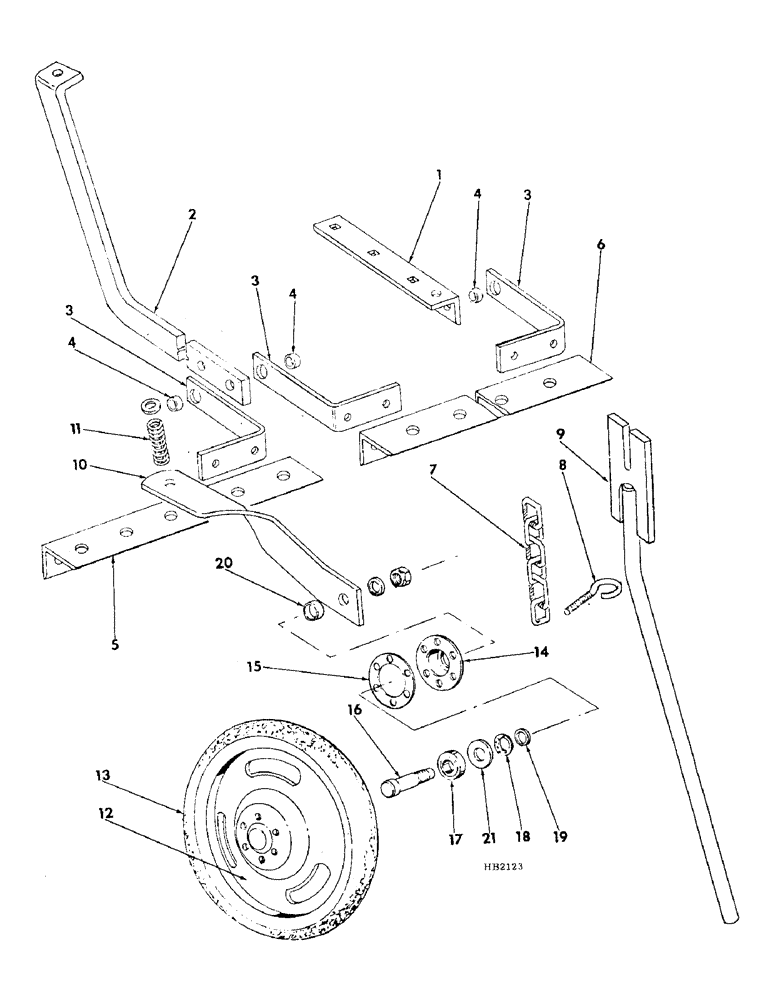

Схема запчастей Case IH 510 - (A-72) - GANG PRESS WHEEL, BUILT 1973 SEASON AND SINCE
4
5
6
11
7
8
2
15
19
16
20
4
12
3
4
13
21
3
18
17
1
9
10
14
3

Артикул

Название

Примечание

Количество

1

815726C1

ANGLE

drawbar outer

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

815727C1

SUPPORT

gang LH, 16 x 7, 18 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

2

815728C1

SUPPORT

gang LH, 20 x 6, 24 x 6 and 21 x 7

1шт.

2

815727C1

SUPPORT

gang RH, 20 x 6, 24 x 6 and 21 x 7

1шт.

2

815728C1

SUPPORT

gang RH, 16 x 7, 18 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

815729C1

ANGLE

gang pivot

6шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

.531 x 1.250 x .054

6шт.

4

27046B

SPACER,1/2" Pipe x 9/16"

pivot

6шт.

5

815730C1

ANGLE

gang mounting centre, 16 x 7, 18 x 7, 16 x 8, 20 x 8, and 16 x 10

1шт.

5

819466C1

ANGLE BAR

ANGLE, gang mounting centre, 20 x 6, 24 x 6 and 21 x 7

1шт.

6

815731C1

ANGLE

gang mounting LH, 16 x 7, 18 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

6

819464C1

ANGLE BAR

ANGLE, gang mounting LH, 20 x 6, 24 x 6 and 21 x 7

1шт.

6

815732C1

ANGLE

gang mounting RH, 16 x 7, 18 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

6

819465C1

ANGLE BAR

ANGLE, gang mounting RH, 20 x 6, 24 x 6 and 21 x 7

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

7

592273R91

CHAIN (AG)

CHAIN, transport

2шт.

8

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

BOLT, lifting tool retainer eye

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x 063

2шт.

9

819123C1

TOOL

ASSY, gang frame lift

1шт.

10

819077C1

BAR

press wheel draw

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2

1шт.

231-1448

NUT,1/2"-13, GB

1/2-13 hex lock

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

11

VC682

VALVE SPRING

SPRING, draw bar

1шт.

12

819078C1

WHEEL,285.75mm OD x 47.75mm W

press

1шт.

13

600483R3

TYRE/TIRE

TIRE, press wheel

1шт.

14

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 small b-hd

6шт.

15

602992R1

GASKET

bearing retainer

1шт.

16

602987R1

BOLT

BOLT, wheel

1шт.

121358

YOKE

5/8-18 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

18

602994R1

FLANGE

seal

1шт.

19

464628R1

SEAL

dirt, replaces 602993R1

1шт.

20

591046R1

SPACER

seal retainer

1шт.

21

602988R1

SPACER

RETAINER, seal

1шт.

Выбрано товаров: 52
