Запчасти Case IH 510 (A-70) - GANG PRESS WHEEL, 16 X 7, 18 X 7, 20 X 8 AND 16 X 10, PRIOR TO 1973 SEASON

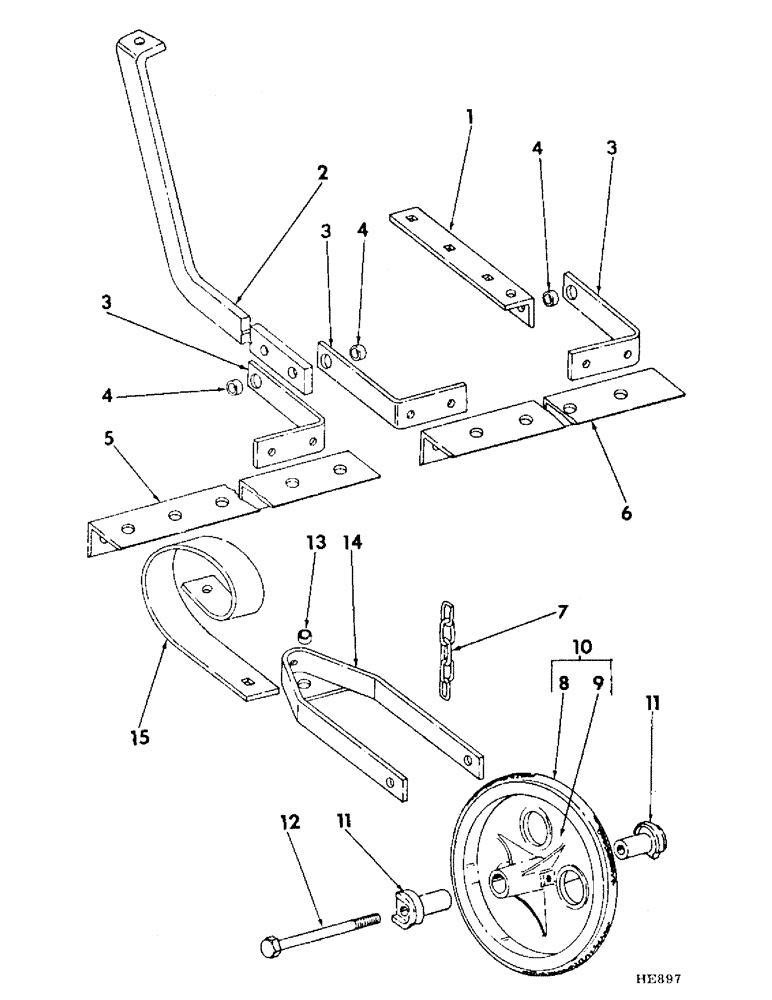

Схема запчастей Case IH 510 - (A-70) - GANG PRESS WHEEL, 16 X 7, 18 X 7, 20 X 8 AND 16 X 10, PRIOR TO 1973 SEASON
15
4
4
11
7
12
8
10
14
3
3
2
5
1
6
9
4
3
11
13

Артикул

Название

Примечание

Количество

1

815726C1

ANGLE

drawbar outer

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

815727C1

SUPPORT

gang LH

1шт.

2

815728C1

SUPPORT

gang RH

1шт.

120122

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

815729C1

ANGLE

gang pivot

6шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 hex-hd

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

.531 x 1.250 x .054

6шт.

4

27046B

SPACER,1/2" Pipe x 9/16"

pivot

6шт.

5

815730C2

SUPPORT

ANGLE, gang mounting centre

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

815731C2

SUPPORT

ANGLE, gang mounting LH

1шт.

6

815732C2

SUPPORT

ANGLE, gang mounting RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

7

592273R91

CHAIN (AG)

CHAIN, transport

1шт.

8

600483R3

TYRE/TIRE

TIRE, press wheel

1шт.

9

600484R1

WHEEL

gang press

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

10

600497R93

UNIT

WHEEL ASSY, gang press, includes 1-600484R1, wheel, 1-600483R3, tires and 1-109461, fitting

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

11

NA776

SPACER

JOURNAL, press wheel

2шт.

12

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2-13 x 6 wheel axle

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

13

2551F

WASHER

SPACER, press wheel fork pivot

1шт.

14

N32929

FORK ASSY, press wheel

1шт.

12756R1

BOLT,7/16" - 14 x 1 1/4", Type 1

7/16-14 x 1-1/4 dld crg

1шт.

607891R1

WASHER

.438 x 1.250 x .054

1шт.

N32417

WASHER, 15/32 x 1-25/32 x 8 ga

1шт.

272070

TUBE

7/16-14 sltd-hex

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

15

N32911

SPRING, press wheel

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

Выбрано товаров: 46
