Запчасти Case IH 510 (A-68) - DISK MARKER

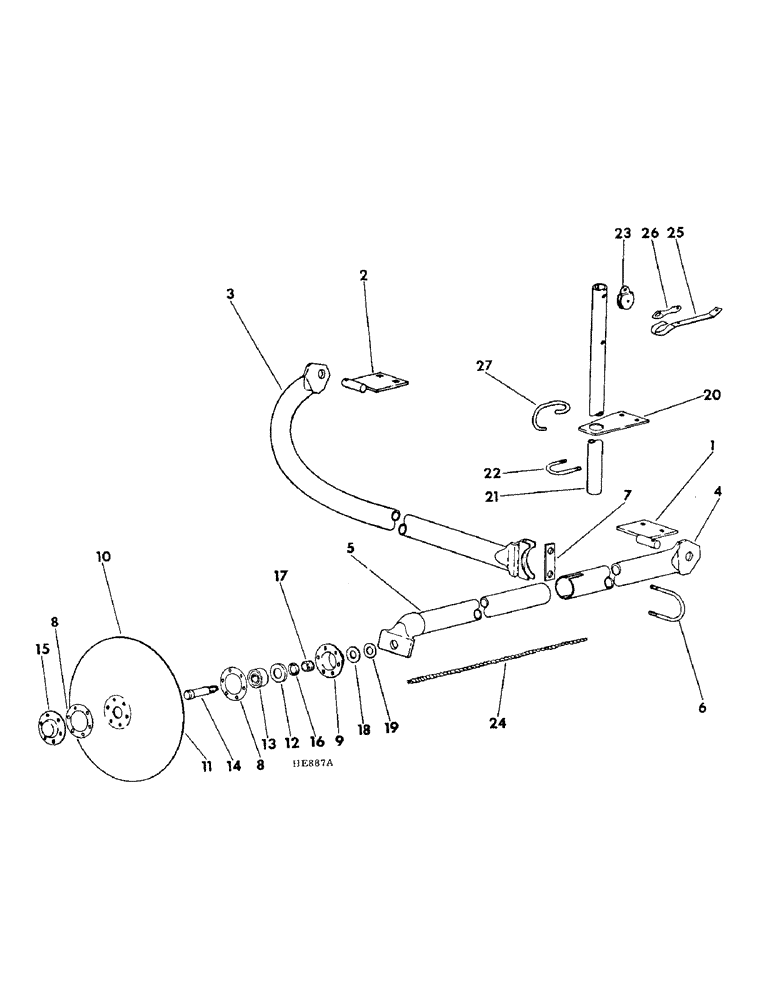

Схема запчастей Case IH 510 - (A-68) - DISK MARKER
15
10
20
4
22
5
27
8
8
3
23
7
16
13
17
21
9
12
24
19
14
11
6
25
18
2
26
1

Артикул

Название

Примечание

Количество

1

815734C1

PIVOT

ASSY, marker front

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

21753R1

WASHER

.781 x 1.500 x .054

1шт.

2

815735C1

PIVOT

ASSY, marker rear

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

21753R1

WASHER

.781 x 1.500 x .054

1шт.

3

815739C1

BRACKET

BRACE ASSY, marker support

1шт.

4

815742C1

TUBE,1.775" ID, 2" OD, 26, 2.5" Length

ASSY, marker disk

1шт.

5

596516R11

TUBE,1767.8, 33 mm Length

ASSY, disk telescoping

1шт.

6

596521R1

U-BOLT

marker disk tube

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

816581C1

BAR

u-bolt clamping machines built 1970 & since

1шт.

8

602992R1

GASKET

retainer

2шт.

9

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small

6шт.

10

815746C92

DISC

DISK ASSY, marker, consists of (1) disk 603004R1, (1) cap 602990 R1, (2) gasket 602992R1, (1) retainer 602989R1, (6) rivet 104081, (1) bolt 602987R1, (1) nut 121358, (1) washer 121574, (1) bearing 465004R91, (1) flange 602994R1

1шт.

11

603004R2

PLOW DISC

DISK, marker

1шт.

12

602994R1

FLANGE

seal

1шт.

13

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

14

602987R1

BOLT

BOLT, disk

1шт.

425-110

5/8-18 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

602990R1

CAP

disk

1шт.

16

464628R1

SEAL

dirt, replaces 602993R1

1шт.

17

602988R1

SPACER

seal retainer

1шт.

18

591714R1

WASHER

.719 x 1.250 x .054

1шт.

19

21712R1

WASHER

.719 x 1.500 x .105

1шт.

20

815747C1

BAR

marker rope mast pipe

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21309R1

WASHER

.406 x .875 x .179, for use w/grass seed attach

1шт.

21

815748C1

TUBE,33.4 mm OD, 980.4 mm Length

PIPE, rope pulley mast

1шт.

22

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT, mast pipe

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

819043C91

PULLEY

ASSY, rope

2шт.

119198

COTTER PIN,3/8" x 2 1/2"

PIN SPLIT (COTTER), 3/8" x 2 1/2"

2шт.

24

ROPE, 3/8 x 42 foot sisal, dealer to furnish locally

1шт.

25

615712R91

GUIDE

ASSY, marker rope, includes 1-FA 4916, spring and 1-106883, rivet, one guide required for single or double marker applications

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 type 1 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21752R1

WASHER

.406 x 1.500 x .054

1шт.

26

FA4916

SPRING

rope guide

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

27

815893C1

ROD

marker hold-up

1шт.
