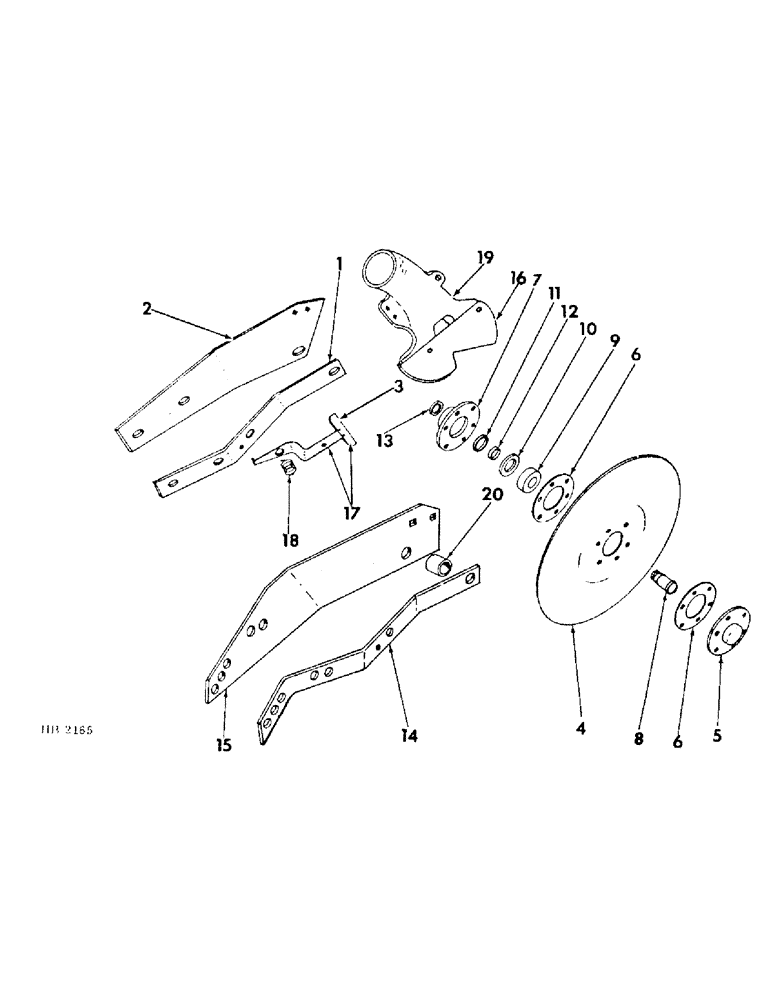

Запчасти Case IH 510 (A-65) - SEPARATE PLACEMENT FURROW OPENER, SINGLE DISK SEALED BALL BEARING, USE W/ DOUBLE DISK FURROW OPENER

1

815502C1

BRACE

single disk drawbar inner LH

1шт.

1

815503C1

BRACE

single disk drawbar inner RH

1шт.

2

815504C1

BRACE

single disk drawbar outer LH

1шт.

2

815505C1

BRACE

single disk drawbar outer RH, w/cast boot

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

W7008

BLADE

disk scraper

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

4

603004R2

PLOW DISC

DISK, furrow opener single

1шт.

5

602990R1

CAP

disk

1шт.

6

602992R1

GASKET

retainer

2шт.

7

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small

6шт.

8

602987R1

BOLT

BOLT, disk

1шт.

121358

YOKE

5/8-18 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

10

602994R1

FLANGE

seal

1шт.

11

464628R1

SEAL

dirt, replaces 602993R1

1шт.

12

602988R1

SPACER

seal retainer

1шт.

13

591714R1

WASHER

.718 x 1.250 x .054 flat

1шт.

14

819355C1

DRAWBAR

single disk LH

1шт.

14

819356C1

DRAWBAR

single disk RH

1шт.

15

819357C1

DRAWBAR

single disk LH

1шт.

15

819358C1

DRAWBAR

single disk RH, w/steel boot

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

16

606154R1

LANDSIDE

deep seeding notched LH

1шт.

16

606155R1

LANDSIDE

deep seeding notched RH

1шт.

106913

RIVET,Truss Hd, 5/16" x 5/8"

5/16 x 5/8 truss-hd

4шт.

17

603620R11

BLADE

SCRAPER ASSY, single disk LH

1шт.

17

603621R11

PACKAGE

SCRAPER ASSY, single disk RH, includes 1-W7008, blade and 2-106883, rivet

1шт.

W4435

PIN

3/8 x 1-3/8 std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

N32176

SPRING

scraper

1шт.

19

594249R91

BOOT

ASSY, deep seeding notched landside LH, consists of 1-606154R1, landside and 2-106913, rivet

1шт.

19

594250R91

BOOT

ASSY, deep seeding notched landside RH, consists of 1-606155R1, landside and and 2-106913, rivet

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

P13335

SPACER,1/2" Pipe x 2 1/2"

dble. disk, drawbar, 2-w/steel.boot

1шт.

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL, single, consists of, (1) bearing 465004R91, (1) bolt 602987R1, (1) cap 602990R1, (1) disk 603004R1, (1) flange 602994 R1,(2) gasket 602992R1, (1) nut 121358, (1) retainer 602989R1, (6) rivet 104081, (1) washer 121574

1шт.
