Запчасти Case IH 510 (A-64) - SEED FLOW MONITOR

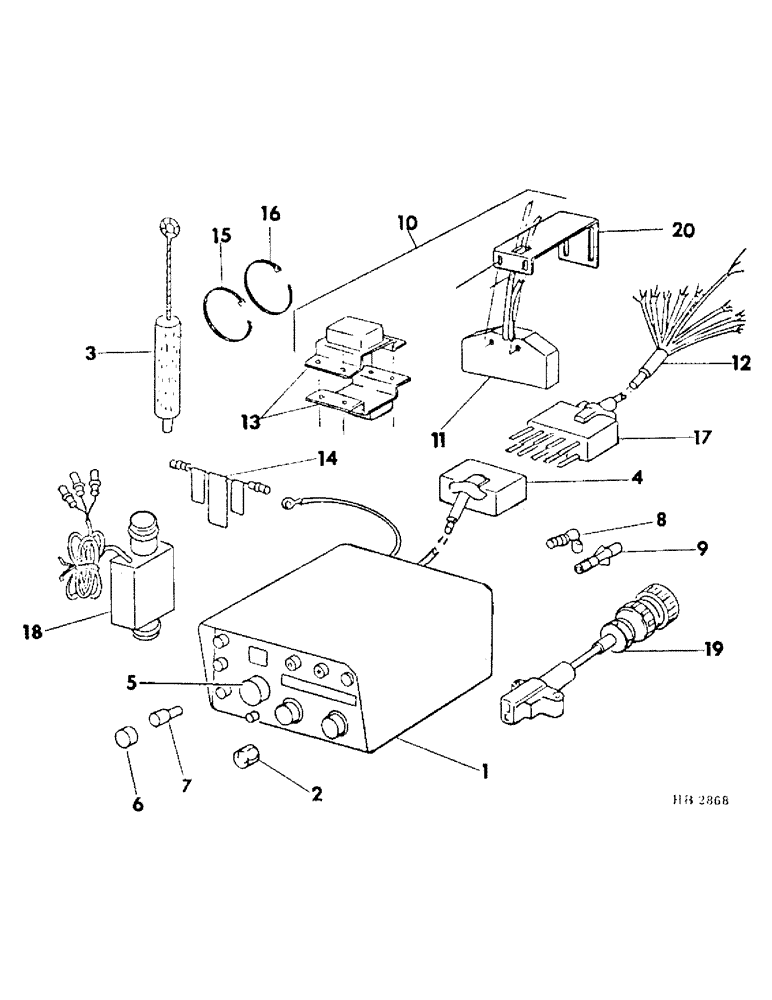

Схема запчастей Case IH 510 - (A-64) - SEED FLOW MONITOR
14
10
6
15
18
11
3
16
2
20
1
5
12
8
7
17
19
4
13
9

Артикул

Название

Примечание

Количество

1

79299C1

CONSOLE

seed flow monitor, renewed

1шт.

133924C1

DECAL

PRODUCT GRAPHIC, seed flow

1шт.

2

106652

FUSE,3 Amp, Type 3AG

3 amp

1шт.

3

128817C1

BRUSH, COMMUTATOR

BRUSH, seed sensor cleaning

1шт.

4

128814C1

SOCKET

female connector

1шт.

5

128816C1

BUZZER

sonalert

1шт.

6

58499C1

LENS

amber

1шт.

7

58554C1

BULB,C2F, #1892, 14V

LAMP

1шт.

8

58558C1

SUPPRESSOR

spark plug

1шт.

9

58559C1

SUPPRESSOR

distributor

1шт.

10

819972C91

SENSOR

KIT, granular shaft sensor, consists of, (1) sensor 818367C91, (1) magnet 818368C91, (1) bracket 818369C91

1шт.

11

818367C91

SENSOR

ASSY, shaft rotation, consists of, (4) strap 58556C1, (2) screw 167047, (2) washer 121841

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, 8-32 x 1/2 type D pan-hd

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

12

819974C91

HARNESS

single drill wiring

1шт.

12

819975C91

HARNESS

second drill wiring

1шт.

12

819976C91

HARNESS

third drill wiring

1шт.

12

819977C91

HARNESS

fourth drill wiring

1шт.

13

818368C91

MAGNET

ASSY, feed shaft, consists of, (2) magnet (NSS), (2) screw 134524, (2) nut 134524, (2) washer 131043

1шт.

25629R1

SCREW, 4-40 x 1/4 pan-hd-sltd

2шт.

225-14104

NUT,#4-40

4-40 hex

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

14

58557C1

ELECTRICAL WIRE

WIRE, shortening

1шт.

15

58555C1

FASTENER

STRAP, tie 7 in.

1шт.

16

58556C1

CABLE TIE

STRAP, tie 4 in.

1шт.

17

128813C1

CONNECTOR,ELECTRIC

PLUG, male connection socket

1шт.

18

819971C91

SENSOR

seed

1шт.

19

819973C1

CABLE

adaptor, to convert cyclometer 2 console to grain drill seed flow system

1шт.

20

818369C91

BRACKET

sensor feed shaft, consists of, (1) bracket (NSS), (2) screw 450644, (2) nut 120622, (2) washer 131015, (2) washer 121841

1шт.

450644

BEARING ASSY,50 mm ID x 110 mm OD x 27 mm

8-32 x 3/8 hex-hd mach

2шт.

120622

NUT,#8-32

2шт.

131015

WASHER

.188 x .438 x .036

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

1097071R2

INSTRUCTION

MANUAL, seed flow monitoring

1шт.

Выбрано товаров: 34
