Запчасти Case IH 510 (A-63) - FEEDSHAFT ROTATION INDICATOR

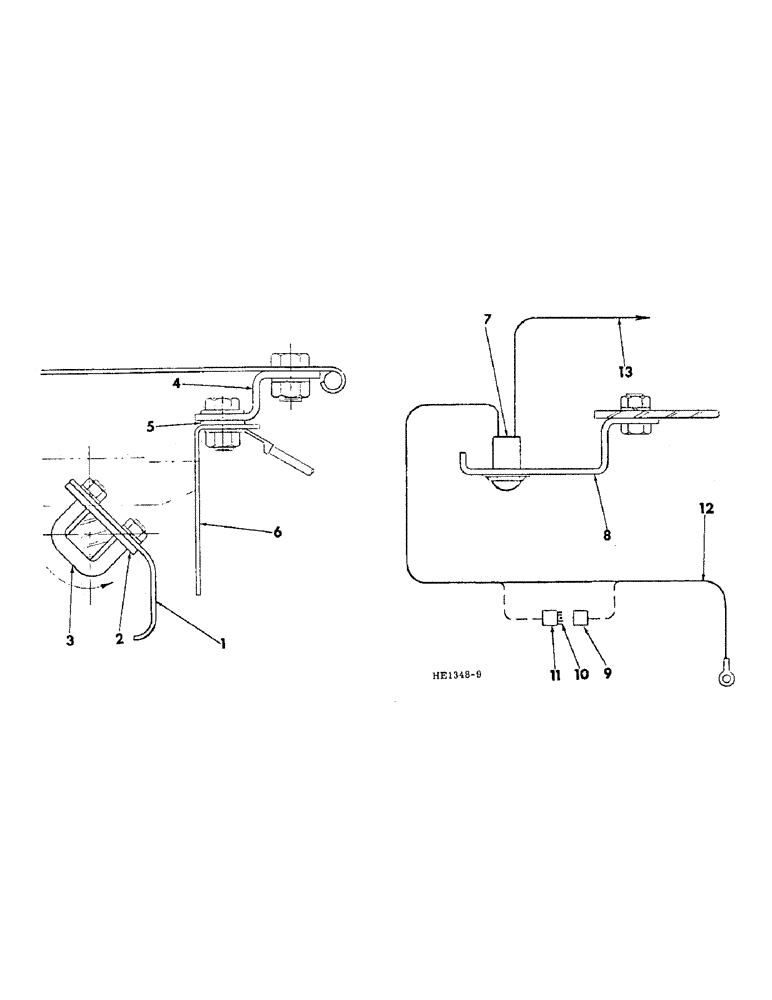

Схема запчастей Case IH 510 - (A-63) - FEEDSHAFT ROTATION INDICATOR
5
12
5
13
10
3
7
8
6
1
4
9
11

Артикул

Название

Примечание

Количество

1

816791C1

CLIP

indicator

1шт.

2

816792C1

STRAP

BAR, indicator u-bolt clamping

1шт.

3

11261R

U-BOLT

indicator clip on feedshaft

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

816789C1

BRACKET

indicator contact

1шт.

5

117960

GROMMET,5/16" ID x .719" x .188"

no. 4 rubber

2шт.

6

816790C1

ANGLE

indicator contact

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

7

676922R91

LAMP

LIGHT ASSY, indicator

1шт.

8

816788C1

PANEL

indicator light

1шт.

816848C1

PLUG

panel filler

5шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

9

405002C1

MULTIPOLE CONNECTOR,Male, 7 Pin

CONNECTOR, wire, for quick-disconnect

1шт.

10

892136C1

ELEC CONNECTOR,Female

CONNECTOR, wire, for quick-disconnect

1шт.

11

188395R1

WIRE CONNECTOR,Male

CONNECTOR, wire, for quick-disconnect

1шт.

12

WIRE, 18 ga drill contact, not serviced separately, for service order 1-676922R91, lamp

1шт.

13

WIRE, 18 ga drill contact, not services separately, for service order 1-676922R91, lamp

1шт.

Выбрано товаров: 24
