Запчасти Case IH 510 (A-62) - DRAG CHAIN

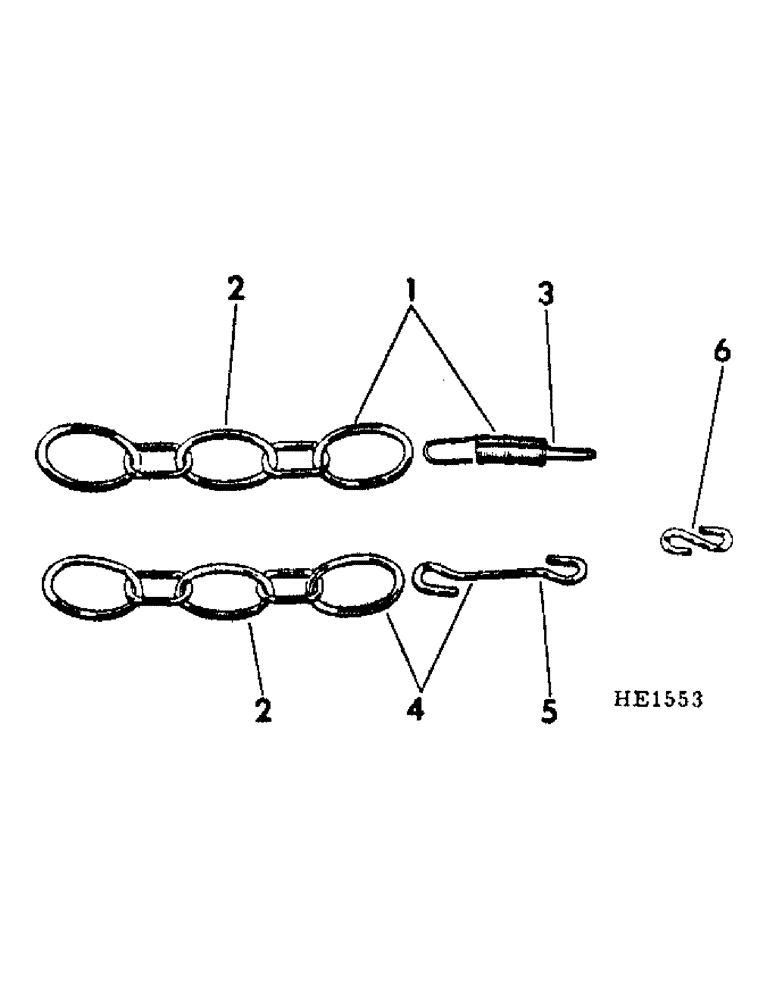

Схема запчастей Case IH 510 - (A-62) - DRAG CHAIN
4
6
2
5
1
3
2

Артикул

Название

Примечание

Количество

1

NA22821

CHAIN (CE)

CHAIN ASSY, end drag, includes 1-601565R91, chain and 1-N42089, spring, for use on four outer furrow openers, two at each end of drill

1шт.

2

601565R91

CHAIN (AG)

CHAIN, drag

2шт.

3

N42089

COIL SPRING

SPRING, drag chain, for use on four outer furrow openers, two at each end of drill

1шт.

4

NA10643

CHAIN (AG)

CHAIN ASSY, intermediate drag, includes 1-601565R91, chain, and 1-N11031, link

1шт.

5

N11031

LINK, CONNECTING

LINK, drag chain

1шт.

6

W3767

LINK, CONNECTING

LINK, drag chain, use w/dble disk F.O.

1шт.

Выбрано товаров: 6
