Запчасти Case IH 510 (A-58) - DOUBLE DISK FURROW OPENER, SEALED BALL BEARING CAST BOOT TYPE, MACHINES PRIOR TO 1975 SEASON

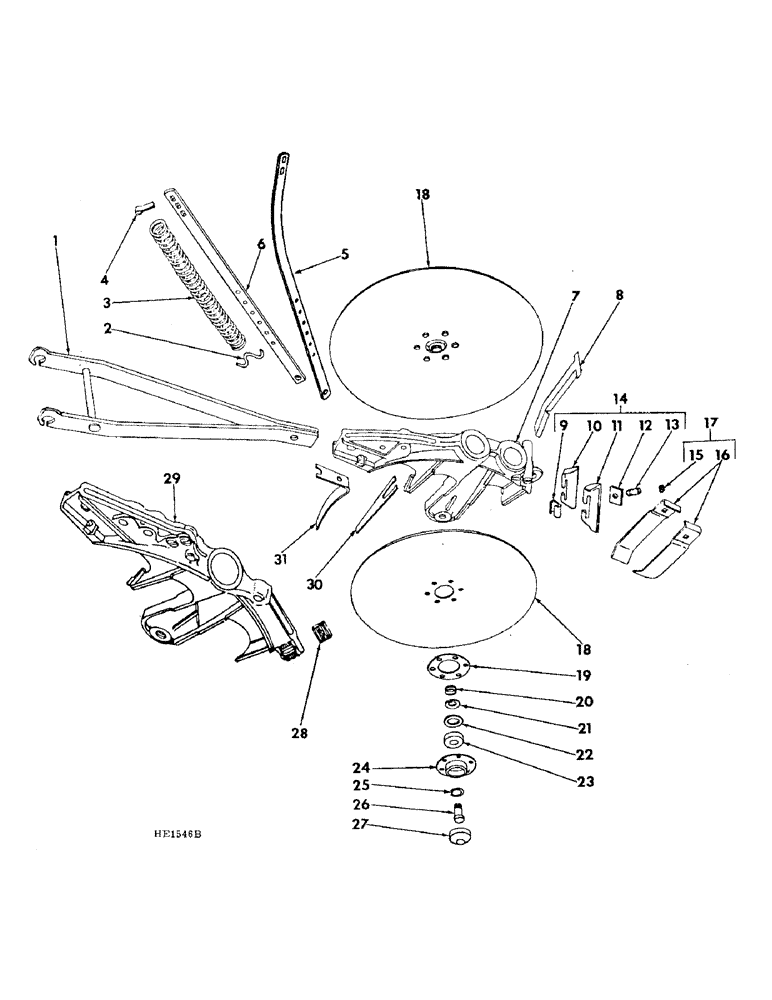

Схема запчастей Case IH 510 - (A-58) - DOUBLE DISK FURROW OPENER, SEALED BALL BEARING CAST BOOT TYPE, MACHINES PRIOR TO 1975 SEASON
27
24
11
31
17
9
26
7
21
14
28
13
1
30
8
29
10
15
5
4
3
16
12
23
2
19
18
20
6
25
18
22

Артикул

Название

Примечание

Количество

1

815491C1

BAR

DRAWBAR ASSY, front rank

1шт.

1

815492C1

DRAWBAR

ASSY, rear rank

1шт.

2

F6366

LOCK

pressure spring

1шт.

3

N42899

SPRING

pressure rod, not for use w/separate placement F.O. for use w/separate placement F.O. or seed firming wheels

1шт.

3

6626

SPRING

pressure, use w/separate placement fert F.O. or seed firming wheels

1шт.

4

605964R1

CLIP

Special flat cotter

1шт.

5

815497C1

BAR

pressure spring front F/O, not for use w/centre F/O on 21 x 7

1шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

1шт.

5

815497C1

BAR

pressure spring front F/O, for use w/center F/O on 21 x 7

1шт.

1380S

PIN

5/16 x 1-34 std-hd dld

1шт.

20893R1

WASHER

11/32 x 1 x 11 ga

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

815498C1

BAR

pressure spring rear F/O

1шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

1шт.

7

BOOT ASSY, double disk, includes 1-603663R2, boot, 1-178081, plug and 1-603822R92, scraper assy, not for use w/separate placement F.O. or seed firming wheels, order 1-603663R2, boot and 1-819819C91, scraper assy

1шт.

7

603663R2

BOOT

double disk, not for use w/separate placement F.O. or seed firming wheels

1шт.

178081

HOLE PLUG BUTTON,1 3/8"

PLUG, 1-3/8 button

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex-hd

1шт.

271501

SOCKET

NUT, 7/16-14 hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

603590R1

DEFLECTOR

fertilizer, not for use w/separate placement F.O. or seed firming wheels

1шт.

9

N62537

HINGE

inside scraper, use w/603822R92, scraper assy

1шт.

13375R1

BOLT, 5/16-18 x 2-1/2 sq-hd mach

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 hex lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

9

819808C1

HINGE

scraper, use w/819819C91, scraper assy

1шт.

152574C1

BOLT,Sq Hd, 5/16" - 18 x 2 3/4"

5/16-18 x 2-3/4 sq-hd mach

1шт.

274881

WASHER

5/16-18 hex lock

1шт.

134238R1

WASHER

344 x 1.000 x .054

1шт.

10

605974R1

BLADE

SCRAPER, inside RH, use w/603822R92, scraper assy

1шт.

10

816666C1

BLADE

SCRAPER, inside RH, use w/819819C91, scraper assy

1шт.

11

605975R1

BLADE

SCRAPER, inside LH, use w/603822R92, scraper assy

1шт.

11

816665C1

BLADE

SCRAPER, inside LH, use w/819819C91, scraper assy

1шт.

12

N62538

KNIFE ASSY

SPREADER, inside scraper, use w/603822R92, scraper assy

1шт.

12

816668C1

LEDGER PLATE

SPREADER, scraper use w/819819C91, scraper assy

1шт.

13

N62536

VALVE SPRING

SPRING, inside scraper

1шт.

14

SCRAPER ASSY, double disk inside order 1-819819C91, scraper assy, consists of, (1)scraper 605974R1, (1)scraper 605975R1, (1) spreader N62538, (1) hinge N62537, (1) spring N62536, (1) bolt 13375R1 (1) nut 274881 (1) washer 134238R1

1шт.

14

819819C91

BLADE

SCRAPER ASSY, double disk inside, consists of, (1)scraper 816665C1, (1) scraper 819666C1, (1) spreader 819668C1, (1) hinge 819808C1, (1) spring N62536, (1) bolt 152574C1, (1) nut 274881

1шт.

15

SPRING, double disk outside scraper, for service order 1-598935R91, package, not for use w/separate placement F.O. or seed firming wheels

1шт.

16

SCRAPER, double disk outside, for service order 1-598935R91, package, not for use w/separate placement F.O. or seed firming wheels

1шт.

17

598935R91

STRIPPER PACKAGE

PACKAGE, double disk outside scraper, not for use w/separate placement F.O. or seed firming wheels, consists of (1) spring (NSS), (2) scraper (NSS)

1шт.

18

603013R2

PLOW DISC

BLADE, disk

2шт.

19

602992R1

GASKET

paper

2шт.

20

602988R1

SPACER

seal retainer

2шт.

21

602994R1

FLANGE

seal

2шт.

22

464628R1

SEAL

dirt, replaces 602993R1

2шт.

23

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

24

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small b-hd

12шт.

25

141707

WASHER,Int Tooth, 11/16"

11/16 internal, t-lk

2шт.

26

603010R1

BOLT (SPREADER)

BOLT, disk LH

1шт.

26

603011R1

BOLT (SPREADER)

BOLT, disk RH

1шт.

27

603012R1

DUST CAP

CAP, disk blade dirt

2шт.

28

594232R1

ADJUSTER

single disk drawbar, use w/separate placement fert F.O.

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

29

BOOT ASSY, furrow opener double disk, consists of 1-594239R1, bolt and 1-603822R92, scraper assy, use w/separate placement fert F.O. or seed firming wheels, order 1-594239R1, boot and 1-819819C1, scraper assy

1шт.

29

594239R1

BOOT

furrow opener double disk, use w/separate placement fert F.O. or seed firming wheels, refer to seed firming whl

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex-hd

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

30

N62294

DEFLECTOR

grain built prior to the 1971 season

1шт.

31

NA62293

GUARD ASSY.

GUARD, double disk boot

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

1шт.

NLS

NO LONGER SERVICED

5/16-18 square

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL, w/hub and bearing, consists of (1) retainer 602989R1, (1) gasket 602992R1, (1) flange 602994R1, (1) blade 603013R2, (6) rivet 104081, (1) bearing 465004R91

1шт.

Выбрано товаров: 67
