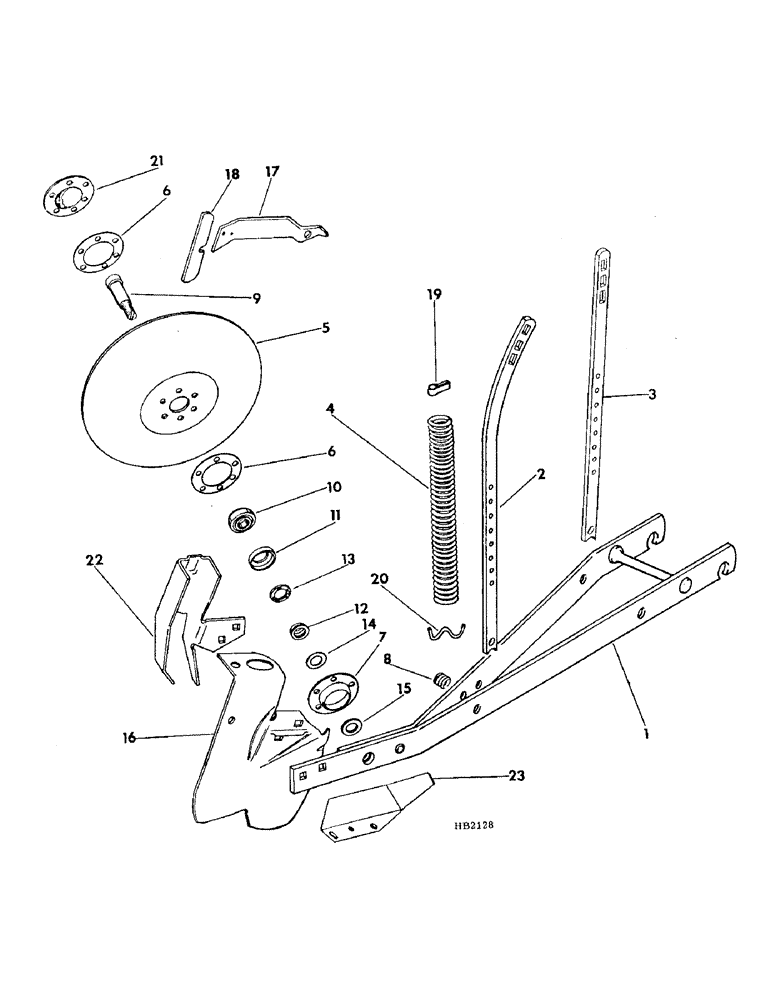

Запчасти Case IH 510 (A-56) - SINGLE DISK FURROW OPENERS, SEALED BALL BEARING STEEL BOOT TYPE, MACHINES 1975 SEASON AND SINCE

1

815470C1

DRAWBAR

ASSY, front rank LH

1шт.

1

815471C1

BAR

DRAWBAR ASSY, front rank RH

1шт.

1

815472C1

DRAWBAR

ASSY, rear rank LH

1шт.

1

815473C1

BAR

DRAWBAR ASSY, rear rank RH, includes 1-106930 rivet, not for machines, Serial Range: shipped-U.K.

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd

1шт.

1

816748C1

BAR

DRAWBAR ASSY, front rank LH

1шт.

1

816749C1

BAR

DRAWBAR ASSY, front rank RH

1шт.

1

816754C1

BAR

DRAWBAR ASSY, rear rank LH

1шт.

1

816755C1

DRAWBAR

ASSY, rear rank RH, for drills, Serial Range: shipped-U.K.

1шт.

2

815482C1

BAR

pressure spring, not for machines, Serial Range: shipped-U.K.

1шт.

2

816756C2

BAR

pressure spring front, for plain landside F.O. for drills, Serial Range: shipped-U.K.

1шт.

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

PIN, 3/8 x 3 std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

816757C1

BAR

pressure spring rear, for drills, Serial Range: shipped-U.K.

1шт.

456779R1

PIN

3/8 x 2-5/8 std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

6638

SPRING

pressure, not for machines, Serial Range: shipped-U.K.

1шт.

4

6626

SPRING

pressure rod, for drills, Serial Range: shipped-U.K.

1шт.

5

603004R2

PLOW DISC

DISK, furrow opener single

1шт.

6

602992R1

GASKET

bearing retainer

2шт.

7

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small solid

6шт.

8

N32176

SPRING

pressure bar location

1шт.

9

602987R1

BOLT

BOLT, disk

1шт.

425-110

5/8-18 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

11

602994R1

FLANGE

seal

1шт.

12

464628R1

SEAL

dirt, replaces 602993R1

1шт.

13

602988R1

SPACER

seal retainer

1шт.

14

591714R1

WASHER

.718 x 1.250 x .054 flat

2шт.

15

21712R1

WASHER

.718 x 1.500 x .105 flat

1шт.

16

819191C2

BOOT

single disk LH

1шт.

16

819192C2

BOOT

single disk RH

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

603620R11

BLADE

SCRAPER ASSY, single disk LH, includes 1-W7008, blade and 2-106883, rivet

1шт.

17

603621R11

PACKAGE

SCRAPER ASSY, single disk RH, includes 1-W7008, blade and 2-106883, rivet

1шт.

18

W7008

BLADE

disk scraper

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

19

605964R1

CLIP

special flat cotter, 1 used per pressure spring bar

1шт.

20

F6366

LOCK

pressure spring

1шт.

21

602990R1

CAP

disk

1шт.

22

819165C1

BOOT

DEFLECTOR, single disk LH

1шт.

22

819166C1

BOOT

DEFLECTOR, single disk RH

1шт.

23

816740C1

GUARD

DEFLECTOR, LH rear furrow opener dirt

1шт.

23

816741C1

GUARD

DEFLECTOR, RH rear furrow opener dirt, for drills, Serial Range: shipped-U.K.

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage

2шт.

21752R1

WASHER

.406 x 1.500 x .054

1шт.

120377

NUT,3/8" - 16, Gr 5

(per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , per bolt 3/8"

1шт.

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL, single, consist of ref 5, 6, 7, 9, 10, 11 & 21

1шт.
