Запчасти Case IH 510 (A-02) - FRAME, ROCKSHAFT AND DRAWBAR MOUNTING

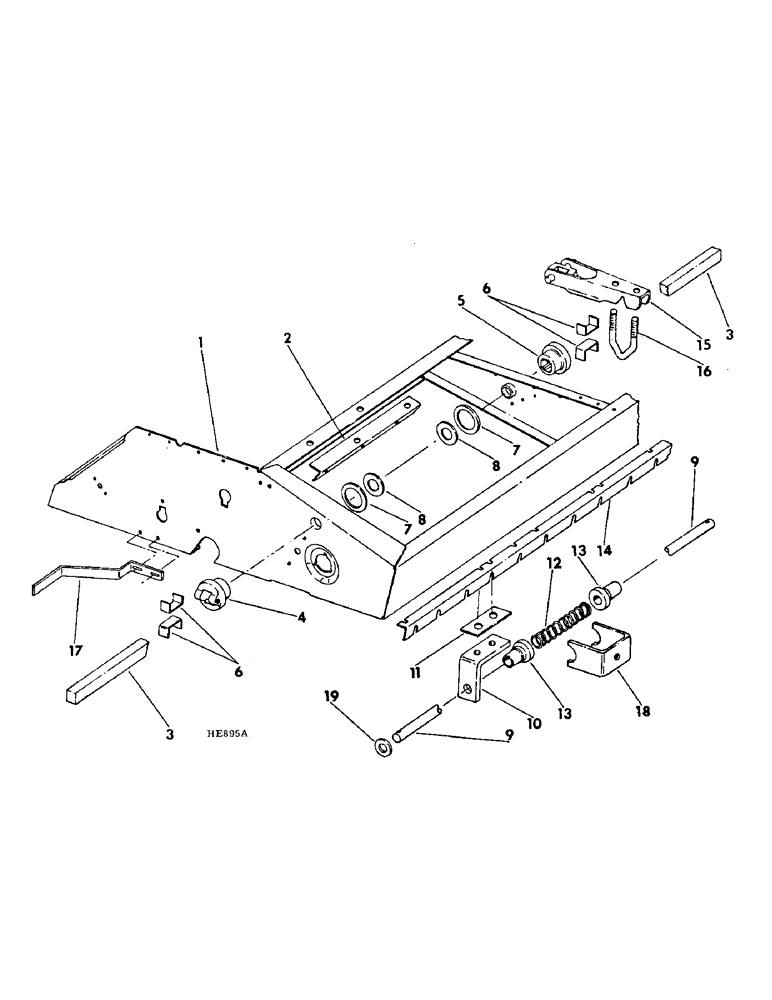

Схема запчастей Case IH 510 - (A-02) - FRAME, ROCKSHAFT AND DRAWBAR MOUNTING
19
3
11
6
14
8
18
4
10
8
2
13
1
3
17
15
16
7
6
5
13
12
7
9
9

Артикул

Название

Примечание

Количество

1

819062C92

FRAME

ASSY, main, 13 x 7

1шт.

1

819063C93

FRAME ASSY

main, 16 x 7

1шт.

1

819064C94

FRAME ASSY

main, 20 x 6, 18 x 7 and 16 x 8

1шт.

1

819065C94

FRAME ASSY

main, 24 x 6 and 21 x 7

1шт.

1

819066C94

FRAME ASSY

main, 20 x 8 and 16 x 10, includes 1-61907C1, prod graphic warning

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg 6-24 x 6, 21 x 7, 20 x 8, 16 x 10, 20 x 6, 18 x 7, 16 x 8-13 x 7, 16 x 7

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt, product graphic, caution-general 3/8"

1шт.

2

815023C1

ANGLE

crossmember reinforcing LH

1шт.

2

815024C1

ANGLE

crossmember reinforcing RH, 20 x 6, 24 x 6, 18 x 7, 21 x 7, x 16 x 8, 20 x 8 and 16 x 10

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

3

BAR, rockshaft, 13 x 7, use 1-815100C1, bar of 117.5 in. in length and cut to 97.5 in.

1шт.

3

815100C1

BAR

rockshaft, 117.50 in, 16 x 7

1шт.

3

BAR, rockshaft, 20 x 6, 18 x 7 and 16 x 8 , use 1-603919R1, bar of 71.50 in. in length and cut to 66.3 in

2шт.

3

603919R1

BAR

rockshaft 71.50 inch in length

1шт.

3

BAR, rockshaft, 24 x 6 and 21 x 7, use 1-603164R1, bar of 94.31 in. in length and cut to 75.8 inch

2шт.

3

BAR, rockshaft, 20 x 8 and 16 x 10, use 1-603164R1, bar of 94.31 in. in length and cut to 81.8 in

2шт.

3

603164R1

ROCKSHAFT

BAR, rockshaft 94.31 inch in length

1шт.

4

603114R1

TRUNNION

rockshaft end, 2 per bar

1шт.

19579R1

SET SCREW

SCREW, 7/16-14 x 7/8 sq-hd cp set, 1 used per trunnion

1шт.

5

815086C1

TRUNNION

rockshaft intermediate, 2 used 20 x 6, 18 x 7 and 16 x 8, 3 used 13 x 7 and 16 x 7, 4 used 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

6

603196R1

CHANNEL

trunnion retaining, 10 used 13 x 7 and 16 x 7, 12 used 20 x 6, 18 x 7 and 16 x 8, 16 used 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

7

23696R1

WASHER

1.844 x 2.750 x .054 pln, 5 used 13 x 7 and 16 x 7, 6 used 20 x 6, 18 x 7 and 16 x 8, 8 used 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

8

22766R1

WASHER

1.406 x 2.250 x .036

1шт.

9

815257C1

ROD

drawbar pivot, 13 x 7

1шт.

9

815258C1

ROD

drawbar pivot, 16 x 7

1шт.

9

815259C1

DRAWBAR

ROD, drawbar pivot, 20 x 6, 18 x 7 and 16 x 8

1шт.

9

815260C1

ROD

drawbar pivot, 24 x 6 and 21 x 7

1шт.

9

815261C1

DRAWBAR

ROD, drawbar pivot, 20 x 8 and 16 x 10

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

10

815262C1

ANGLE

pivot shaft support, 6 used 13 x 7, 7 used 16 x 7, 18 x 7 and 16 x 8, 9 used 20 x 6, 20 x 8 and 16 x 10, 10 used 24 x 6 and 21 x 7

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd, 12 used 13 x 7, 16 x 7, 18 x 7 and 16 x 8, 17 used 20 x 8 and 16 x 10, 18 used 20 x 6, 20 used 24 x 6 & 21 x 7

1шт.

180172

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

1/2-13 x 7/8 hex-hd, 2 used 16 x 7, 18 x 7 and 16 x 8

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

WASHER, 1/2 lock, 1 per bolt

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga flat, 1 used 20 x 6, 2 used 20 x 8 and 16 x 10, 3 used 16 x 7, 18 x 7 and 16 x 8

1шт.

11

815263C1

BAR

support angle spacer, 3 used 16 x 7, 18 x 7 and 16 x 8, 4 used 13 x 7 , 7 used 20 x 6, 20 x 8 and 16 x 10, 8 used 24 x 6 and 21 x 7

1шт.

12

16046D

SPRING

drawbar lock, 1 per furrow opener

1шт.

13

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

drawbar lock, 2 used per furrow opener

1шт.

14

815265C2

ANGLE

F/O spacing LH, 13 x 7

1шт.

14

815266C2

ANGLE

F/O spacing RH, 13 x 7

1шт.

14

815267C2

ANGLE

F/O spacing LH, 16 x 7

1шт.

14

815268C2

ANGLE

F/O spacing RH, 16 x 7

1шт.

14

815269C2

HITCH BRACKET

ANGLE, f/o spacing LH, 18 x 7

1шт.

14

815270C2

HITCH BRACKET

ANGLE, F/O spacing RH, 18 x 7

1шт.

14

815271C2

ANGLE

F/O spacing LH, 20 x 6

1шт.

14

815272C2

ANGLE

F/O spacing RH, 20 x 6

1шт.

14

815273C2

HITCH BRACKET

ANGLE, F/O spacing LH, 24 x 6

1шт.

14

815274C2

HITCH BRACKET

ANGLE, F/O spacing RH, 24 x 6

1шт.

14

815275C2

HITCH BRACKET

ANGLE, F/O spacing LH, 16 x 8

1шт.

14

815276C2

HITCH BRACKET

ANGLE, F/O spacing RH, 16 x 8

1шт.

14

815277C2

HITCH BRACKET

ANGLE, F/O spacing LH, 20 x 8

1шт.

14

815278C2

HITCH BRACKET

ANGLE, F/O spacing RH, 20 x 8

1шт.

14

815279C2

HITCH BRACKET

ANGLE, F/O spacing LH, 16 x 10

1шт.

14

815280C2

HITCH BRACKET

ANGLE, F/O spacing RH, 16 x 10

1шт.

14

816702C2

ANGLE

F/O spacing LH, 21 x 7

1шт.

14

816703C2

ANGLE

F/O spacing RH, 21 x 7

1шт.

15

815281C2

ARM

ASSY, rockshaft lift, 1 per furrow opener

1шт.

16

815284C1

BOLT,3/8" - 16 x 2 1/2"

U-BOLT, lift arm, 1 per arm assy

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flange lock, 2 per u-bolt

1шт.

17

816739C1

BLADE

wheel mud scraper, 13 x 7, 16 x 7, 21 x 7, 20 x 6 and 24 x 6, for drills, Serial Range: shipped-U.K.

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

.406 x 1.000 x .105

4шт.

18

815753C1

CHANNEL

drawbar release

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

1шт.

19

21753R1

WASHER

.781 x 1.500 x .054

2шт.
