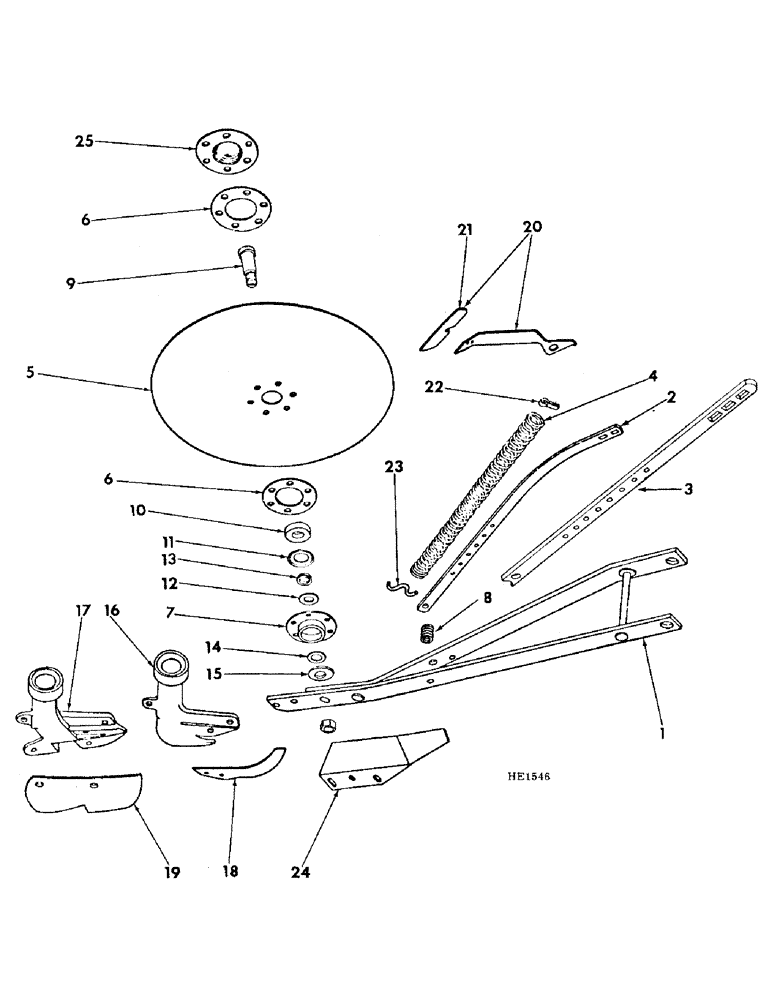

Запчасти Case IH 510 (A-54) - SINGLE DISK FURROW OPENERS, SEALED BALL BEARING CAST BOOT TYPE, MACHINE PRIOR TO 1975 SEASON

1

815470C1

DRAWBAR

ASSY, front rank LH

1шт.

1

815471C1

BAR

DRAWBAR ASSY, front rank RH

1шт.

1

815472C1

DRAWBAR

ASSY, rear rank LH

1шт.

1

815473C1

BAR

DRAWBAR ASSY, rear rank RH, includes 1-106930 rivet, above drawbars for use on deep seeding notched, regular notched or plain landside furrow openers, not for machines, Serial Range: shipped-U.K.

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd

1шт.

1

816748C1

BAR

DRAWBAR ASSY, front rank LH

1шт.

1

816749C1

BAR

DRAWBAR ASSY, front rank RH

1шт.

1

816754C1

BAR

DRAWBAR ASSY, rear rank LH

1шт.

1

816755C1

DRAWBAR

ASSY, rear rank RH, for drills, Serial Range: shipped-U.K.

1шт.

2

815482C1

BAR

pressure spring, for use in deep seeding notched regular notched, or plain landside furrow openers, not for machines, Serial Range: shipped-U.K.

1шт.

2

816756C2

BAR

pressure spring front, for plain landside F.O. for drills, Serial Range: shipped-U.K.

1шт.

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

PIN, 3/8 x 3 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

816757C1

BAR

pressure spring rear, for drills, Serial Range: shipped-U.K.

1шт.

456779R1

PIN

3/8 x 2-5/8 std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

6638

SPRING

pressure, for deep seed notch landside F.O. not for machines, Serial Range: shipped-U.K.

1шт.

4

6626

SPRING

pressure, for reg notched landside F.O., not for machines, Serial Range: shipped-U.K.

1шт.

4

6626

SPRING

pressure, for plain landside F.O., for drills, Serial Range: shipped-U.K.

1шт.

5

603004R2

PLOW DISC

DISK, furrow opener single

1шт.

6

602992R1

GASKET

bearing retainer

2шт.

7

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small solid

6шт.

8

N32176

SPRING

pressure bar location

1шт.

9

602987R1

BOLT

BOLT, disk

1шт.

121358

YOKE

5/8-18 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

1шт.

11

602994R1

FLANGE

seal

1шт.

12

464628R1

SEAL

dirt, replaces 602993R1

1шт.

13

602988R1

SPACER

seal retainer

1шт.

14

591714R1

WASHER

.718 x 1.250 x .054 flat

1шт.

15

21712R1

WASHER

.718 x 1.500 x .105 flat

1шт.

16

603637R91

BOOT

ASSY, front and rear rank LH, includes 1-603630R1, landside. 1-13933R1, rivet and 1-13943R1 rivet, for plain landside F.O.

1шт.

16

603638R91

BOOT

ASSY, front and rear rank RH, includes 1-603631R1, landside, 1-13933R1, drive and 1-13943R1, rivet, for plain landside F.O.

1шт.

17

BOOT ASSY, front rear rank LH, includes 1-603679R1, landside and 2-106913, rivet, for reg notched landside F.O., for service order 1-819191C1, boot and 1-819165C1, deflector

1шт.

17

BOOT ASSY, front and rear rank RH, includes 1-603680R1, landside and 2-106913 rivet, for reg notched landside F.O., for service order 1-819192C1, boot and 1-819166C1, deflector

1шт.

17

BOOT ASSY, front and rear rank LH, includes 1-606154R1, landside and 2-106913, rivet, for deep seed notch landside F.O., for service order 1-819191C1, boot and 1-819165C1, deflector

1шт.

17

BOOT ASSY, front and rear rank RH, includes 1-606155R1, landside and 2-106913, rivet, for deep seed notch landside F.O., for service order 1-819192C1, boot and 1-819166C1, deflector

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage

2шт.

21752R1

WASHER

.406 x 1.500 x .054

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

603630R1

LANDSIDE

plain LH

1шт.

18

603631R1

SHOE

LANDSIDE, plain RH

1шт.

13933R1

RIVET,Countersunk, 4.75mm OD x 12.7mm L

3/16 x 1/2 74 deg csk-hd

1шт.

13943R1

RIVET,Csk, 3/16" x 5/8"

3/16 x 5/8 74 deg csk-hd

1шт.

19

603679R1

LANDSIDE

regular notched LH

1шт.

19

603680R1

LANDSIDE

regular notched RH

1шт.

19

606154R1

LANDSIDE

deep seeding notched LH

1шт.

19

606155R1

LANDSIDE

deep seeding notched RH

1шт.

106913

RIVET,Truss Hd, 5/16" x 5/8"

5/16 x 5/8 truss-hd

2шт.

20

603620R11

BLADE

SCRAPER ASSY, single disk LH, includes 1-W7008, blade and 2-106883, rivet

1шт.

20

603621R11

PACKAGE

SCRAPER ASSY, single disk RH, includes 1-W7008, blade and 2-106883, rivet

1шт.

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

PIN, 3/8 x 3 std-hd dld

1шт.

103884

PLUG,Slotted, 1/4" NPT

PIN, 1/8 x 3/4 cotter

1шт.

21

W7008

BLADE

disk scraper

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

22

605964R1

CLIP

special flat cotter, 1 used per pressure spring bar

1шт.

23

F6366

LOCK

pressure spring

1шт.

24

816740C1

GUARD

DEFLECTOR. LH rear furrow opener dirt

1шт.

24

816741C1

GUARD

DEFLECTOR, RH rear furrow opener dirt

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage, for drills shipped to U.K.

2шт.

21752R1

WASHER

.406 x 1.500 x .054

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

25

602990R1

CAP

disk

1шт.

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL, single, consists of ref 5, 6, 7, 9, 10, 11 & 25

1шт.
