Запчасти Case IH 510 (A-52) - BROME SEED DRIVE, WITHOUT GRASS SEED, PRIOR TO 1978 SEASON

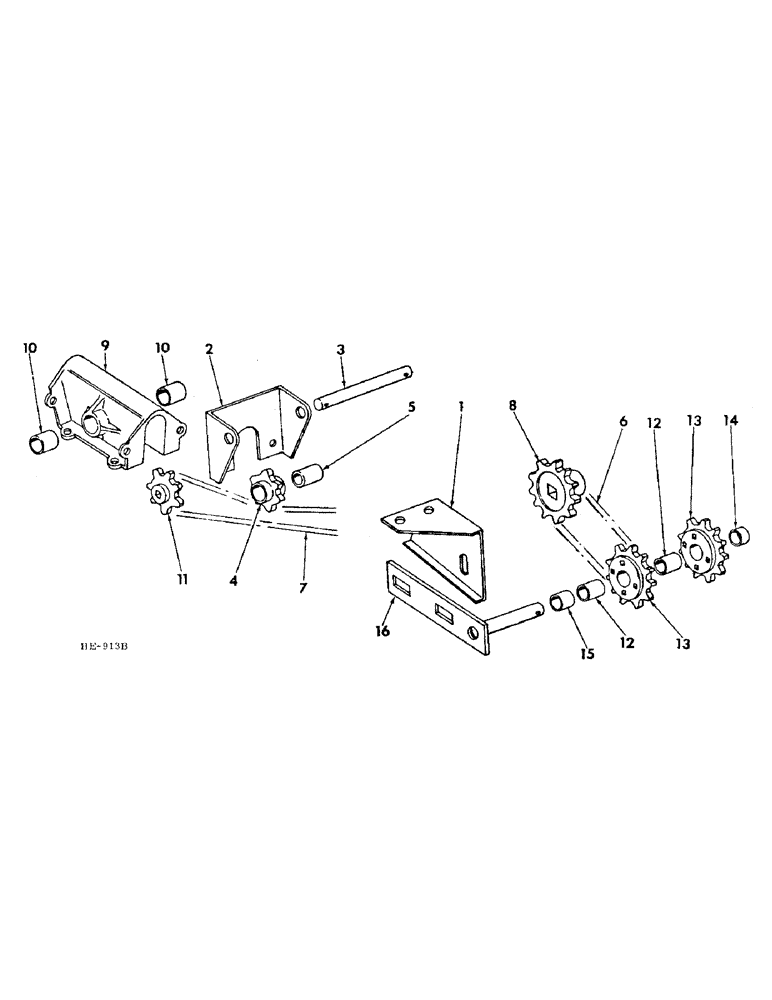

Схема запчастей Case IH 510 - (A-52) - BROME SEED DRIVE, WITHOUT GRASS SEED, PRIOR TO 1978 SEASON
3
7
13
11
6
10
10
13
9
12
8
1
4
15
14
16
5
2
12

Артикул

Название

Примечание

Количество

1

815638C1

BRACKET

SUPPORT, chain tightener bracket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, (bolt used per support)

1шт.

120377

NUT,3/8" - 16, Gr 5

(used per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , per bolt 3/8"

1шт.

2

815699C1

SUPPORT, chain tightener

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd, (bolts used per support)

2шт.

120376

NUT,5/16"-18, G5

(used per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (used per bolt) 5/16"

1шт.

3

815700C1

PIN

idler sprocket

1шт.

4

815645C11

SPROCKET

ASSY, chain tightener, includes 1-603328R1, bushing

1шт.

5

603328R1

BUSHING

sprocket

1шт.

6

CHAIN ASSY, brome seed drive, for service order 1-CS 25, 10 foot roll on no. 25 steel chain and reduce to 26 links

1шт.

7

CHAIN ASSY, brome seed driven, for service order 1-CS 25, 10 foot roll of no. 25 steel chain and reduce to 62 links

1шт.

8

815324C1

DRIVE SPROCKET

SPROCKET, grain feed shaft brome drive

1шт.

9

815671C11

GUARD

ASSY, brome seed driven sprocket and chain, includes 2-598055R1, bushing

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd, 8 bolts used per guard

8шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8hex-hd 2 per guard

1шт.

120376

NUT,5/16"-18, G5

(used per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (used per bolt) 5/16"

1шт.

10

598055R1

DRIVE BUSHING

BUSHING, brome seed guard

2шт.

11

603735R1

DRIVEN SPROCKET

SPROCKET, brome seed driven 7T

1шт.

12

298025R1

BUSHING,15.93mm ID x 19.13mm OD x 19.05mm L

chain tightener sprocket for service w/grey iron chain tightener sprocket

1шт.

13

SPROCKET ASSY, chain tight 10T-cast, includes 2-298025R1, bushing order 1-819949C1 sprocket & 1-816340C2 bracket

1шт.

13

819949C1

DRIVE SPROCKET

SPROCKET, chain tightener 10T-sintered metal

2шт.

598800R1

BOLT,Short NK, 1/4"-20 x 2", G5

1/4-20 x 2 carriage

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

14

590750R1

SPACER

chain tightener sprocket outer

1шт.

15

PO15237

SPACER

chain tightener sprocket inner

1шт.

16

816340C2

BRACKET

ASSY, drive chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

Выбрано товаров: 36
