Запчасти Case IH 510 (A-50) - BROME SEED DRIVE, MACHINE WITH HIGH FRONT MOUNTED GRASS SEED ATTACHMENT, BUILT 1973 SEASON AND SINCE

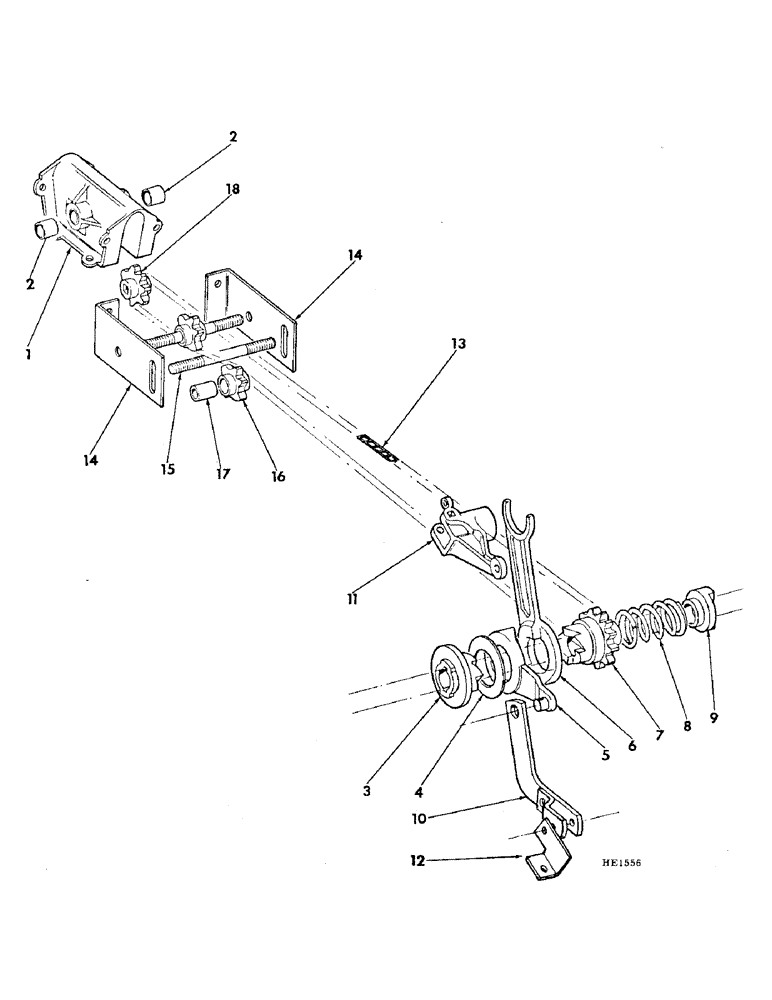

Схема запчастей Case IH 510 - (A-50) - BROME SEED DRIVE, MACHINE WITH HIGH FRONT MOUNTED GRASS SEED ATTACHMENT, BUILT 1973 SEASON AND SINCE
14
3
11
6
17
12
15
4
2
18
14
9
5
8
16
10
13
7
2
1

Артикул

Название

Примечание

Количество

1

815671C11

GUARD

ASSY, brome seed driven sprocket and chain, includes 2-598055R1, bushing

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd, (bolts used per guard)

4шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd 2 per guard

1шт.

120376

NUT,5/16"-18, G5

(used per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (used per bolt) 5/16"

1шт.

2

598055R1

DRIVE BUSHING

BUSHING, brome seed guard, (per guard assy)

2шт.

3

819023C1

COLLAR

CLUTCH

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

4

603265R1

WASHER

brome drive clutch

1шт.

5

603133R1

CAM

clutch throw-out

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg lub

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

6

819025C1

CAM

clutch fixed

1шт.

7

819024C1

DRIVE SPROCKET

SPROCKET, clutch drive 10T

1шт.

8

35AC

SPRING

clutch drive

1шт.

9

818093C1

COLLAR

clutch spring

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

10

819305C1

LINKAGE

LINK, clutch shifter connecting

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick-attachable cotter

1шт.

11

603132R1

ARMATURE

CAM, clutch shifter

1шт.

815154C1

BOLT,5/16" x 2 1/4", Gr 5

5/16-18 x 2-1/4 carriage

1шт.

S3631/2

PIN

3/8 x 1-1/4 std-hd dld

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

12

818097C1

ANGLE

clutch lock-out

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

CHAIN ASSY, brome drive, for service order 1-CS 25, 10 foot roll of no. 25 steel chain and reduce to 82 links

1шт.

14

818095C1

SUPPORT

chain tightener LH

1шт.

14

818096C1

SUPPORT

chain tightener RH

1шт.

15

818094C1

STUD

chain tightener idler

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

.531 x 1.250 x 090

4шт.

16

815645C11

SPROCKET

ASSY, chain tightener, includes 1-603328R1, bushing

2шт.

17

603328R1

BUSHING

sprocket

2шт.

18

603735R1

DRIVEN SPROCKET

SPROCKET, brome seed driven 7T

1шт.

Выбрано товаров: 40
