Запчасти Case IH 510 (A-48) - GRASS AND BROME SEED DRIVE, MACHINES WITH LOW REAR MTD. GRASS SEED AND LOW REAR MTD. BROME SEED

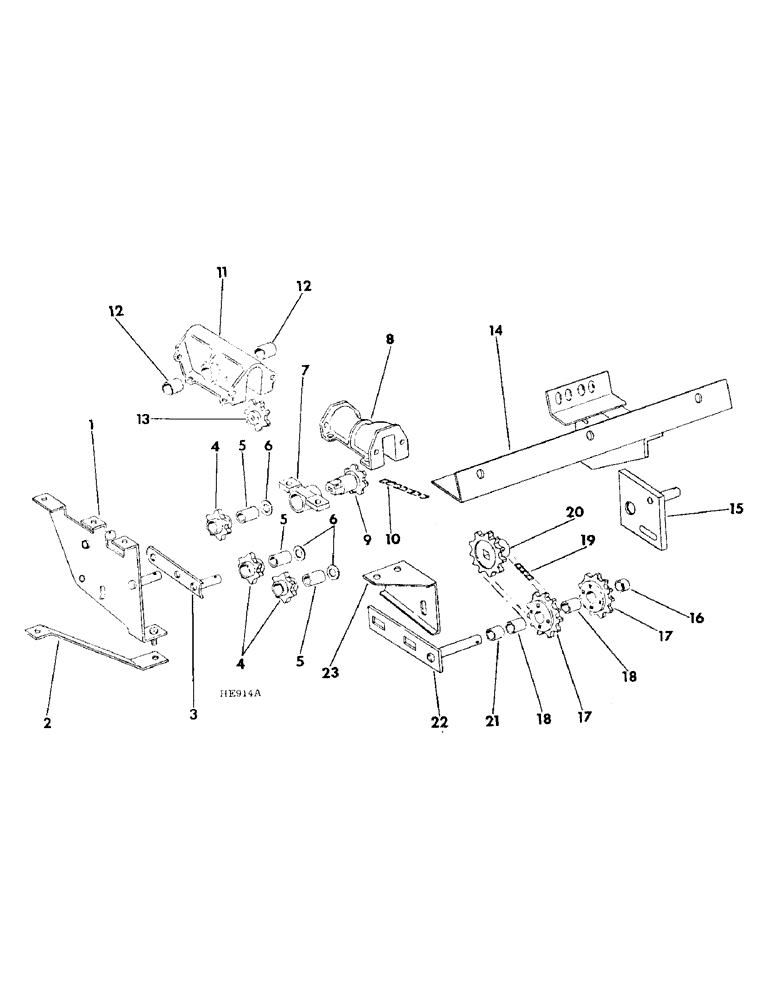

Схема запчастей Case IH 510 - (A-48) - GRASS AND BROME SEED DRIVE, MACHINES WITH LOW REAR MTD. GRASS SEED AND LOW REAR MTD. BROME SEED
9
15
23
22
7
14
5
4
12
17
2
5
3
18
11
19
10
5
18
20
12
16
4
6
17
9
13
21
6
1

Артикул

Название

Примечание

Количество

1

815701C1

SUPPORT

ASSY, chain tightener, 1 per drive

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd, 3 bolts used per support

3шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

178373R1

WASHER

.531 x 1.000 x .056. 2 washer used per support

2шт.

21496R1

WASHER

.344 x .750 x .105, 2 washer used per support

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 2 per support 3/16" x 1"

2шт.

2

815703C1

SUPPORT, chain tightener bracket LH, 20 x 6 and 24 x 6

1шт.

2

815703C1

SUPPORT, chain tightener bracket RH, 20 x 6, 24 x 6, 18 x 7 and 21 x 7

1шт.

2

815704C1

SUPPORT

chain tightener bracket LH, 18 x 7 and 21 x 7

1шт.

2

815704C1

SUPPORT

chain tightener bracket, 13 x 7 and 16 x 7

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

815705C1

ARM

chain tightener, 1 per drive

1шт.

178373R1

WASHER

.531 x 1.000 x .056, 1 washer used per arm

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per arm 3/16" x 1"

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 bolts used per arm

2шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

4

815645C11

SPROCKET

ASSY, chain tightener, includes 1-603328R1, bushing 3 per drive

3шт.

5

603328R1

BUSHING

chain tightener sprocket, 1 per sprocket

1шт.

6

178373R1

WASHER

.531 x 1.000 x .056, 1 per sprocket

1шт.

7

BEARING, grass seed feed shaft driven sprocket, 1 per drive, prior to the 1970 season order 1-816533C1, bearing and 1-816532C1, guard

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd, 2 bolts used per bearing

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

7

816533C1

BRACKET

BEARING, grass seed feed shaft driven sprocket, 1 per drive, machines built 1970, 1972

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2 bolts used per bearing Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

8

GUARD, grass seed driven chain, 1 per drive, prior to the 1970 season order 1-816533C1, bearing and 1-816532C1, guard

1шт.

8

816532C1

GUARD

grass seed driven chain, machines built 1970-1972

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 4 bolts used per guard

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd, 2 bolts used per guard

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

9

NA1475

DRIVE SPROCKET

SPROCKET, grass feed shaft drive 7T, 1 per drive

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), , 1 pin used per sprocket 3/16" x 3/4"

1шт.

10

CHAIN ASSY, low rear mounted grass and brome seed driven, 1 per drive, for service order 1CS25, 10 foot roll of steel chain and reduce to 91 links

1шт.

11

815671C11

GUARD

ASSY, brome seed driven sprocket and chain, includes 2-598055R1, bushing, 1 per drive

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd, 8 bolts used per guard

8шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd, 2 per guard

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

12

598055R1

DRIVE BUSHING

BUSHING, brome seed guard, 2 per guard assy

2шт.

13

603735R1

DRIVEN SPROCKET

SPROCKET, brome seed driven 7T, 1 per drive

1шт.

14

816887C1

BRACKET

ASSY, tightener sprocket LH, 13 x 7, 16 x 7, 20 x 6, 24 x 6, 18 x 7 and 21 x 7, machines built 1972 season

1шт.

14

816888C1

BRACKET

ASSY, tightener sprocket RH, 20 x 6, 24 x 6, 18 x 7 and 21 x 7, machines built 1972 season

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd

2шт.

180088

SPRING

BOLT, 1/2-13 x 2-3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

816891C1

SUPPORT

ASSY, tightener sprocket, 1 per drive

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage, 1 bolt used per support

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage, 1 bolt used per support

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

20830R1

WASHER

.406 x 1.000 x .105, 1 washer used per support

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 per support 1/8" x 1"

1шт.

16

590750R1

SPACER

chain tightener sprocket outer, 1 per bracket assy

1шт.

17

SPROCKET ASSY, chain tight 10T-cast, includes 2-298025R1, bushing order 1-819949C1, sprocket & 1-816340C2 bracket

1шт.

17

819949C1

DRIVE SPROCKET

SPROCKET, chain tightener 10T sintered metal 2 per drive

2шт.

598800R1

BOLT,Short NK, 1/4"-20 x 2", G5

1/4-20 x 2 carriage, 2 bolts used per 2 sprockets

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

18

298025R1

BUSHING,15.93mm ID x 19.13mm OD x 19.05mm L

chain tightener sprocket, per grey iron sprocket, for service w/grey iron chain tightener sprocket

1шт.

19

CHAIN ASSY, grass & brome seed drive, for service order 1-CS25, 10 foot roll of no. 25 steel chain and reduce to 26 links, 1 per drive

1шт.

20

815324C1

DRIVE SPROCKET

SPROCKET, grain feed shaft grass and brome seed drive, 1 per drive

1шт.

21

PO15237

SPACER

chain tightener sprocket inner, 1 per drive

1шт.

22

816340C2

BRACKET

ASSY, drive chain tightener, 1 per drive

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage, 1 bolt used per bracket

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage, 1 bolt used per bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105, 1 washer used per bracket

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 per bracket 1/8" x 1"

1шт.

23

815638C1

BRACKET

SUPPORT, chain tightener bracket, 1 per drive

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd, 2 bolts used per support

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.
