Запчасти Case IH 510 (A-46) - BROME SEED FEED MECHANISM

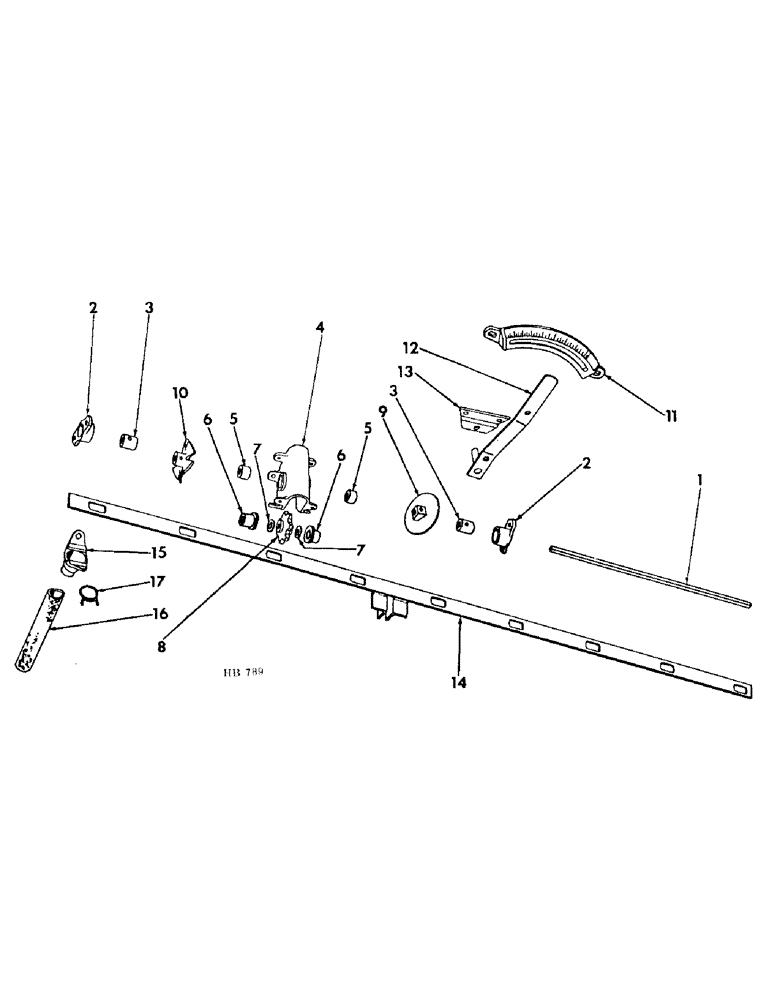

Схема запчастей Case IH 510 - (A-46) - BROME SEED FEED MECHANISM
3
14
13
4
3
5
6
12
10
17
9
8
7
2
2
15
6
11
7
1
2
16

Артикул

Название

Примечание

Количество

1

815667C1

SHAFT

BAR, feed shaft, 13 x 7

1шт.

1

815668C1

BAR

feed shaft, 16 x 7

1шт.

1

815669C1

SHAFT

BAR, feed shaft, 20 x 6 and 18 x 7

2шт.

1

815670C1

SHAFT

BAR, feed shaft, 24 x 6 and 21 x 7

2шт.

2

603733R1

BRACKET

feed shaft bar bearing, 5 used 13 x 7 and 16 x 7, 6 used 20 x 6 and 18 x 7, 8 used 24 x 6 & 21 x 7

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10 used 13 x 7 and 16 x 7, 8 used 20 x 6 and 18 x 7, 12 used 24 x 6 & 21 x 7 Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2 used 20 x 6, 24 x 6, 18 x 7 & 21 x 7 Hex, 1/4"-20 x 1", G5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

3

603734R1

COLLAR

bearing bracket, 1 per bracket

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup-pt-set, 1 used per collar

1шт.

4

815671C11

GUARD

ASSY, drive chain, includes 2-598055R1, bushing, 1 per drive

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd, 4 bolt used per guard

4шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd, 2 per guard

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

5

598055R1

DRIVE BUSHING

BUSHING, guard bushing, 2 used per guard

2шт.

6

815672C1

BUSHING

guard flanged bushing, 2 used per guard

2шт.

7

20744R1

WASHER, 11/32 sq x 7/8 x 16 ga C-Z, 1 used per 815672C1, bushing

1шт.

8

603735R1

DRIVEN SPROCKET

SPROCKET, feed shaft driven 7T, 1 per brome feed

1шт.

9

WHEEL, agitator, prior to 1974 season, order 1-819323C1, wheel and 1-173394, screw, 12 used 13 x 7, 15 used 16 x 7, 17 used 18 x 7, 19 used 20 x 6, 20 used 21 x 7 and 23 used 24 x 6

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt-set, 1 used per wheel

1шт.

9

819323C1

DISC

WHEEL, agitator machines built 1974 & since, 10 used 13 x 7, 13 used 16 x 7, 14 used 18 x 7, 16 used 20 x 6, 17 used 21 x 7 and 20 used 24 x 6

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-14 x 1/2 hex-hd type B tap, 1 used per wheel

1шт.

10

603738R1

WHEEL, feed, prior to 1974 season, 1 per brome feed

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt-set, 1 used per wheel

1шт.

10

819324C1

FAN

WHEEL, feed machines built 1974 & since, 1 per brome feed

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-14 x 1/2 hex-hd type B tap, 1 used per wheel

1шт.

11

815673C1

INDICATOR

feed, 1 per drive

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 2 bolt used per indicator

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

12

815674C91

LEVER

ASSY, feed indicator, includes 1-815675C1, bracket and 1-104109, rivet, 1 per drive

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage, 1 bolt used per lever

1шт.

7500032

BUSHING

NUT, 5/16-18 wing, 1 used per bolt

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

13

815675C1

BRACKET

indicator pivot, 1 per drive

1шт.

86982759

RIVET,But Hd, 3/8" x 1/2"

1 rivet used per bracket But Hd, 3/8" x 1/2"

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd, 2 bolt used per bracket

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

14

815678C1

SLIDE

ASSY, feed regulator, 13 x 7

1шт.

14

815679C1

SLIDE

ASSY, feed regulator, 16 x 7

1шт.

14

815680C1

SLIDE

ASSY, feed regulator, 18 x 7

2шт.

14

815681C1

SLIDE ASSY, feed regulator, 20 x 6

2шт.

14

815682C1

SLIDE ASSY, feed regulator, 24 x 6

2шт.

14

816694C1

SLIDE

ASSY, feed regulator LH, 21 x 7

1шт.

14

816695C1

SLIDE

ASSY, feed regulator RH, 21 x 7

1шт.

15

815687C1

CUP

brome feed, 1 per brome feed

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4-20 x 1/2 crg, 2 per cup

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

16

603794R1

TUBE,10.75" Length

brome seed, 1 per brome feed

1шт.

17

603743R1

CLAMP

seed tube, 1 per brome feed

1шт.

Выбрано товаров: 54
