Запчасти Case IH 510 (A-44) - BROME SEED HOPPER UNIT

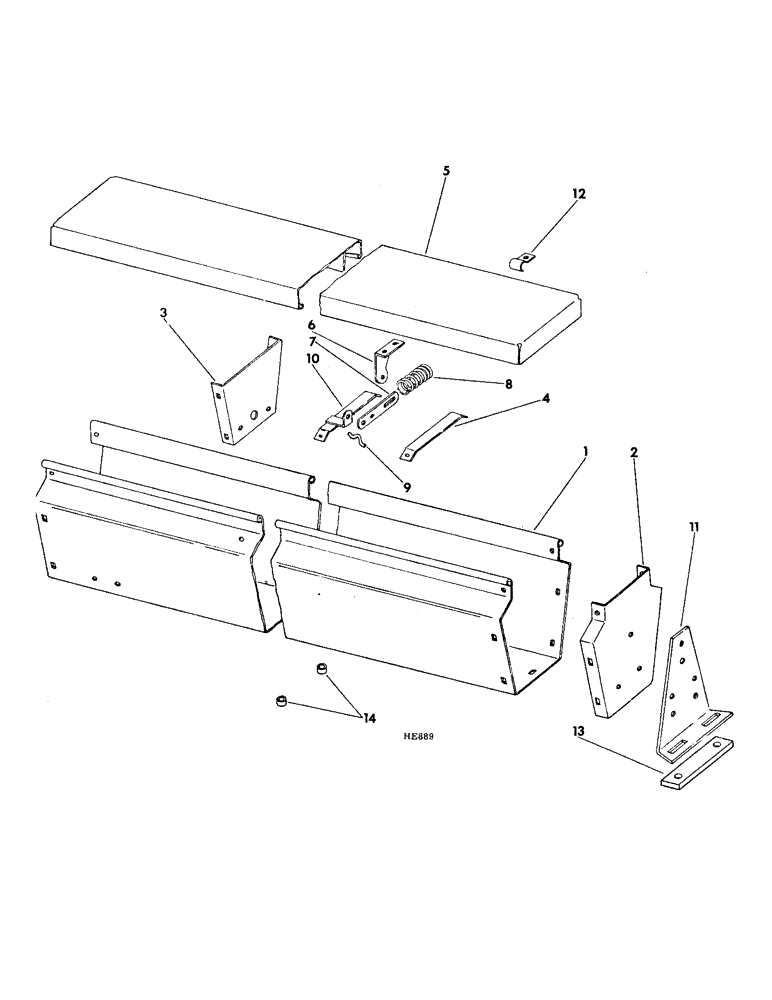

Схема запчастей Case IH 510 - (A-44) - BROME SEED HOPPER UNIT
6
12
5
7
14
8
13
2
3
9
11
1
10
4

Артикул

Название

Примечание

Количество

1

815665C1

HOPPER

brome seed, 20 x 6

1шт.

1

815666C1

HOPPER, brome seed, 24 x 6

1шт.

1

816693C1

HOPPER

brome seed, 21 x 7

1шт.

1

815662C1

HOPPER

brome seed, 13 x 7

1шт.

1

815663C1

HOPPER

brome seed, 16 x 7

1шт.

1

815664C1

HOPPER

brome seed, 18 x 7

1шт.

2

815596C1

PANEL, SIDE

END, hopper

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 carriage

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

3

815597C1

PLATE

BAFFLE, hopper, 3 used 20 x 6, 13 x 7, 16 x 7 and 18 x 7, 5 used 24 x 6 nd 21 x 7

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 carriage, 4 bolt used per baffle

4шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

4

815599C1

BRACKET

BRACE, hopper, 2 used 13 x 7 and 16 x 7, 4 used 20 x 6, 24 x 6, 18 x 7 and 21 x 7

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd, 1 bolt used per brace

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 1 bolt used per brace

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

5

815602C1

COVER

ASSY, hopper, 20 x 6 and 18 x 7

1шт.

5

815600C1

COVER

ASSY, hopper, 13 x 7

1шт.

5

815601C1

COVER

ASSY, hopper, 16 x 7

1шт.

5

815603C1

COVER

ASSY, hopper, 24 x 6 and 21 x 7

1шт.

6

815615C1

SUPPORT

BRACKET, cover spring

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

N32052

BAR

cover spring plunger

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x .042

1шт.

8

6628

SPRING

plunger

1шт.

9

N32114

LINCH PIN

LOCK, spring

1шт.

10

815616C1

BRACKET

ASSY, cover

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x .042

1шт.

11

815656C1

SUPPORT

hopper end

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 type 5 crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

12

815618C1

CLAMP

cover hinge, 5 used 13 x 7 and 16 x 7, 7 used 18 x 7, 20 x 6, 24 x 6 and 21 x 7

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

12

815618C1

CLAMP

cover hinge, 5 used 13 x 7 and 16 x 7, 7 used 18 x 7, 20 x 6, 24 x 6 and 21 x 7

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

13

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

brome hopper support, machines prior to 1973, for use on machines when brome hopper used in combination w/low rear mounted grass seed hopper

4шт.

13

815707C1

BAR

brome box support

2шт.

14

60616H

WASHER

hopper spacer

4шт.

Выбрано товаров: 61
