Запчасти Case IH 510 (A-42) - GRASS SEED DRIVE, LOW REAR MOUNTED TYPE

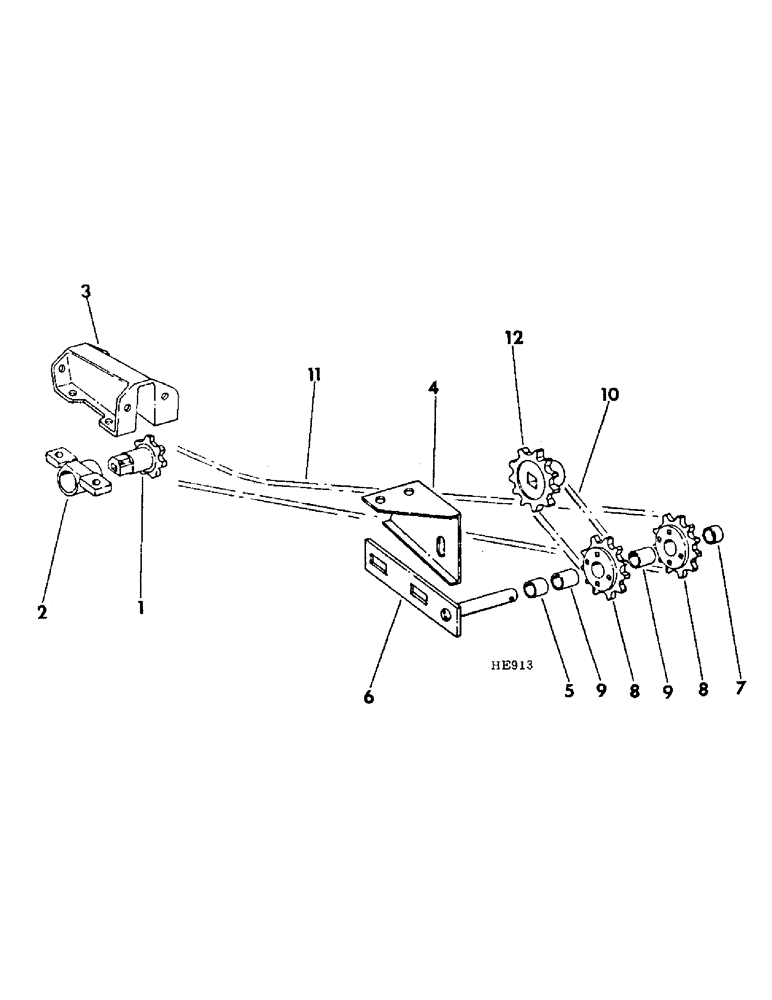

Схема запчастей Case IH 510 - (A-42) - GRASS SEED DRIVE, LOW REAR MOUNTED TYPE
9
9
11
8
3
7
4
8
10
5
6
12
2
1

Артикул

Название

Примечание

Количество

Copy and illustration is for one drive one drive used on 13 x 7 & 16 x 7 tow drives used on 20 x 6, 24 x 6, 18 x 7, use on 21 x 7, prior to 1976, use on 16 x 8, 20 x 8, 16 x 10, Serial Range: prior-1973

1шт.

1

NA1475

DRIVE SPROCKET

SPROCKET, grass seed feed driven 7T

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

2

BEARING, driven sprocket machines prior to 1970 order 1-816533C1, bearing and 1-816532C1, guard

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd, 2 used per bearing

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

2

816533C1

BRACKET

BEARING, sprocket machines built 1970 & since

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2 bolts used per bearing Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

3

GUARD, driven chain, machines prior to 1970 order 1-816533C1, bearing and 1-816532C1, guard

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 4 bolts used per guard

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 hex-hd, 2 bolts used per guard

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

3

816532C1

GUARD

driven chain, machines built 1970 & since

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 4 bolts used per guard

4шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

4

815638C1

BRACKET

SUPPORT, chain tightener bracket

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd, 2 bolts used per support

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

5

PQ15237

SPACER, tightener sprocket inner

1шт.

6

816340C2

BRACKET

ASSY, drive chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

7

590750R1

SPACER

tightener sprocket outer

1шт.

8

SPROCKET ASSY, chain tight 10T, cast, includes 2-298025R1 bushing order 1-819949C1, sprocket & 1-816340C2 , bracket

1шт.

8

819949C1

DRIVE SPROCKET

SPROCKET, chain tightener 10T, sintered metal, 2 per drive

2шт.

598800R1

BOLT,Short NK, 1/4"-20 x 2", G5

1/4-20 x 2 carriage, sprockets together

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

9

298025R1

BUSHING,15.93mm ID x 19.13mm OD x 19.05mm L

tightener sprocket for service w/grey iron chain tight sprocket

2шт.

10

CHAIN, grass seed drive, for service order 1-CS25, 10 foot roll of no. 25 steel chain and reduce to 26 links

1шт.

11

CHAIN, grass seed driven, for service order 1-CS25, 10 foot roll of 25 steel chain and reduce to 62 links

1шт.

12

815324C1

DRIVE SPROCKET

SPROCKET, grass seed drive 10T, on main hopper feed shaft

1шт.
