Запчасти Case IH 510 (A-40) - GRASS SEED HOPPER UNIT, LOW REAR MOUNTED TYPE

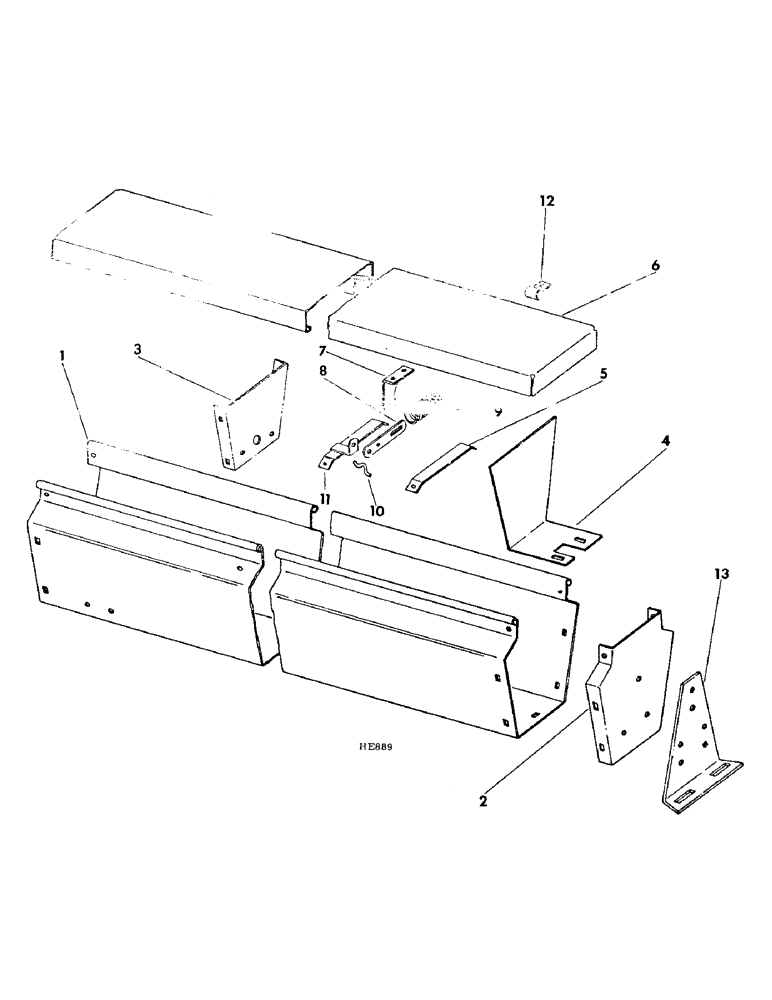

Схема запчастей Case IH 510 - (A-40) - GRASS SEED HOPPER UNIT, LOW REAR MOUNTED TYPE
6
8
12
10
4
3
5
11
1
7
13
2

Артикул

Название

Примечание

Количество

1

815588C2

HOPPER

grass seed, 13 x 7

1шт.

1

815589C3

HOPPER

grass seed, 16 x 7

1шт.

1

351156A1

HOPPER

BOX ASSY GRASS SEED 18 X 7 LRM

1шт.

1

351160A1

HOPPER

BOX ASSY GRASS SEED 20 X 6 HFM

1шт.

1

351157A1

HOPPER

BOX ASSY GRASS SEED 24 X 7 LRM

1шт.

1

816688C2

HOPPER

grass seed, 21 x 7

1шт.

1

815593C2

HOPPER

grass seed, 16 x 8

1шт.

1

815594C1

HOPPER

grass seed, 20 x 8

1шт.

1

815595C1

HOPPER

grass seed, 16 x 10

1шт.

2

815596C1

PANEL, SIDE

END, hopper

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 pan-hd

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 carriage

12шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

3

815597C1

PLATE

BAFFLE, hopper, 2 used 13 x 7, 16 x 7, 18 x 7, 21 x 7, 20 x 6, 24 x 6 and 16 x 8, 4 used 20 x 8 and 16 x 10

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 carriage, 4 bolt used per baffle

4шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

4

815598C1

BAFFLE

grass seed, 4 used 13 x 7 and 16 x 7, 5 used 18 x 7, 16 x 8 and 16 x 10, 6 used 20 x 6, 20 x 8 and 21 x 7, 7 used 24 x 6

1шт.

5

815599C1

BRACKET

BRACE, hopper, 2 used 13 x 7 and 16 x 7, 4 used 20 x 6, 24 x 6 18 x 7, 21 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd, 1 bolt used per brace

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd, 1 bolt used per brace

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

6

815600C1

COVER

ASSY, hopper, 13 x 7

1шт.

6

815601C1

COVER

ASSY, hopper, 16 x 7

1шт.

6

815602C1

COVER

ASSY, hopper, 18 x 7, 20 x 6 & 16 x 8

1шт.

6

815603C1

COVER

ASSY, hopper, 24 x 6 and 21 x 7

1шт.

6

815604C1

COVER

ASSY, hopper, 20 x 8 and 16 x 10

1шт.

7

815615C1

SUPPORT

BRACKET, cover spring

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

N32052

BAR

cover spring plunger

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x .042

1шт.

9

6628

SPRING

plunger

1шт.

10

N32114

LINCH PIN

LOCK, spring

1шт.

11

815616C1

BRACKET

ASSY, cover

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x .042

1шт.

12

815618C1

CLAMP

cover hinge, 5 used 13 x 7 and 16 x 7, 7 used 20 x 6, 24 x 6, 18 x 7, 21 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

815656C1

SUPPORT

hopper end

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

4шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120376

NUT,5/16"-18, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 59
