Запчасти Case IH 510 (A-36) - GRASS SEED FEED MECHANISM

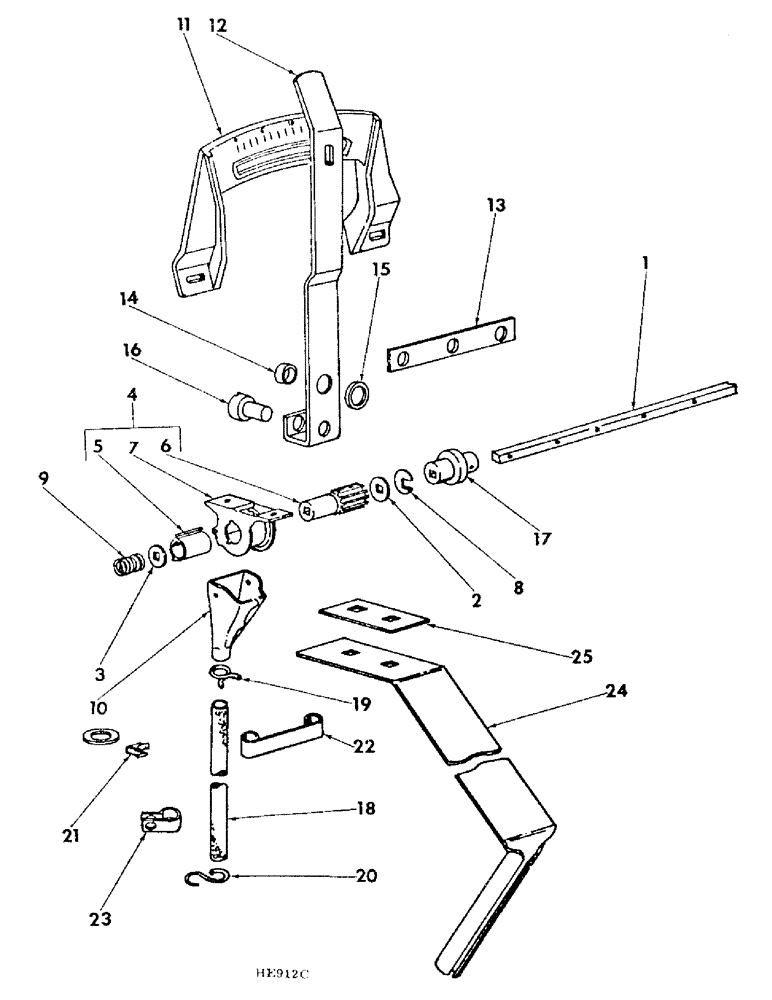

Схема запчастей Case IH 510 - (A-36) - GRASS SEED FEED MECHANISM
21
14
10
17
7
11
4
5
25
16
12
6
3
24
18
19
1
13
2
20
15
23
22
8

Артикул

Название

Примечание

Количество

1

815619C1

DRIVE SHAFT

BAR, feed shaft, 13 x 7

1шт.

1

815620C1

DRIVE SHAFT

BAR, feed shaft, 16 x 7

1шт.

1

815621C1

DRIVE SHAFT

BAR, feed shaft, 18 x 7

2шт.

1

815622C1

DRIVE SHAFT

BAR, feed shaft, 20 x 6

2шт.

1

815623C1

DRIVE SHAFT

BAR, feed shaft, 24 x 6

2шт.

1

815624C1

DRIVE SHAFT

BAR, feed shaft, 16 x 8

2шт.

1

815625C1

DRIVE SHAFT

BAR, feed shaft, 20 x 8

2шт.

1

815626C1

DRIVE SHAFT

BAR, feed shaft, 16 x 10

2шт.

1

816689C1

DRIVE SHAFT

BAR, feed shaft LH, 21 x 7

1шт.

1

816690C1

DRIVE SHAFT

BAR, feed shaft RH, 21 x 7

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), , 2 cotter used per feed cup 1/8" x 1/2"

2шт.

2

23051R1

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

.344 sq hole x .750 x .016

1шт.

3

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

.344 sq x .750 x .054, 1 per grass feed

1шт.

4

600924R92

CUP ASSY.

CUP ASSY, grass seed, includes 1-600923R2, thimble, 1-601463R1, roll and 1-615750R92, cup assy, 1 per grass feed

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd, 2 used per feed cup

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per screw 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per screw 1/4"

1шт.

5

600923R2

BLOCK

THIMBLE, feed cup cut off, 1 used per feed cup assy

1шт.

6

601463R1

FINGER ASSY.

ROLL, feed, 1 used per feed cup assy

1шт.

7

615750R92

SUPPORT ASSY.

CUP ASSY, feed, 1 used per feed cup assy

1шт.

8

N32109

WASHER

11/32 sltd-hole x 7/8 x 26 ga

1шт.

9

N32176

SPRING

feed roll, 1 used per feed cup assy

1шт.

10

603817R1

TUBE

TOP, grass seed tube, 1 used per feed cup assy

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , 1 used per tube top 1/8" x 1 3/4"

1шт.

11

815627C1

INDICATOR

grass box feed, 1 per grass drive

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 bolts used per indicator

2шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

12

815628C1

LEVER

shifter, 1 per indicator

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 1 bolt used per lever

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 type 5 crg, 1 bolt used per lever

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

7500032

BUSHING

NUT, 5/16-18 wing, 1 used per bolt

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

13

815629C1

BAR

reinforcing, 1 per lever

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 used per reinforcing bar

2шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga, 1 washer used per 180122, bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

14

2551F

WASHER

lever pivot, 1 per lever

1шт.

15

151401C1

BELLEVILLE WASHER

WASHER, Bellville, 1 per lever, machines built 1971 & since

1шт.

16

815630C1

PIN,25.4mm OD x 42.16mm L

feed shifter, 1 per lever

1шт.

17

819227C1

SLEEVE

feed shifter, 1 per grass drive

1шт.

104056

RIVET

1/8 x 7/8 rd-hd, 1 per sleeve

1шт.

18

609398R2

TUBE,12.95 mm ID, 1397 mm Length

seed, high frt mtd grass seed attach, 1 per grass feed, low rear mtd grass seed attach, 16 used on 16 x 7

1шт.

18

603881R2

TUBE,12.95 mm ID, 609 mm Length

grass seed, for use on low rear mounted grass seed hopper only, except 16 x 7

1шт.

19

603699R2

CLAMP

seed tube top, 1 used per feed cup assy

1шт.

20

603882R1

HOOK

seed tube lower, high frt mtd grass seed attach, 1 used per feed cup assy

1шт.

21

819193C1

SPRING CLIP

CLAMP, tube U, high frt mtd grass seed attach, 1 used per feed cup assy, machines built april 1975 & since

1шт.

22815R1

WASHER

.906 x 1.250 x .027, 1 washer used per feed tube

1шт.

22

HOLDER, seed tube, high frt mtd grass seed attach, 5 used 13 x 7 7 used 16 x 7, 16 x 8 and 16 x 10, 8 used 18 x 7 and 21 x 7, 9 used 20 x 6 and 20 x 8, 11 used 24 x 6 order 2-819193C1, clamp and 1-22815R1, washer

1шт.

23

CLAMP, grass seed tube outer, order 1-819193C1, clamp and 1-22815R1, washer

2шт.

24

815689C1

HOLDER

band seed tube, high frt mtd grass seed attach, 1 used per feed cup assy

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage, 2 bolts used per holder

2шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

25

815690C1

PLATE

BAR, holder mounting, high frt mtd grass seed attach, 1 used per feed cup assy

1шт.

Выбрано товаров: 58
