Запчасти Case IH 510 (A-35) - GRAIN AGITATOR

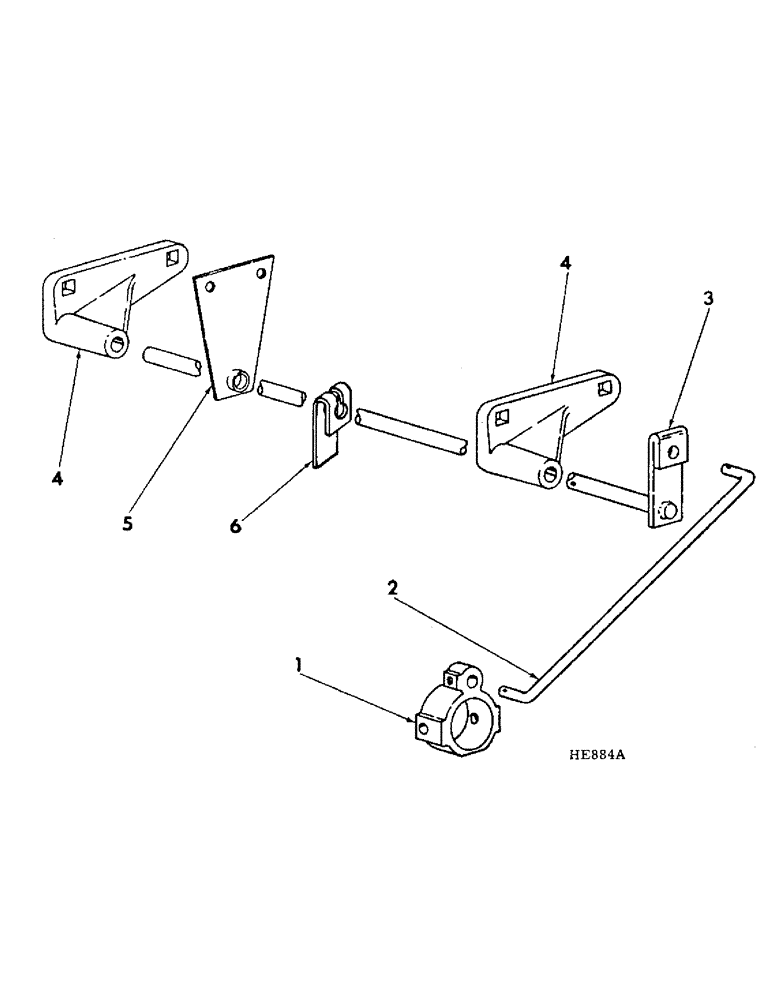

Схема запчастей Case IH 510 - (A-35) - GRAIN AGITATOR
4
2
1
3
4
6
5

Артикул

Название

Примечание

Количество

1

815779C1

CRANK

agitator

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-30 deg elbow lub

1шт.

U5357

HEADED PIN,3/8" x 2 5/8"

PIN, 3/8 x 2-5/8 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

815780C1

ROD

agitator crank

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

3

ROD ASSY, agitator, 13 x 7, order 1-815898C1, rod assy and cut to 98.25 inches in length

1шт.

3

ROD ASSY, agitator, 16 x 7, order 1-815898C1, rod assy and cut to 118.25 inches in length

1шт.

3

815898C1

ROD

ASSY, agitator, 20 x 6, 18 x 7 & 16 x 8

1шт.

3

ROD ASSY, agitator, 24 x 6 and 21 x 7, order 1-815781C1, rod assy and cut to 151.25 inches in length

1шт.

3

815781C1

ROD

ASSY, agitator, 20 x 8 and 16 x 10

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

178373R1

WASHER

.531 x 1.000 x .054

1шт.

4

815784C1

BEARING HOUSING

BEARING, agitator rod

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

5

815785C1

SUPPORT

agitator rod

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

FINGER, agitator rod, 1 per feed, order 1-819322C1, finger, 1-180034, bolt, 1-120375, nut, 1-120380, washer and 2-21784R1, washer

1шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1 used per finger Hex Soc, 1/4"-20 x 1/4", Cup Pt

1шт.

6

819322C1

FINGER

agitator, 1 per feed, machines built 1974 & since

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1 bolt used per finger Hex, 1/4"-20 x 1 1/2", G5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

21784R1

WASHER

.266 x .500 x .054, 2 used per bolt

1шт.

Выбрано товаров: 30
