Запчасти Case IH 510 (A-32) - FERTILIZER DRIVE

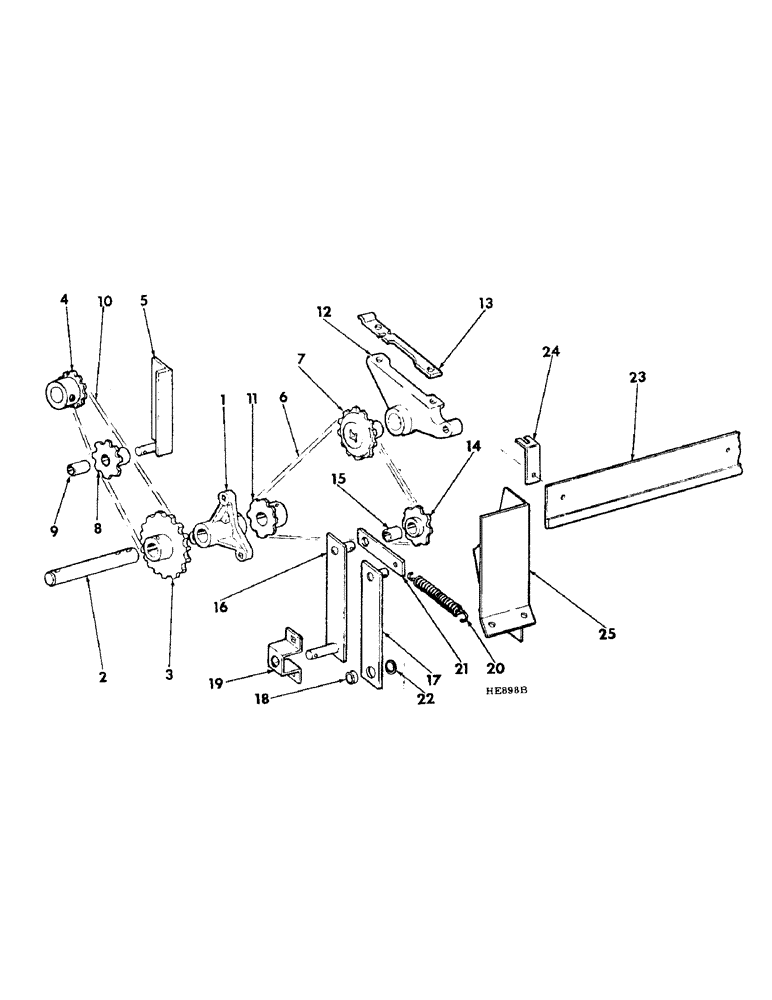

Схема запчастей Case IH 510 - (A-32) - FERTILIZER DRIVE
20
6
22
8
18
17
15
4
12
9
19
3
23
10
24
11
25
21
5
14
7
2
13
16

Артикул

Название

Примечание

Количество

1

815440C1

BEARING HOUSING,1.005" ID x 2.55"

BEARING, jackshaft pin, 1 per fertilizer drive

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 30 deg lub

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 carriage, 3 bolt used per bearing

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

2

815441C1

PIN,25.4mm OD x 161.8mm L

fertilizer drive jackshaft, 1 per fert sprocket

1шт.

3

815442C1

DRIVE SPROCKET

SPROCKET, fert jackshaft driven 16T, fertilizer drive regular speed

1шт.

3

815449C1

DRIVE SPROCKET

SPROCKET, fert jackshaft driven 8T, fertilizer drive fast speed

1шт.

3

815772C1

DRIVE SPROCKET

SPROCKET, fert jackshaft driven 32T, fertilizer drive slow speed, 1 per fertilizer drive

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 std-hd-dld, 1 pin used per sprocket

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per pin 1/8" x 3/4"

1шт.

4

815141C1

DRIVE SPROCKET

SPROCKET, fertilizer drive 8T for use w/regular speed

1шт.

4

815771C1

DRIVE SPROCKET

SPROCKET, fertilizer drive 16T, special speed, must be used w/slow speed grain drive sprocket

1шт.

4

815771C1

DRIVE SPROCKET

SPROCKET, fert drive 16T soybean, 1 per drive, use w/14T grain per drive

1шт.

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN, 3/8 x 2-1/4 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per pin 1/8" x 3/4"

1шт.

5

815443C2

BRACKET

ASSY, chain tightener LH

1шт.

5

815444C2

BRACKET

ASSY, chain tightener RH, 1 per drive

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 pin used per bracket 3/16" x 1"

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage, 2 bolt used per bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

6

CHAIN ASSY, fert feedshaft per feritilizer drive, for service 10 foot roll of 1 inch extended pitch agricultural roller chain reduce to 25 links, add 1-457113R91, connecting link and 1-457114R91, offset link

1шт.

7

815454C1

DRIVE SPROCKET

SPROCKET, fert feedshaft driven 12T, 1 per fertilizer drive

1шт.

8

815448C11

SPROCKET ASSY.

SPROCKET ASSY, chain tightener 8T, includes 1-815802C1, bushing machines prior to June 1976, 1 per fertilizer drive

1шт.

8

819458C1

DRIVE SPROCKET

SPROCKET, chain tightener 8T machines built June 1976 & since fertilizer drive

1шт.

9

815802C1

BUSHING

sprocket, machines prior to June 1976, 1 per fertilizer drive

1шт.

CHAIN ASSY, fertilizer jackshaft drive, regular speed drive from 8T drive sprocket to 16T driven sprocket, 1 per fertilizer drive sprocket to 16T driven sprocket, 1 per fertilizer drive for for service order 1-569088R91, 10 foot roll of 1 inch extended pitch agricultural roller chain, reduce to 34 links, then add 2-457113R91, connecting link and 1-457114R91, offset link

1шт.

10

569088R91

CHAIN (AG)

CHAIN, 10 ft roll, 1 inch

1шт.

CHAIN ASSY, fertilizer jackshaft drive, special speed drive from 8T drive sprocket to 8T driven sprocket, for service order 1-569088R91, 10 foot roll of 1 inch extended pitch agricultural roller chain, reduce to 31 links, then add 1-457113R91, connecting link and 1-457114R91, offset link

1шт.

CHAIN ASSY, fertilizer jackshaft drive, special speed drive from 8T drive sprocket to 32T driven sprocket, for service order 1-569088R91, 10 foot roll of 1 inch extended pitch agricultural roller chain, reduce to 44 links, then add 2-457113R91, connecting link and 1-457114R91, offset link

1шт.

CHAIN ASSY, fertilizer jackshaft drive, special speed drive from 16T drive sprocket to 16T driven sprocket, for service order 1-569088R91, 10 foot roll of 1 inch extended pitch agricultural roller chain, reduce to 38 links, then add 2-457113R91, connecting link and 1-457114R91, offset link

1шт.

CHAIN ASSY, fertilizer jackshaft drive, special speed drive from 16T drive sprocket to 32T driven sprocket, for service order 1-569088R91, 10 foot roll of 1 inch extended pitch agricultural roller chain, reduce to 48 links, then add 1-457113R91, connecting link and 1-457114R91, offset link

1шт.

11

815449C1

DRIVE SPROCKET

SPROCKET, fert feedshaft 8T, 1 per fertilizer drive

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 std-hd-dld, 1 pin used per sprocket

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per pin 1/8" x 3/4"

1шт.

12

815450C1

BRACKET

BEARING, fert feed drive LH

1шт.

12

815451C1

BRACKET

BEARING, fert feed drive RH, 1 per fertilizer drive

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , 1 per brg 1/8"-27 x .66 lg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 2 bolt used per bearing

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

13

815453C1

HINGE

drop bottom, 1 per fertilizer drive

1шт.

14

819458C1

DRIVE SPROCKET

SPROCKET, chain tightener 8T, urethane, 1 per fertilizer drive

1шт.

15

298025R1

BUSHING,15.93mm ID x 19.13mm OD x 19.05mm L

chain tightener sprocket, machines prior to June 1976 1 per sprocket

1шт.

16

BRACKET ASSY, fertilizer feed drive chain tightener, machines prior to 1973, 1 per fertilizer drive, order 1-816988C1, bracket 1-612380R1, spacer, 1-180177, bolt 1-120378, nut, 1-120384, washer and 2-20601R1, washer

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd, 1 bolt used per bracket

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga, 3 washer used per bracket

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 2 pins used per bracket 3/16" x 1"

1шт.

17

816988C1

BRACKET

ASSY, fertilizer feed drive chain tightener machines built 1973 & since, 1 per fertilizer drive

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd, 1 bolt used per bracket

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

21796R1

WASHER

.656 x 1.000 x .054, washer, 1 used per bracket

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per bracket 3/16" x 1"

1шт.

18

612380R1

SPACER

tightener bracket pivot machines built 1973 & since 1 per fertilizer drive

1шт.

19

815459C1

SUPPORT

chain tightener bracket, machines prior to 1973, 1 per fertilizer drive

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage, 2 bolts used per support

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

20

4A

SPRING

tightener bar return, 1 per fertilizer drive

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per spring 3/16" x 1"

1шт.

21

815461C1

BAR

return spring anchor, 1 per fertilizer drive

1шт.

22

20601R1

WASHER

.531 x 1.250 x .105 chain tightener bracket, machines built 1973 & since, 1 per fertilizer drive

2шт.

23

816880C1

SHIELD

fertilizer feed, 16 x 7

1шт.

23

818031C1

SHIELD

fertilizer feed, 13 x 7

1шт.

23

816881C1

SHIELD

fertilizer feed LH, 21 x 7, for drills, Serial Range: shipped-U.K.

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd, 1 per support

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

24

816879C1

SUPPORT

fertilizer feed shield, for drills shipped to U.K., 5 used 13 x 7, 6 used 16 x 7 and 8 used 21 x 7

1шт.

25

816763C1

SHIELD

fertilizer drive LH, 13 x 7, 16 x 7 and 21 x 7, for drills, Serial Range: shipped-U.K.

1шт.

25

816885C1

SHIELD

fertilizer drive RH, 21 x 7, for drills, Serial Range: shipped-U.K.

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2 bolts used per shield Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.
