Запчасти Case IH 510 (A-28) - FERTILIZER DROP BOTTOM

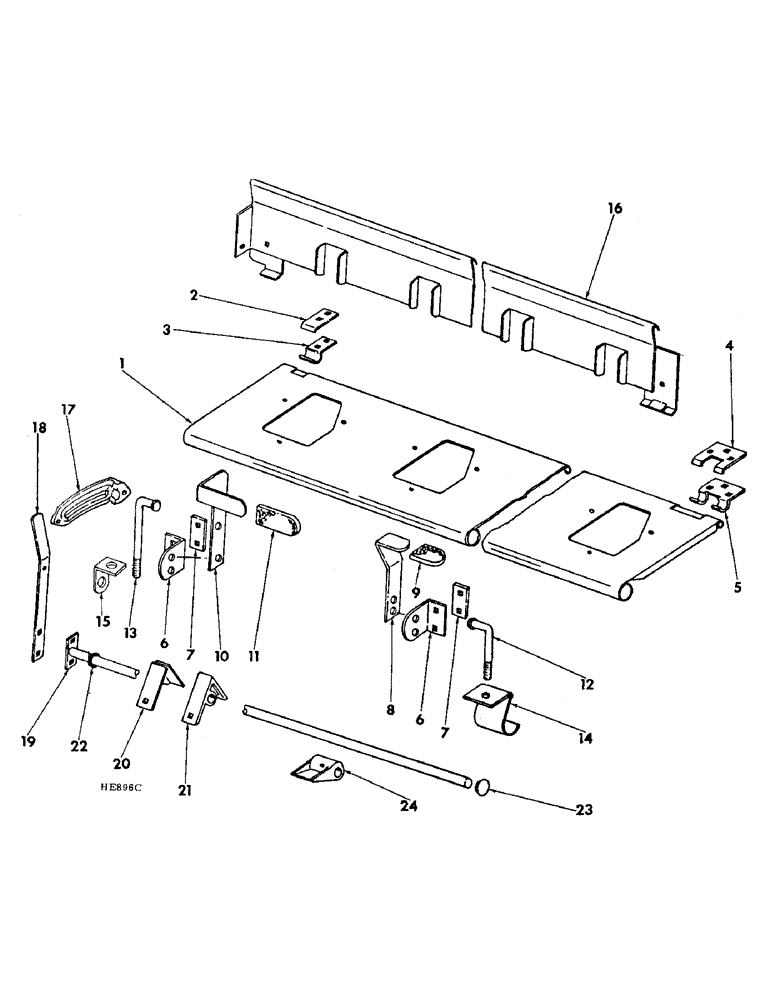

Схема запчастей Case IH 510 - (A-28) - FERTILIZER DROP BOTTOM
7
6
12
20
10
16
17
23
15
8
18
21
19
4
13
1
14
22
5
3
7
11
24
6
2

Артикул

Название

Примечание

Количество

1

815340C1

PLOW BOTTOM

BOTTOM ASSY, fert drop, 13 x 7

1шт.

1

815342C1

BOTTOM

ASSY, fert drop, 16 x 7

1шт.

1

815352C1

BOTTOM

ASSY, fert drop LH, 24 x 6

1шт.

1

815353C1

BOTTOM

ASSY, fert drop RH, 24 x 6

1шт.

1

815344C1

BOTTOM

ASSY, fert drop LH, 18 x 7

1шт.

1

815345C1

BOTTOM

ASSY, fert drop RH, 18 x 7

1шт.

1

815348C1

PLOW BOTTOM

BOTTOM ASSY, fert drop LH, 20 x 6

1шт.

1

815349C1

PLOW BOTTOM

BOTTOM ASSY, fert drop RH, 20 x 6

1шт.

1

815360C1

BOTTOM

ASSy, fert drop LH, 20 x 8

1шт.

1

815361C1

BOTTOM

ASSY, fert drop RH, 20 x 8

1шт.

1

815364C2

BOTTOM

ASSY, fert drop LH, 16 x 10

1шт.

1

815365C2

BOTTOM

ASSY, fert drop RH, 16 x 10

1шт.

1

815356C2

BOTTOM

ASSY, fert drop LH, 16 x 8

1шт.

1

815357C2

BOTTOM

ASSY, fert drop RH, 16 x 8

1шт.

1

816708C1

PLOW BOTTOM

BOTTOM ASSY, fert drop RH, 21 x 7

1шт.

1

816709C1

PLOW BOTTOM

BOTTOM ASSY, fert drop RH, 21 x 7

1шт.

2

604403R1

CLAMP

STOP, drop bottom hinge intermediate, 3 used 13 x 7 and 16 x 7, 4 used 18 x 7, 20 x 6 and 16 x 8, 6 used 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

3

604404R2

CLAMP

HINGE, bottom intermediate, 1 per stop

1шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT, 1/4-20 x 1 type 5 crg, 2 bolt used per hinge

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

4

815373C1

STOP

drop bottom hinge outer

2шт.

5

815374C1

HINGE

drop bottom outer

2шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT, 1/4-20 x 1 type 5 crg

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

603498R1

ANGLE

drop bottom lever, 5 used 13 x 7 and 16 x 7, 6 used 18 x 7, 20 x 7 and 16 x 8, 8 used 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

7

603587R1

BAR

lever angle reinforcing, 1 per angle

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 type

1шт.

120376

NUT,5/16"-18, G5

2 bolts use per bar 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

8

815377C1

LEVER

drop bottom short 2 used 20 x 6, 18 x 7 and 16 x 8, 3 used 13 x 7 and 16 x 7, 4 used 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

1180599

RIVET, 3/8 x 9/16 flat-hd small, 1 rivet used per lever

1шт.

9

815378C1

GRIP

bottom short lever, 1 grip used per short lever

1шт.

10

603501R1

LEVER

drop bottom long 2 used 13 x 7 and 16 x 7, 4 used 20 x 6, 24 x 6, 18 x 7, 21 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/8 x 9/16 flat-hd-small, 1 rivet used per lever

1шт.

11

815379C1

GRIP

bottom long lever, 1 grip per long lever

1шт.

12

603469R1

BOLT,3/8" - 16 x 3.3", Steel

drop bottom short, 1 per short lever

1шт.

13

603470R1

BOLT,3/8" - 16 x 5.1", Steel

drop bottom long, 1 per long lever

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

14

603497R1

CATCH

drop bottom, 4 used 20 x 6, 13 x 7, 16 x 7, 18 x 7 and 16 x 8, 6 used 24 x 6, 21 x 7, 20 x 8 and 16 x 10

1шт.

15

815380C1

ANGLE

drop bottom long lever, 1 per drive

1шт.

W4435

PIN

3/8 x 1-3/8 std-hd-dld, 1 pin used per angle

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per pin 1/8" x 3/4"

1шт.

142619H

WASHER

.406 x .750 x .105, 1 washer used per pin

1шт.

16

815402C1

PANEL

ASSY, back, 13 x 7

1шт.

16

815851C1

PANEL

ASSY, back, 16 x 7

1шт.

16

815404C1

PANEL

ASSY, back LH, 18 x 7

1шт.

16

815405C1

PANEL

ASSY, back RH, 18 x 7

1шт.

16

815406C1

PANEL

ASSY, back LH, 20 x 6

1шт.

16

815407C1

PANEL

ASSY, back RH, 20 x 6

1шт.

16

815408C1

PANEL

ASSY, back LH, 24 x 6

1шт.

16

815409C1

PANEL

ASSY, back RH, 24 x 6

1шт.

16

815410C1

PANEL ASSY.

PANEL ASSY, back LH, 16 x 8

1шт.

16

815411C1

PANEL ASSY.

PANEL ASSY, back RH, 16 x 8

1шт.

16

815412C1

PANEL ASSY.

PANEL ASSY, back LH, 20 x 8

1шт.

16

815413C1

PANEL ASSY.

PANEL ASSY, back RH, 20 x 8

1шт.

16

815414C1

PANEL ASSY.

PANEL ASSY, back LH, 16 x 10

1шт.

16

815415C1

PANEL ASSY.

PANEL ASSY, back RH, 16 x 10

1шт.

16

816720C1

PANEL

ASSY, back LH, 21 x 7

1шт.

16

816721C1

PANEL

ASSY, back RH, 21 x 7

1шт.

17

604128R1

INDICATOR

feed LH

1шт.

17

604129R1

INDICATOR

feed RH, 1 per feed

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 per ind Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

18

605116R1

LEVER

fertilizer indicator, 1 per drive

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 carriage, 2 bolt used per lever

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage, 1 bolt used per lever

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

7500032

BUSHING

NUT, 5/16-18 wing, 1 used per bolt

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

19

815392C1

ROD

ASSY, gate, 13 x 7

1шт.

19

815394C1

ROD

ASSY, gate, 16 x 7

1шт.

19

815396C1

ROD

ASSY, gate, 20 x 6, 18 x 7, & 16 x 8

2шт.

19

815398C1

ROD

ASSY, gate, 24 x 6

2шт.

19

815400C1

ROD ASSY.

ROD ASSY, gate, 20 x 8 and 16 x 10

2шт.

19

816716C1

ROD

ASSY, gate LH, 21 x 7

1шт.

19

816717C1

ROD

ASSY, gate RH, 21 x 7

1шт.

20

607276R2

SUPPORT

BEARING, gate rod, 5 used 13 x 7, 7 used 16 x 7, 8 used 20 x 6, 24 x 6, 24 x 6, 18 x 7, 21 x 7 and 16 x 8, 10 used 20 x 8 and 16 x 10

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2 carriage, 1 bolt used per bearing

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg, 1 per bearing

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

21

603455R1

LEVER GUIDE

BEARING, gate rod centre, 20 x 6, 24 x 6, 18 x 7, 21 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 carriage

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

fert gate rod, 1 per rod assy

1шт.

23

816848C1

PLUG

gate rod hopper end, 13 x 7 & 16 x 7, machines w/fertilizer attach

1шт.

24

GATE, fertilizer feed, 1 per fertilizer feed, order 1-816736C1, gate and 1-180018, bolt, machines, Serial Range: prior-1974

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 sq-hd-cup-pt, 1 used per gate

1шт.

24

816736C1

GATE ASSY

GATE, fertilizer feed, 1 per fertilizer feed, machines built 1974 & since

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 hex-hd, 1 bolt used per gate

1шт.

252552C1

NUT

1/4-20 tab weld, 1 per bolt

1шт.
