Запчасти Case IH 510 (A-26) - GRAIN FEED SHAFT

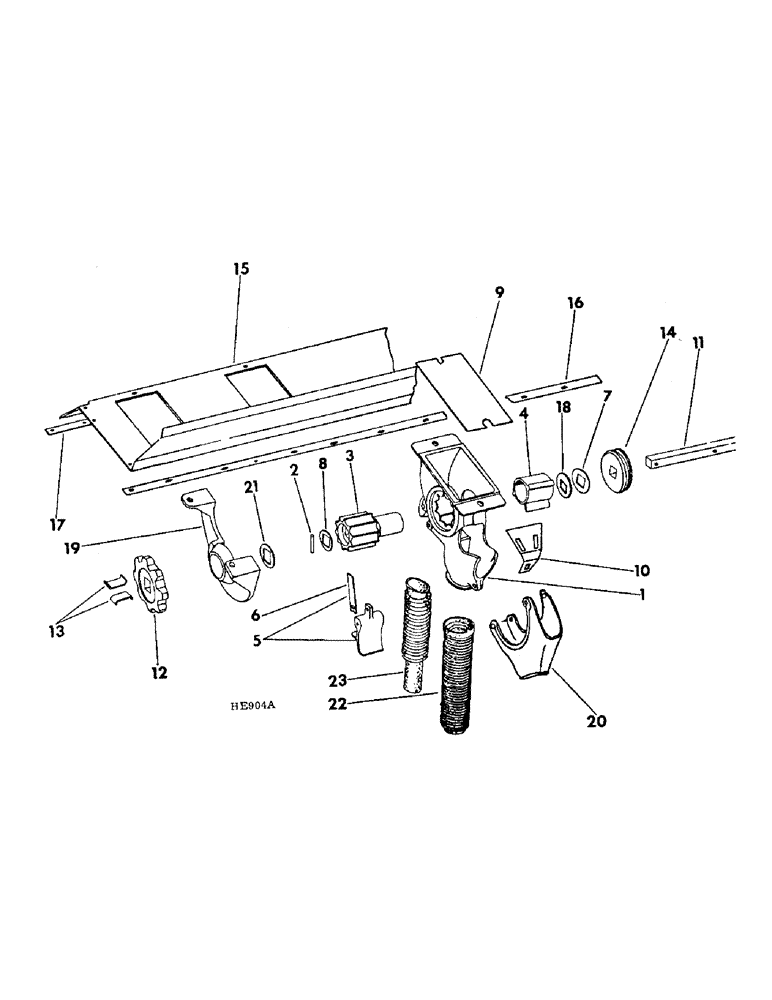

Схема запчастей Case IH 510 - (A-26) - GRAIN FEED SHAFT
8
20
9
19
23
14
10
22
17
2
13
21
6
15
1
5
12
4
16
7
18
3
11

Артикул

Название

Примечание

Количество

1

603816R92

CUP

ASSY, fluted feed, includes 1-603295R91, cup assy, 1-603111R1, roll, 1-603112R1, block and 4-602106R1, washer, 1 per feed

1шт.

1

603295R92

CUP

ASSY, fluted feed, less block and roll, 1 per feed

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2 used per feed cup assy Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

2

603134R1

PIN,4.76mm OD x 29.37mm L

feed cup, 1 used per feed cup

1шт.

3

603111R1

ROLLER

ROLL, fluted, 1 used per feed cup

1шт.

4

603112R1

BLOCK

shut-off, 1 used per feed cup

1шт.

5

603108R21

BOTTOM

ASSY, feed cup dump, includes 1-603178R1, latch and 1-106883, rivet, 1 used per feed cup assy

1шт.

112007R1

PIN

3/16 x 3 cotter, 1 per bottom

1шт.

6

603178R1

LATCH

feed cup dump bottom, 1 latch used per bottom

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1 rivet used per latch Truss Hd, 3/16" x 3/8"

1шт.

7

N11720

WASHER

21/32 sq x 1-1/2 x 12 ga, 1 used per feed cup assy

1шт.

8

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

fluted feed cup spring, 1 used per feed cup assy

1шт.

9

603677R2

PLATE

cover

1шт.

10

606034R1

GUARD

WINDSHIELD, grain feed, 1 per feed cup

1шт.

11

815286C2

BAR

feed shaft, 13 x 7

1шт.

11

815287C2

BAR

feed shaft, 16 x 7

1шт.

11

815288C2

BAR

feed shaft LH 18 x 7

1шт.

11

815289C2

BAR

feed shaft RH, 18 x 7

1шт.

11

815290C2

BAR

feed shaft LH, 20 x 6

1шт.

11

815291C2

BAR

feed shaft RH, 20 x 6

1шт.

11

815292C2

BAR

feed shaft LH, 24 x 6

1шт.

11

815293C2

BAR

feed shaft RH, 24 x 6

1шт.

11

815294C2

BAR

feed shaft LH, 16 x 8

1шт.

11

815295C2

BAR

feed shaft RH, 16 x 8

1шт.

11

815296C2

BAR

feed shaft LH, 20 x 8

1шт.

11

815297C2

BAR

feed shaft RH, 20 x 8

1шт.

11

815298C2

BAR

feed shaft LH, 16 x 10

1шт.

11

815299C2

BAR

feed shaft RH, 16 x 10

1шт.

11

816704C2

SHAFT

BAR, feed shaft LH, 21 x 7

1шт.

11

816705C2

SHAFT

BAR, feed shaft RH, 21 x 7

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), , 1 per feed 3/16" x 1 1/8"

1шт.

12

815324C1

DRIVE SPROCKET

SPROCKET, grass seed drive 10T, 1 per drive

1шт.

13

815803C1

CLIP

sprocket retaining, 2 clips used per sprocket

1шт.

14

604420R1

GEAR

acreage counter worm

1шт.

15

815308C1

X

SECTION, grain bottom partition, 13 x 7

1шт.

15

815309C1

PANEL

SECTION, grain bottom partition, 16 x 7

1шт.

15

815310C1

SECTION, grain bottom partition, 18 x 7

1шт.

15

816706C1

X

SECTION, grain bottom partition, 21 x 7

1шт.

15

815311C1

BOTTOM

SECTION, grain bottom partition, 20 x 6

1шт.

15

815312C1

SECTION, grain bottom partition, 24 x 6

1шт.

15

815313C1

SECTION, grain bottom partition, 16 x 8

1шт.

15

815314C1

SECTION, grain bottom partition, 20 x 8

1шт.

15

815315C1

SECTION, grain bottom partition, 16 x 10, machines, Serial Range: prior-1973

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg, 2 per drive

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8-16 x 1/2 hex-hd, 8 used 13 x 7, 7 used 20 x 6, 16 x 7 18 x 7 and 16 x 8, 12 used 20 x 8 and 16 x 10, 14 used 24 x 6 and 21 x 7

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

6шт.

180139

SCREW

BOLT, 7/16-15 x 1/2 hex-hd, 2 used 24 x 6 and 20 x 8

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

271501

SOCKET

NUT, 7/16-15 hex, 1 used per bolt

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 used per bolt 3/8"

1шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, , 1 used per bolt 7/16"

1шт.

15

816958C1

BOTTOM

SECTION, grain bottom partition 13 x 7

1шт.

15

816959C1

BOTTOM

SECTION, grain bottom partition, 16 x 7

1шт.

15

816960C1

BOTTOM

SECTION, grain bottom partition, 18 x 7

1шт.

15

816956C1

BOTTOM

SECTION, grain bottom partition, 20 x 6

1шт.

15

816957C1

BOTTOM

SECTION, grain bottom partition, 24 x 6

1шт.

15

816962C1

BOTTOM

SECTION, grain bottom partition, 16 x 8

1шт.

15

816963C1

BOTTOM

SECTION, grain bottom partition, 20 x 8

1шт.

15

816964C1

BOTTOM

SECTION, grain bottom partition, 16 x 10

1шт.

15

816961C1

BOTTOM

SECTION, grain bottom partition, 21 x 7, machines built 1973 & since

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8-16 x 1/2 hex-hd

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

16

815316C1

BAR

feed cup guide rear, 13 x 7

1шт.

16

815317C1

BAR

feed cup guide rear, 16 x 7

2шт.

16

815318C1

BAR

feed cup guide rear, 18 x 7

2шт.

16

815319C1

BAR

feed cup guide rear, 20 X 6

2шт.

16

815320C1

BAR

feed cup guide rear, 24 x 6

2шт.

16

815321C1

BAR, feed cup guide rear, 16 x 8

2шт.

16

815322C1

BAR

feed cup guide rear, 20 x 8

2шт.

16

815323C3

BAR

feed cup guide rear, 16 x 10

2шт.

16

816707C1

BAR

feed cup guide rear, 21 x 7

2шт.

17

816938C1

BAR

feed cup guide front, 13 x 7

1шт.

17

816939C1

BAR

feed cup guide front, 16 x 7

2шт.

17

816940C1

BAR

feed cup guide front, 18 x 7

2шт.

17

816974C1

BAR

feed cup guide front, 20 x 6

2шт.

17

816975C1

BAR

feed cup guide front, 24 x 6

2шт.

17

816942C1

BAR

feed cup guide front, 16 x 8

2шт.

17

816943C1

BAR

feed cup guide front, 20 x 8

2шт.

17

816944C3

BAR

feed cup guide front, 16 x 10

2шт.

17

816941C1

BAR

feed cup guide front, 21 x 7

2шт.

18

602106R1

SQ HOLE WASHER

21/32 sq x 1-11/64 x 32 ga

1шт.

19

815499C2

HANGER

grass seed drive sprocket, 1 per feed

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd, 2 bolt used per hanger

1шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

20

815805C91

CUP

PACKAGE, grain seed viewing cup, individual cups not serviced separately, package consists of 24 viewing cups and 48 cotter pins

1шт.

112007R1

PIN

3/16 x 3 pltd cotter, 2 cotter used per cup

1шт.

21

N11791

WASHER

grass seed drive sprocket, 1 per sprocket

1шт.

22

606146R2

TUBE,1.25" ID, 1.906" OD, 44, 9" Length

grain seed use w/sgle disk F.O., for use on machines equipped w/hoe type furrow openers, tube required to have 38 convolutions, approximately 6-7/16 inch minimun length and 26-7/16 inch maximum length

1шт.

22

603263R2

TUBE,1.25" ID, 1.906" OD, 35, 9" Length

grain seed use w/dble disk cast boot F.O., tube required to have 30 convolutions, approximately 4-15/16 inch minimum length and 20-15/16 inch maximun length

1шт.

23

819354C1

TUBE

grain seed use w/dble disk steel boot F.O., tube required to have 36 convolutions, approximately 11.40 inch minimum length and 31.40 inch maximum length

1шт.

Выбрано товаров: 98
