Запчасти Case IH 510 (A-24) - TILT AXLE AND PRIMARY DRIVE, 20 X 8 AND 16 X 10 PLAIN GRAIN DRILL WITH 40" BEDDED CROP AND 15" WHEEL

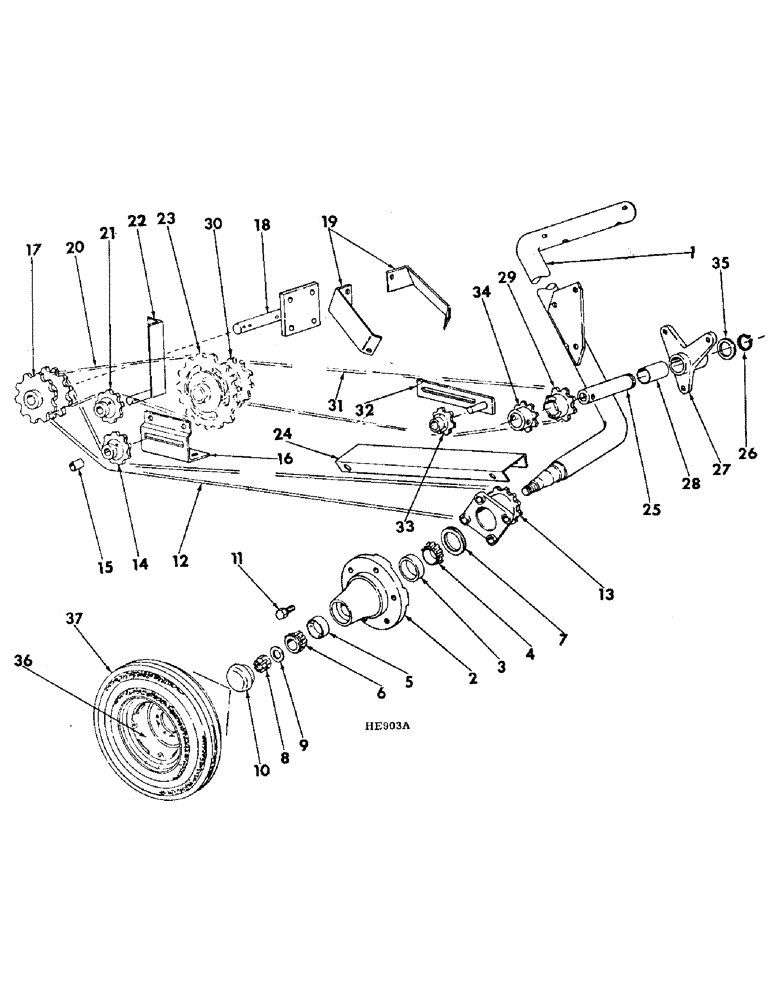

Схема запчастей Case IH 510 - (A-24) - TILT AXLE AND PRIMARY DRIVE, 20 X 8 AND 16 X 10 PLAIN GRAIN DRILL WITH 40" BEDDED CROP AND 15" WHEEL
9
14
29
32
16
12
24
18
1
22
26
35
7
17
34
11
5
15
8
20
4
28
25
13
36
6
33
31
19
37
3
23
27
30
21
2
10

Артикул

Название

Примечание

Количество

1

815202C11

AXLE

ASSY, LH

1шт.

1

815203C11

AXLE

ASSY, LH, above axles include 1-427640, nut, 1-103398, cotter and 2-467750, washer

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

14шт.

120384

WASHER,1/2"

LOCK, 1/2"

14шт.

2

815211C21

HUB

ASSY, wheel, includes 1-478793R1, cup and 1-572564R1, cup

2шт.

3

478793R1

BEARING CUP

HUB ASSY, wheel, includes 1-478793R1, cup and 1-572564R1, cup

2шт.

3

478793R1

BEARING CUP

CUP, inner bearing

2шт.

4

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE, inner bearing

2шт.

5

572564R1

BEARING CUP

CUP, outer bearing

2шт.

6

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

CONE #L44649

2шт.

7

815219C91

OIL SEAL

wheel hub oil

2шт.

8

427640

SLOTTED NUT,3/4"-16, G5

NUT, wheel hub oil

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

9

467750R1

WASHER

.781 x 1.500 x .105

4шт.

10

663906R1

CAP

wheel hub

2шт.

11

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

12шт.

12

CHAIN ASSY, primary main drive, for service order 1-815765C91, 10 foot roll of 1-1/4 flexible pitch 2050 side bow roller chain, reduce to 63 links, then add 1-815766C91, connecting link and 2-456929R91, offset links

2шт.

13

815221C1

DRIVE SPROCKET

SPROCKET, wheel 9T

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

14

616541R1

DRIVE SPROCKET

SPROCKET, chain tightener 7T

2шт.

271293

PULLEY

FITTING, 5/16-32 straigh lub

2шт.

PO14400

BOLT, 1/2-13 x 2-1/2 type 1 crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

.531 x 1.250 x .054.

2шт.

15

552920R2

SPACER,3/4" Tube x 1 1/2"

BUSHING, sprocket

2шт.

16

815227C1

BRACKET

chain tightener

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

6шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

2шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

21496R1

WASHER

.344 x .750 x .105

2шт.

17

815228C1

SPROCKET ASSY.

SPROCKET, front dual

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 straight lub

2шт.

18

815229C1

BRACKET

ASSY, front sprocket mtg

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

19

815232C1

BRACE

frame corner LH

1шт.

19

815233C1

BRACE

frame corner RH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

BOLT, 3/8-16 x 1-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

CHAIN ASSY, primary countershaft, order 1-569089R91, 10 ft roll of 1-1/4 extended pitch agri roller chain, reduce to 39 links, add 1-587372R91, connect link and 2-456929R91, offset links

2шт.

21

616541R1

DRIVE SPROCKET

SPROCKET, chain tightener 7T

2шт.

219-28

LUBE NIPPLE,5/16" - 32

FITTING, 5/16-32 straight lub

2шт.

22

815234C1

BRACKET

ASSY, chain tightener LH

1шт.

22

815235C1

BRACKET

ASSY, chain tightener RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

178375R1

WASHER

.781 x 1.250 x .054

2шт.

23

815241C1

DRIVE SPROCKET

SPROCKET, countershaft clutch LH 24T

1шт.

23

815242C1

DRIVE SPROCKET

SPROCKET, countershaft clutch RH 24T

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 30 deg lub

2шт.

N32142

HEADED PIN,9.53mm OD x 53.98mm L

PIN, 3/8 x 2-1/8 std-hd-dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

24

815887C1

SHIELD

primary drive chain

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

599809R1

BOLT

3/8-16 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

815140C1

SLEEVE

grain feed drive

2шт.

26

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

27

815143C11

BRACKET

BEARING ASSY, drive sleeve support, includes 1-815144C1, bushing

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 30 deg lub

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

28

815144C1

BUSHING,34.92mm ID x 38.1mm OD x 57.15mm L

support bearing

2шт.

29

815142C1

DRIVE SPROCKET

SPROCKET, grain driven 7T, reg speed, w/8T fert drive sprocket

1шт.

29

815770C1

DRIVE SPROCKET

SPROCKET, grain driven 14T, special slow speed drive w/16T fert drive sprocket

1шт.

30

815125C11

DRIVEN SPROCKET

SPROCKET ASSY, clutch LH 10T

1шт.

30

815126C11

DRIVE SPROCKET

SPROCKET ASSY, clutch RH 10T, includes 1-815127C1, bushing

1шт.

815127C1

BUSHING

clutch sprocket

1шт.

31

CHAIN ASSY, grain drive, 1 per drive w/7T grain drive sprocket, order 1-569089R91, 10 ft roll of 1-1/4 extended pitch agri roller chain, reduce to 33 links, add 1-587372R91, connect link and 2-456929R91 offset links

1шт.

31

CHAIN ASSY, grain drive, 1 per drive w/14T grain drive sprocket, order 1-569089R91, 10 ft roll of 1-1/4 extended pitch agri roller chain, reduce to 38 links, add 1-587372R91, connect link and 2-456929R91, offset links

1шт.

32

BRACKET ASSY, chain tightener, machines built prior to June 1976 order 1-816040C2, bracket assy and 1-819457C1, sprocket

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

178373R1

WASHER

.531 x 1.000 x .054

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

32

816040C2

BRACKET

ASSY, chain tightener, machines built June 1976 & since

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

21796R1

WASHER

3/16 x 1 cotter

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

33

819499C1

SPROCKET ASSY.

SPROCKET ASSY, chain tightener, cast, machines built prior to June 1976

1шт.

33

819457C1

SPROCKET

6T chain tightener, urethane, machines built June 1976 & since

1шт.

34

815141C1

DRIVE SPROCKET

SPROCKET, fert drive 8T, reg speed drive w/7T grain driven sprocket

2шт.

34

815771C1

DRIVE SPROCKET

SPROCKET, fert drive 16T, special slow speed drive w/14T grain driven sprocket

2шт.

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN, 3/8 x 2-1/4 std-hd-dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

35

608085R1

WASHER

1.406 x 2.000 x .054

6шт.

36

622192R91

WHEEL

15 x 5 KB

2шт.

37

TIRE, 7.60-15 tubeless

2шт.

387897R91

VALVE STEM

VALVE, tubeless tire

2шт.
