Запчасти Case IH 510 (A-20) - POWER LIFT

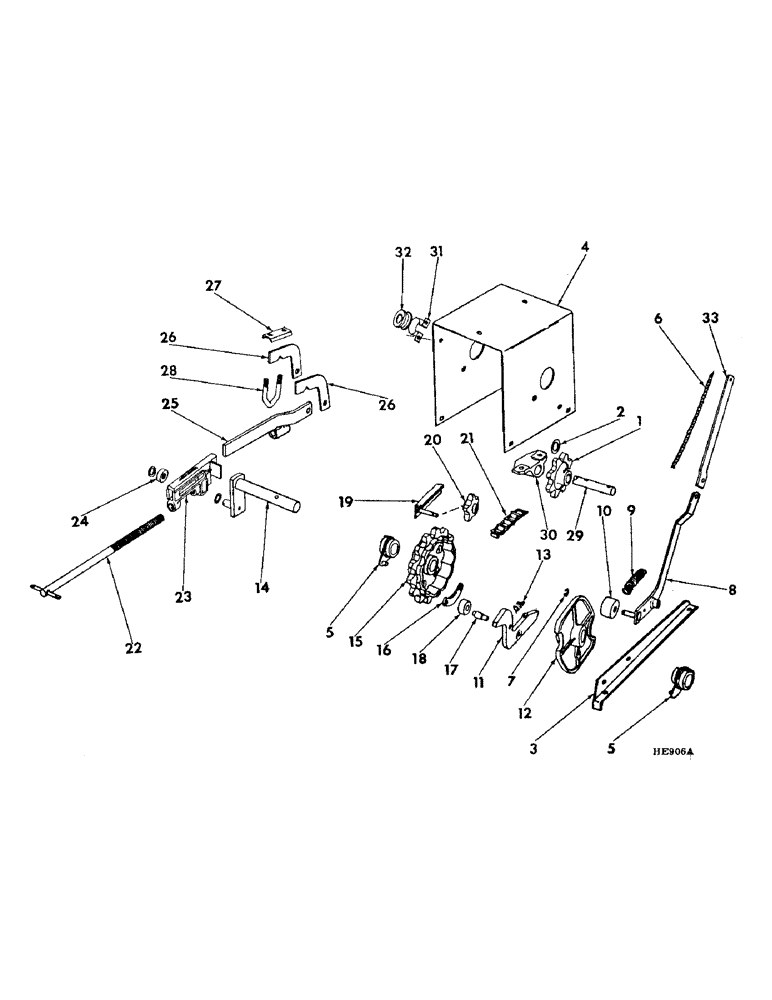

Схема запчастей Case IH 510 - (A-20) - POWER LIFT
2
28
14
8
9
31
26
22
18
3
5
16
4
7
10
25
27
26
21
11
24
17
30
23
1
20
33
6
15
19
12
29
13
32
5

Артикул

Название

Примечание

Количество

Illust. is for one power lift, copy is for 2 units, LH & RH, one RH used on 13 x 7, 16 x 7-1 LH & 1 RH used on 20 x 6, 24 x 6, 18 x 7, 21 x 7, 16 x 8, 20 x 8 & 16 x 10

1шт.

1

815530C1

DRIVE SPROCKET

SPROCKET, power lift drive 8T

2шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

20885R1

WASHER

1.156 x 2.000 x .054, between sprocket and bearing

2шт.

3

815531C1

SUPPORT

power lift bracket LH

1шт.

3

815532C1

SUPPORT

power lift bracket, RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

4

815533C2

BRACKET

ASSY, power lift LH

1шт.

4

815534C2

BRACKET

ASSY, power lift RH

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

591714R1

WASHER

719 x .250 x .054

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2-13 x 1 carriage

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

103418

SWITCH,1/4" x 1"

Split (Cotter), 1/4" x 1"

2шт.

5

592770R1

CRANKSHAFT BEARING,1.257" ID x 2.12" OD x 2.06"

BEARING, crankshaft

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

6

ROPE, 5/16 x 12 foot sisal, dealer to supply locally

2шт.

7

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

2шт.

8

815539C1

BRACKET

LEVER ASSY, power lift trip LH

1шт.

8

815540C1

LEVER

ASSY, power lift trip RH

1шт.

178374R1

WASHER

.531 x 1.250 x .054

4шт.

9

98457H

SPRING

trip lever

2шт.

10

603378R2

ROLLER

trip stop

2шт.

11

603382R1

PAWL

DOG, power lift LH

1шт.

11

603381R1

PAWL

DOG, power lift RH

1шт.

12

608421R1

CARRIER

trip dog LH

1шт.

12

608420R1

CARRIER

trip dog RH

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per carrier 3/16" x 1"

1шт.

19972R1

PIN,11.1mm OD x 11.1mm L, Coiled

7/16 x 2-1/2 coiled spring, 1 pin used per carrier

1шт.

13

37AC

SPRING

trip dog

2шт.

14

815543C1

CRANK

ASSY, power lift LH

1шт.

14

815544C1

CRANK

ASSY, power lift RH

1шт.

178375R1

WASHER

.781 x 1.250 x .054

4шт.

22051R1

WASHER

1.531 x 2.250 x .054

2шт.

608700R1

WASHER

1.281 x 2.000 x .054

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

15

603377R2

DRIVE SPROCKET

SPROCKET, clutch 14T

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

2шт.

16

603397R1

LINK

trip dog carrier connecting

2шт.

LC175

PIN

1/2 x 2-1/2 std-hd-dld

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

17

F15206

TRUNNION

PIN, trip dog roller

2шт.

18

F13685

PAWL

ROLLER, trip dog

2шт.

19

815546C1

BRACKET

ASSY, chain tightener spkt LH

1шт.

19

815547C1

BRACKET

ASSY, chain tightener spkt RH

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

350515R1

WASHER

.656 x 1.000 x .054

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

20

603375R1

DRIVE SPROCKET

SPROCKET, chain tightener 5T

2шт.

219-28

LUBE NIPPLE,5/16" - 32

FITTING, 5/16 UNEF lub, 1 fitting used per sprocket

2шт.

21

CHAIN ASSY, power lift drive, for service order 1-CS55, 10 foot roll of no. 55 steel chain and reduce to 29 links

1шт.

CS55

CHAIN (AG),74 Links

CHAIN, #55, 74 links det/stl sprocket

1шт.

22

815550C1

ADJUSTMENT SCREW

ASSY, adjusting

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 hex sltd

2шт.

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

2шт.

178375R1

WASHER

.781 x 1.250 x .054

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

23

815552C1

SLIDE

adjusting LH

1шт.

23

815553C1

SLIDE

adjusting RH

1шт.

24

601298R1

ROLLER

adjustable slide

2шт.

25

815554C1

ARM

ASSY, slide connecting LH

1шт.

25

815555C1

ARM

ASSY, slide connecting RH

1шт.

26

815557C1

ARM

rockshaft lift

4шт.

138081

PIN

5/8 x 1-23/32 rod end, 1 pin used per 2 arms

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 1 per pin 1/8" x 1"

1шт.

21782R1

WASHER

.656 x 1.500 x .054, 1 washer used per pin

1шт.

27

603393R1

CHANNEL

rockshaft lift arm clamp

2шт.

28

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, clamp

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 2 per u-bolt

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 per u-bolt 5/8"

2шт.

29

815558C1

ROD

power lift countershaft use w/dble drive drills

2шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std-hd-dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

30

815122C1

BRACKET

BEARING, countershaft rod, use w/dble drive drills

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

31

465622R1

CLAMP

rope grommet

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

32

480475R1

GROMMET

trip rope

2шт.

33

604526R1

ARM

trip lever, machines, Serial Range: prior-1972

2шт.

Q3428

PIN

7/16 x 7/8 std-hd-dld, 1 pin used per arm

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per pin 3/16" x 1"

1шт.
