Запчасти Case IH 510 (A-18) - HYDRAULIC LIFT, MACHINES WITH REMOTE CONTROL HYDRAULIC

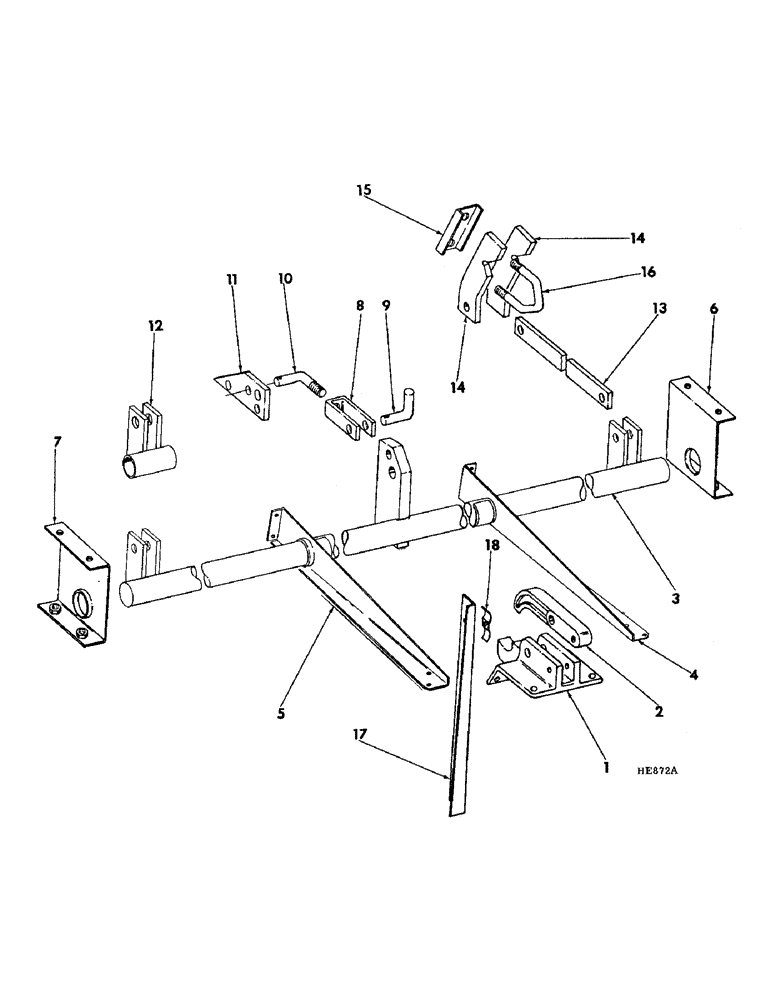

Схема запчастей Case IH 510 - (A-18) - HYDRAULIC LIFT, MACHINES WITH REMOTE CONTROL HYDRAULIC
6
14
12
7
13
5
2
4
18
10
15
11
8
9
14
16
1
3
17

Артикул

Название

Примечание

Количество

1

815560C2

BRACKET

cylinder mounting

1шт.

This hook's to 8150401C1, see section C6, Ref. 10

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

815561C1

ARM

RETAINER, cylinder

1шт.

N32142

HEADED PIN,9.53mm OD x 53.98mm L

PIN, 3/8 x 2-1/8 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

815568C1

SHAFT

ROCKSHAFT ASSY, hydraulic lift, pipe, machines, Serial Range: prior-1973

1шт.

3

816926C2

ROCKSHAFT

ASSY, hydraulic lift, solid w/gauge press whl attach use only solid rockshaft, machines built 1973 & since

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

815562C1

SUPPORT

HYD cyl rockshaft LH

1шт.

5

815563C1

SUPPORT

hyd rockshaft RH, machines, Serial Range: prior-1973

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

6

815564C1

BRACKET

ASSY, cylinder rockshaft LH

1шт.

7

815565C1

BRACKET

ASSY, cylinder rockshaft RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

815571C1

YOKE

rockshaft

1шт.

9

600829R2

ROD

cylinder lock

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

10

815572C2

ROD

yoke connecting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

11

815521C1

BAR

hyd lift connecting rod

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12

815573C1

ARM

rockshaft shifter, machines, Serial Range: prior-1973

2шт.

23689R1

PIN, 1/2 x 2-3/4 coiled spring

4шт.

13

815576C1

BAR

rockshaft connecting

2шт.

27-10161

CLEVIS PIN,5/8" x 1.610"

PIN, 5/8 x 1-23/32 rod-end

4шт.

21782R1

WASHER

.656 x 1.500 x .054

4шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

14

815577C1

ARM

rockshaft lift

4шт.

15

603393R1

CHANNEL

lift arm clamping

2шт.

16

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, rockshaft clamping

2шт.

121589

TINE BAR

NUT, 5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

815578C1

SUPPORT

hyd hose

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

317054R1

CLAMP

hose support

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 lock

1шт.

1277744C1

HYD ROCKSHAFT

wing lift

1шт.

Выбрано товаров: 60
