Запчасти Case IH 510 (A-16) - MAIN DRIVE SHIELD, STRAIGHT AXLE

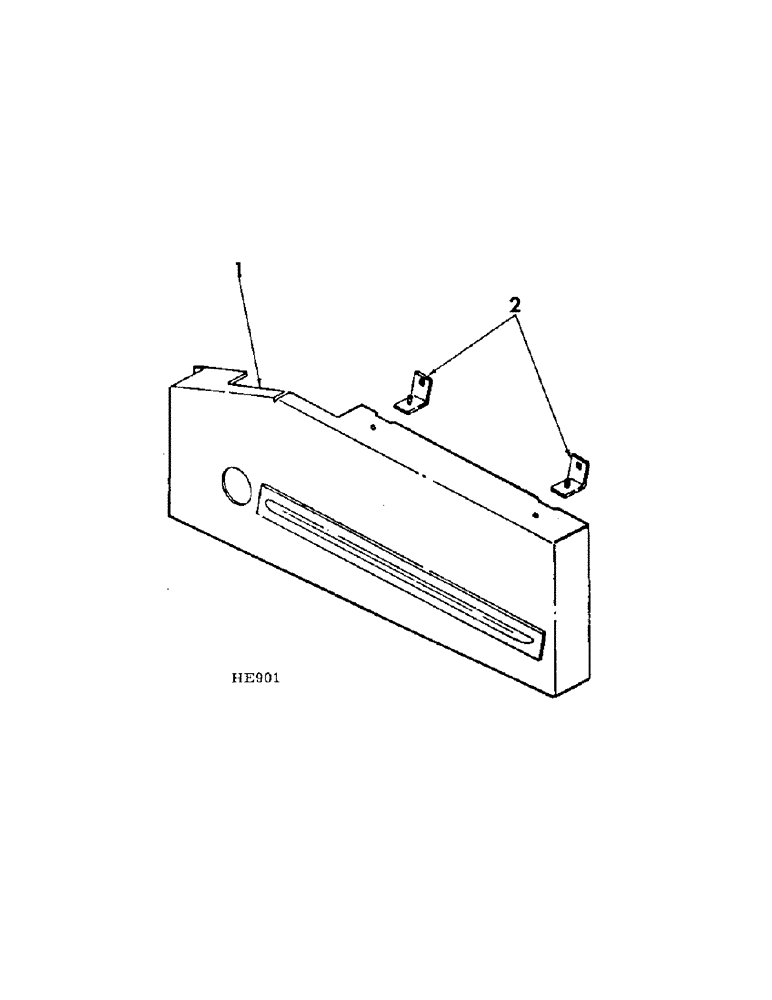

Схема запчастей Case IH 510 - (A-16) - MAIN DRIVE SHIELD, STRAIGHT AXLE
1
2

Артикул

Название

Примечание

Количество

1

815200C31

AXLE

SHIELD ASSY, main drive LH, 1 per LH drive

1шт.

815200C31-FOR SHIELD ONLY --LH-815145C1 AND RH-815146C1-ON THE 815200C31 ON GPN IT GOES TO AN AXLE AY/1/98

1шт.

1

815201C31

CENTER AXLE

SHIELD ASSY, main drive RH, 1 per RH drive w/20 in wheels

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing, 1 per shield (Replaces 815200C31)

1шт.

2

815151C1

SUPPORT

ANGLE ASSY, shield support

1шт.

815201C3

2 per shield on double drive

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage, 1 per angle

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

Выбрано товаров: 9
