Запчасти Case IH 510 (A-16[1]) - MAIN DRIVE SHIELD, TILT AXLE WITH 20 INCH WHEELS

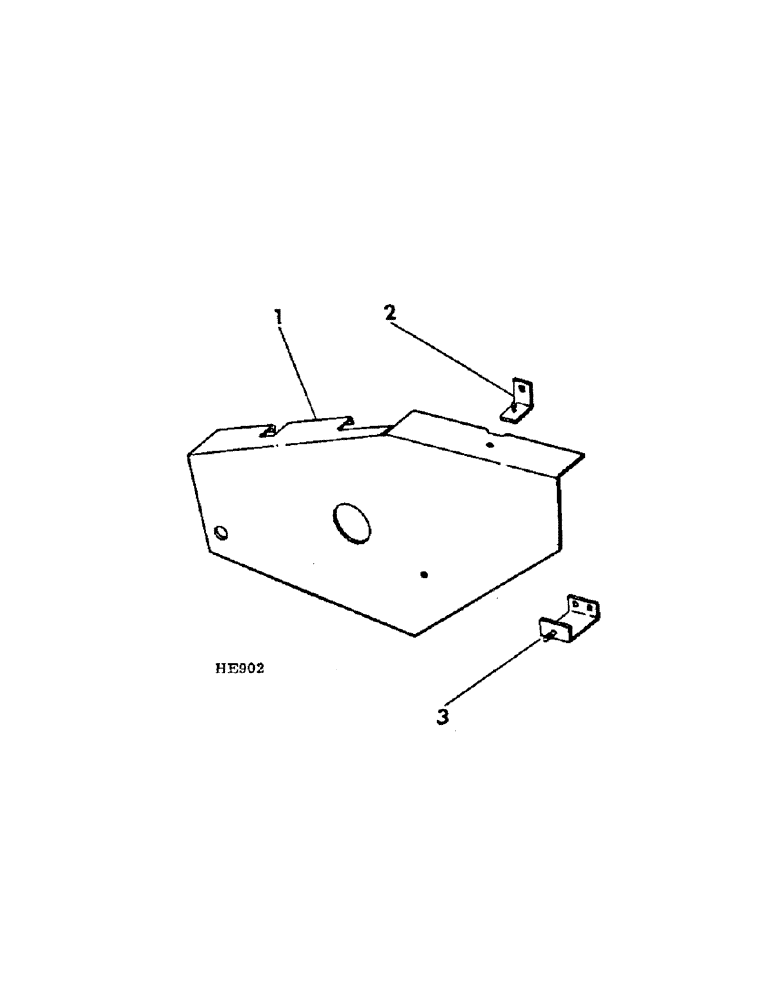

Схема запчастей Case IH 510 - (A-16[1]) - MAIN DRIVE SHIELD, TILT AXLE WITH 20 INCH WHEELS
1
3
2

Артикул

Название

Примечание

Количество

1

815243C1

SHIELD

ASSY, drive LH

1шт.

1

815244C1

SHIELD

ASSY, drive RH

1шт.

142745

NUT, WING

NUT, 5/16-18 C-Z wing

4шт.

599744R1

AXLE PIN

PIN, quick, attachable cotter

2шт.

2

815151C1

SUPPORT

ANGLE ASSY, shield support

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

815247C1

BRACKET

ASSY, shield support

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Выбрано товаров: 12
