Запчасти Case IH 510 (A-15) - HAND LIFT

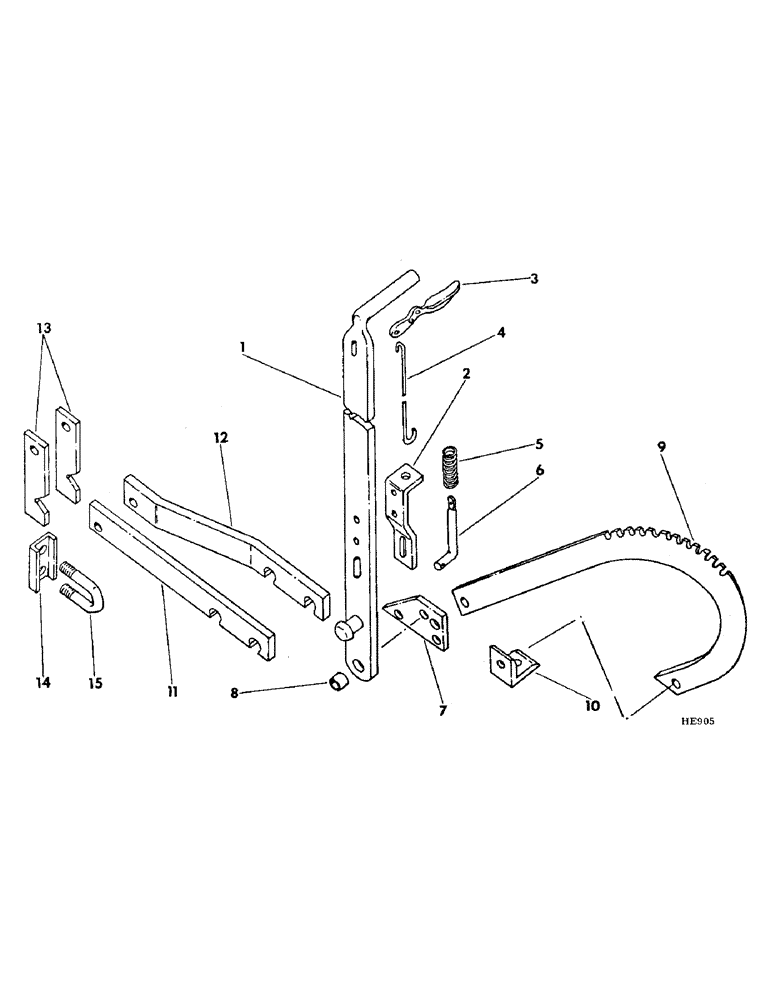

Схема запчастей Case IH 510 - (A-15) - HAND LIFT
12
2
11
7
1
14
8
5
4
9
6
13
3
15
10

Артикул

Название

Примечание

Количество

1

606059R91

LEVER ASSY.

LEVER AND GUIDE ASSY, hand lift, includes 1-606148R1, guide and 2-104100, rivet

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

2

606148R1

LEVER GUIDE

GUIDE, lever

1шт.

104100

RIVET,But Hd, 5/16" x 1 1/8"

5/16 x 1-1/8 rd-hd

2шт.

3

PO15296

HANDLE

lever

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

4

604434R1

ROD

detent

1шт.

5

2302

SPRING

detent

1шт.

6

M92872

LIFTING ROD

DETENT, hand lift

1шт.

12026R1

WASHER

.531 x 1.250 x .054

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

815521C1

BAR

hand lift lever pivot

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

373080R1

SPACER,1/2" Pipe x 1/2"

lever pivot

1шт.

9

815522C1

PIVOT PLATE

SECTOR, hand lift

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

815523C1

ANGLE

sector support

1шт.

11

815524C1

BAR

lift adjusting, not 13 x 7

1шт.

12

815525C1

BAR

lift adjusting, 13 x 7 only

1шт.

13

815526C1

BAR

rockshaft lift

2шт.

138081

PIN

5/8 x 1-23/32 rod-end-dld

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

14

603393R1

CHANNEL

lift arm clamping

1шт.

15

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT, clamping

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

2шт.

Выбрано товаров: 35
