Запчасти Case IH 510 (A-14) - GRAIN FEED INDICATOR AND SHIFTER

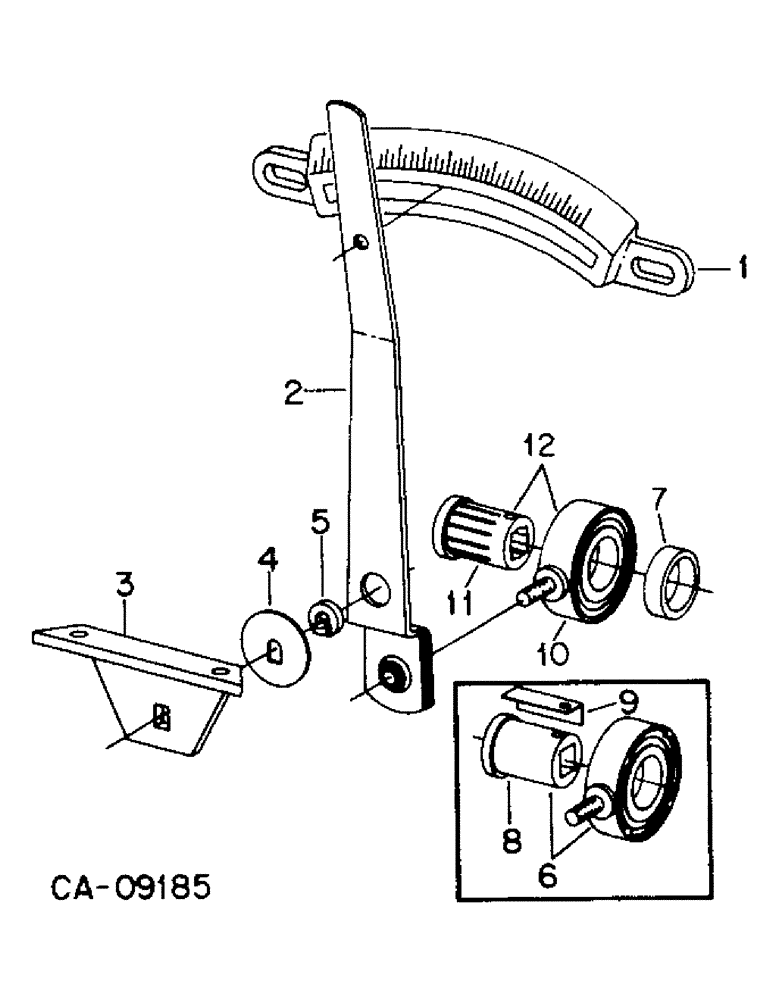

Схема запчастей Case IH 510 - (A-14) - GRAIN FEED INDICATOR AND SHIFTER
7
4
10
12
3
1
6
5
2
9
8
11

Артикул

Название

Примечание

Количество

1

603127R1

INDICATOR

grain

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

815179C1

LEVER

ASSY, grain feed shifter

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 carriage

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 hex jam

2шт.

7500032

BUSHING

NUT, 5/16-18 wing

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

3

BRACKET, shifter lever, machines prior to 1975 order, 1-819361C1 bracket, 1-819263C1, washer & 1-819264C1, bushing

1шт.

3

819361C1

BRACKET

shifter lever, machines built 1975 & since

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

819263C1

WASHER

shifter stop, machines built 1975 & since

1шт.

5

819264C1

BUSHING

shifter stop, machines built 1975 & since

1шт.

6

609384R91

THRUST BEARING

ASSY, feed shifter, prior to 1984 season, order bearing assy, 1279927C91 and spacer, 609388R1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

7

609389R1

SPACER

nylon bushing

1шт.

8

609388R1

SPACER

feed shifter bearing, plastic, part of bearing assy 609384R91

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

9

816573C1

SHIM

lever .005, used only with bearing assy, 609384R91

1шт.

10

1279927C91

BEARING ASSY

feed shifter

1шт.

11

1279145C1

SPACER

feed shifter bearing, powered metal

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

12

1279109C91

BEARING ASSY

ASSY W/SPACER, 1279145C1, feed shifter

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad P/T lock type 5

1шт.

Выбрано товаров: 28
