Запчасти Case IH 510 (A-10) - PARTITION PANELS AND BAFFLES

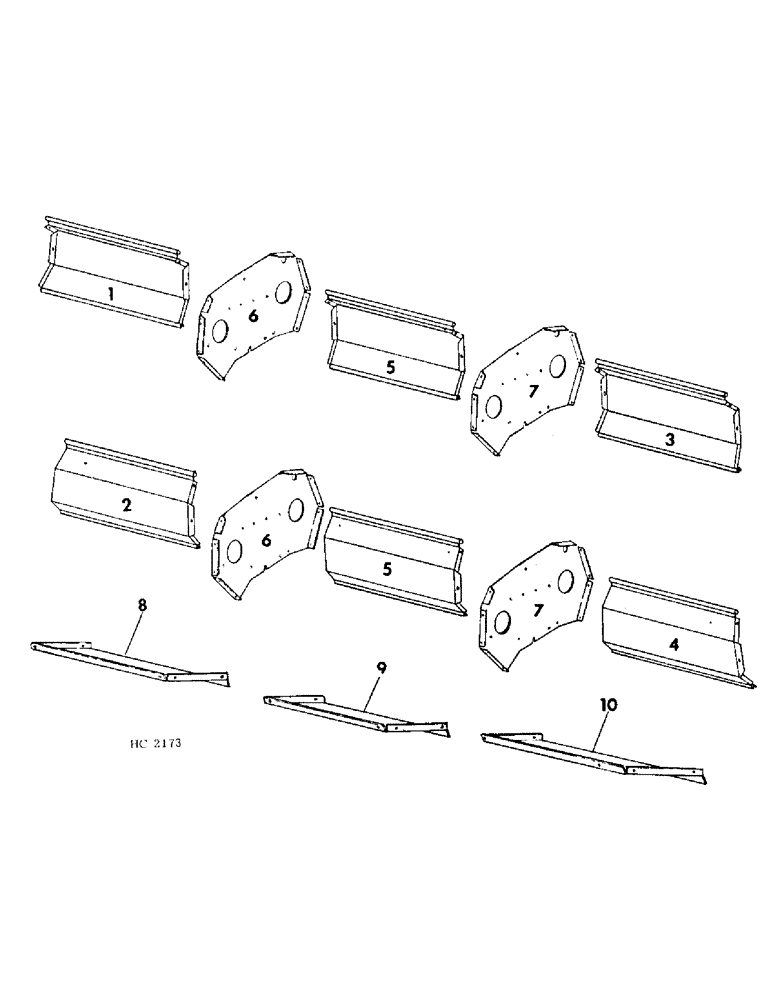

Схема запчастей Case IH 510 - (A-10) - PARTITION PANELS AND BAFFLES
4
1
2
5
9
3
10
7
8
6
5
6
7

Артикул

Название

Примечание

Количество

1

815853C1

PANEL

fert partition outer LH, 13 x 7

1шт.

1

815859C1

PANEL

fert partition outer LH, 16 x 7

1шт.

1

815865C1

PANEL

fert partition outer LH, 20 x 6, 18 x 7 and 16 x 8

1шт.

1

815871C1

PANEL

fert partition outer LH, 24 x 6 and 21 x 7

1шт.

1

815877C1

PANEL, fert partition outer LH, for use on 20 x 8 and 16 x 10 machines built prior to the 1973 season

1шт.

1

816932C1

PANEL

fert partition outer LH, for use on 20 x 8 and 16 x 10 machines built 1973 season and since

1шт.

2

815854C1

PANEL

fert partition outer LH, 16 x 7

1шт.

2

815866C1

PANEL

fert partition outer LH, 20 x 6, 18 x 7 and 16 x 8

1шт.

2

815872C1

PANEL

fert partition outer LH, 24 x 6 and 21 x 7

1шт.

2

815878C1

PANEL, fert partition outer LH, for use on 20 x 8 and 16 x 10 machines built prior to the 1973 season

1шт.

2

816933C1

PANEL

fert partition outer LH, for use on 20 x 8 and 16 x 10 machines built 1973 season and since

1шт.

3

815854C1

PANEL

fert partition outer RH, 13 x 7

1шт.

3

815860C1

PANEL

fert partition outer RH, 16 x 7

1шт.

3

815866C1

PANEL

fert partition outer RH, 20 x 6, 18 x 7 and 16 x 8

1шт.

3

815872C1

PANEL

fert partition outer RH, 24 x 6 and 21 x 7

1шт.

3

815878C1

PANEL, fert partition outer RH, for use on 20 x 8 and 16 x 10 machines built prior to the 1973 season

1шт.

3

816933C1

PANEL

fert partition outer RH, for use on 20 x 8 and 16 x 10 machines built 1973 season and since

1шт.

4

815853C1

PANEL

fert partition outer RH, 13 x 7

1шт.

4

815859C1

PANEL

fert partition outer RH, 16 x 7

1шт.

4

815865C1

PANEL

fert partition outer RH, 20 x 6, 18 x 7 and 16 x 8

1шт.

4

815871C1

PANEL

fert partition outer RH, 24 x 6 and 21 x 7

1шт.

4

815877C1

PANEL, fert partition outer RH, for use on 20 x 8 and 16 x 10 machines built prior to the 1973 season

1шт.

4

816932C1

PANEL

fert partition outer RH, for use on 20 x 8 and 16 x 10 machines built 1973 season and since

1шт.

5

815884C1

PANEL, fert partition intermediate, use on 20 x 8 and 16 x 10 machines built prior to the 1973 season

2шт.

5

815881C1

PANEL

fert partition centre

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

6

816954C2

BAFFLE

hopper LH

1шт.

7

816955C2

BAFFLE

hopper RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

8

815814C1

PANEL

grain partition outer LH, 13 x 7

1шт.

8

815818C1

PANEL

grain partition outer LH, 16 x 7

1шт.

8

815822C1

PANEL

grain partition outer LH, 20 x 6, 18 x 7 and 16 x 8

1шт.

8

815826C1

PANEL

grain partition outer LH, 24 x 6 and 21 x 7

1шт.

8

815111C1

PANEL, grain partition outer LH, for use on 20 x 8 and 16 x 10 machines built prior to the 1973 season

1шт.

8

816930C1

PANEL

grain partition outer LH, for use on 20 x 8 and 16 x 10 machines built 1973 season and since

1шт.

9

815815C1

PANEL

grain partition outer RH, 13 x 7

1шт.

9

815819C1

PANEL

grain partition outer RH, 16 x 7

1шт.

9

815823C1

PANEL

grain partition outer RH, 20 x 6, 18 x 7 and 16 x 8

1шт.

9

815827C1

PANEL

grain partition outer RH, 24 x 6 and 21 x 7

1шт.

9

815112C1

PANEL, grain partition outer RH, for use on 20 x 8 and 16 x 10 machines built prior to the 1973 season

1шт.

9

816931C1

PANEL

grain partition outer RH, for use on 20 x 8 and 16 x 10 machines built 1973 season and since

1шт.

10

815832C1

PANEL

grain partition centre

1шт.

10

815114C1

PANEL, grain partition intermediate, 20 x 8 and 16 x 10, machines, Serial Range: prior-1973

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex-hd

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

12шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

Выбрано товаров: 54
