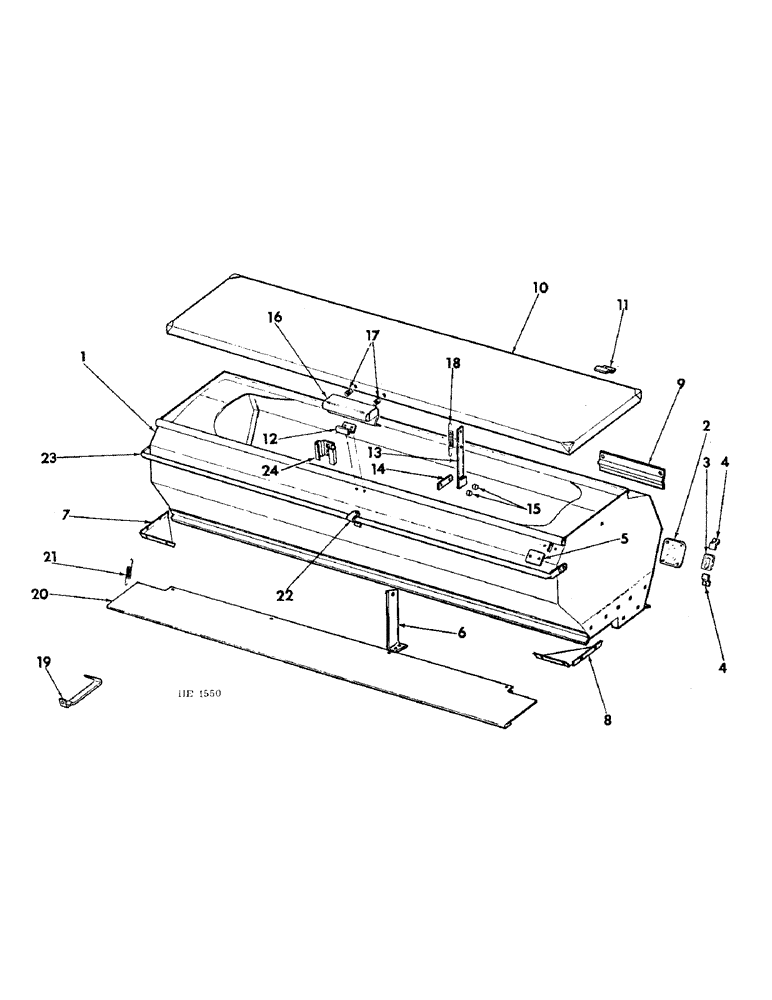

Запчасти Case IH 510 (A-08) - GRAIN AND FERTILIZER HOPPER UNIT

1

HOPPER ASSY, grain & fertilizer, 13 x 7, order 1-816650C2, hopper assy, 2-603264R1 window and 4-604320R1, clip

1шт.

1

816650C2

HOPPER ASSY, grain & fertilizer, 13 x 7, machines 1970-1973 season

1шт.

1

819056C92

HOPPER

ASSY, grain & fertilizer, 13 x 7, includes 1-819809C1, prod graph machines built 1973 & since

1шт.

1

HOPPER ASSY, grain & fertilizer, 16 x 7, order 1-816651C1, hopper assy, 2-603264R1, window and 4-604320R1, clip

1шт.

1

816651C2

HOPPER

ASSY, grain & fertilizer, 16 x 7, machines 1970-1973 season

1шт.

1

816057C94

HOPPER ASSY, grain & fertilizer, 16 x 7, includes 1-819809C1, prod graph machines built 1973 & since

1шт.

1

HOPPER ASSY, grain & fertilizer, 20 x 6, 18 x 7 and 16 x 8, order 1-816652C2, hopper assy, 2-603264R1, window and 4-604320R1, clip

1шт.

1

816652C2

HOPPER ASSY, grain & fertilizer, 20 x 6, 18 x 7 and 16 x 8, machines 1970-1973 season

1шт.

1

819058C93

HOPPER

ASSY, grain & fertilizer, 20 x 6, 18 x 7 and 16 x 8, includes 1-819809C1, prod graph machines built 1973 & since

1шт.

1

HOPPER ASSY, grain & fertilizer, 24 x 6 and 21 x 7, order 1-816653C3, hopper assy, 2-603264R1, window and 4-604320R1, clip

1шт.

1

816653C3

HOPPER

ASSY, grain & fertilizer, 24 x 6 and 21 x 7, machines 1970-1973 season

1шт.

1

819059C93

HOPPER

ASSY, grain & fertilizer, 24 x 6 and 21 x 7, includes 1-819809C1, prod graph machines built 1973 & since

1шт.

1

HOPPER ASSY, grain & fertilizer, 20 x 8 and 16 x 10, order 1-816654C1, hopper assy, 2-603264R1, window and 4-604320R1, clip

1шт.

1

816654C1

HOPPER ASSY, grain & fertilizer, 20 x 8 and 16 x 10, machines 1970 - 1973 season

1шт.

1

819061C93

HOPPER

ASSY, grain & fertilizer, 20 x 8 and 16 x 10, includes 1-819809C1, prod graph machines 1973 & since

1шт.

819809C2

DECAL

PRODUCT GRAPHIC, caution, no riders

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

598808R1

SCREW,Short NK, 3/8"-16 x 1/2", G5, Full Thd

BOLT, 3/8-16 x 1/2 crg

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 11-13 x 7, 13-16 x 7, 24 x 6, 21 x 7, 12-20 x 6, 18 x 7, 16 x 8, 16-20 x 8, 16 x 10

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd, 2-13 x 7, 3-16 x 7, 20 x 6, 18 x 7, 16 x 8, 7-24 x 6, 21 x 7, 20 x 8, 16 x 10

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

2

815085C1

WINDOW

grain viewing, machines, Serial Range: prior-1970

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt-pan-hd

8шт.

21801R1

WASHER

.281 x .734 x .056

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

3

603264R1

GLASS

WINDOW, seed vision, machines built 1970 & since

2шт.

4

604320R1

CLIP

seed vision window, machines built 1970 & since

4шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 slt-pan-hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

815115C1

PLATE

BAR, fertilizer indicator access hole, not w/fert level indicator attach

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

816733C1

SUPPORT

hopper inner, 20 x 8 & 16 x 10, not w/fert attach, machines built 1971 & since

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

7

816734C1

PLATE

SUPPORT, hopper end LH

1шт.

8

816735C1

PLATE

SUPPORT, hopper end RH, not w/fert attach, machines built 1971 & since

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

815087C1

PLATE

REINFORCEMENT, hopper/axle, 13 x 7, 16 x 7, 18 x 7, 20 x 6 and 16 x 8

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9

815088C1

REINFORCEMENT

hopper/axle LH

1шт.

9

815089C1

REINFORCEMENT

hopper/axle RH, 24 x 6 and 21 x 7

1шт.

9

815090C1

REINFORCEMENT

hopper/axle LH

1шт.

9

815091C1

REINFORCEMENT

hopper/axle RH, 20 x 8 and 16 x 10

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

815155C1

COVER ASSY

hopper, 13 x 7

1шт.

10

815157C2

COVER

ASSY, hopper, 16 x 7

1шт.

10

815159C1

COVER

ASSY, hopper, 20 x 6, 18 x 7 & 16 x 8

1шт.

10

815161C1

COVER

ASSY, hopper, 24 x 6 and 21 x 7

1шт.

10

815163C1

COVER ASSY

hopper, 20 x 8 and 16 x 10

1шт.

11

815173C1

HINGE

cover, 5 used 13 x 7 and 16 x 7, 7 used 20 x 6, 24 x 6, 18 x 7, 21 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

11

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 sltd-pan-hd, 2 used per hinge

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per screw 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per screw 1/4"

1шт.

12

815175C1

CLIP

latch

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4-20 x 1/2 carriage

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

815176C1

ARM

cover hold open, 1 used 13 x 7, 2 used 20 x 6, 24 x 6, 16 x 7, 18 x 7, 21 x 7, 16 x 8, 20 x 8 and 16 x 10

1шт.

24660R1

CLEVIS PIN,5/16" x .719"

PIN, 5/16 x 23/32 rod-end-dld, 1 pin used per arm

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), , 1 per pin 3/32" x 1/2"

1шт.

619855R1

WASHER

.344 x .750 x .054, 3 washers used per arm

1шт.

14

815178C1

SPACER

BAR, hold open arm retainer, 1 per cover arm

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd, 2 used per bar

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

15

594536R1

BUSHING

retainer bar, 2 used per retainer bar

1шт.

16

815174C1

LATCH

cover

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 hex lock PHC

2шт.

17

N32176

SPRING

cover latch

2шт.

18

398304R1

SPRING

cover return, 1 per cover arm

1шт.

19

603538R1

BRACKET

BRACE, hopper centre, 1 used 20 x 6, 24 x 6, 20 x 8, 16 x 8, 18 x 7, 16 x 10 , 21 x 7

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 type 5 crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

815840C1

COVER

ASSY, fertilizer, 13 x 7

1шт.

20

815841C1

COVER

ASSY, fertilizer, 16 x 7

1шт.

20

815842C1

COVER

ASSY, fertilizer, 20 x 6, 18 x 7 and 16 x 8

1шт.

20

815843C1

COVER

ASSY, fertilizer, 24 x 6 and 21 x 7

1шт.

20

815844C1

COVER ASSY

fertilizer, 20 x 8 and 16 x 10, used w/fert attach

1шт.

21

815891C1

SPRING

fertilizer cover, used w/fert attach

4шт.

22

816764C1

CLAMP

hand rail, 1 used 13 x 7 and 16 x 7, 2 used 20 x 6, 24 x 6 and 21 x 7, for drills, Serial Range: shipped-U.K.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 1 per clamp

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8-16 x 2 carriage, 1 bolt used per clamp

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

23

816998C1

TUBE

hand rail, 13 x 7

2шт.

23

816998C1

TUBE

hand rail 46 inch, 20 x 6

1шт.

23

816999C1

TUBE

hand rail 80 inch, 20 x 6

1шт.

23

816883C1

TUBE

hand rail RH, 24 x 6 and 21 x 7

1шт.

23

816765C1

TUBE,1.05" OD, 55.7, 4.5" Length

hand rail 56 inch, 24 x 6 and 21 x 7

1шт.

23

816765C1

TUBE,1.05" OD, 55.7, 4.5" Length

hand rail, 16 x 7, for drills shipped to U.K.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

24

398976R1

BRACKET

SMV emblem mtg, for service see SMV emblem

1шт.
