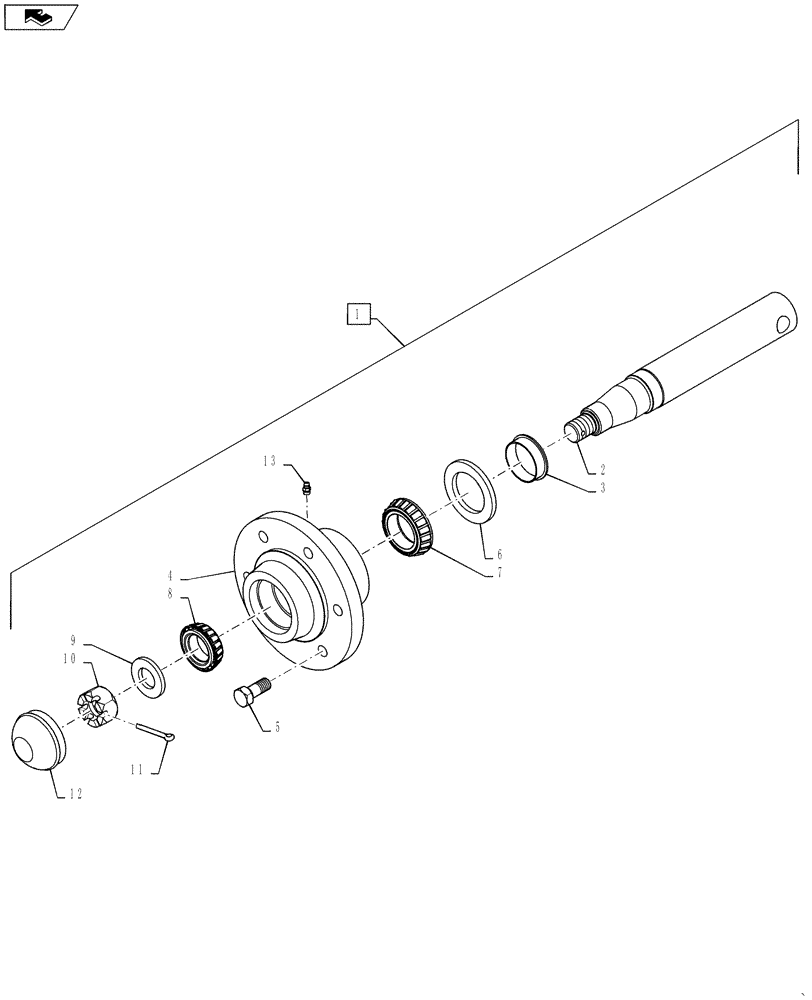

Запчасти Case IH 500T (44.901.AB[01]) - HUB SPINDLE ASSY H615-11 (44) - WHEELS

1

84327548

HUB

H615-11 Incl 2 - 15, Start Serial: YFS061075

1шт.

2

NSS

NOT SOLD SEPARAT

Spindle Inc in {1} 2 X 11.5, Start Serial: YFS061075

1шт.

3

51200202

SLEEVE

Wear, Start Serial: YFS061075

1шт.

4

4040

HUB ASSY.

H615, Start Serial: YFS061075

1шт.

5

84381572

BOLT

Wheel .563 Gr5, Start Serial: YFS061075

6шт.

6

3685

OIL SEAL

Hub , Start Serial: YFS061075

1шт.

7

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

, Start Serial: YFS061075

1шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

, Start Serial: YFS061075

1шт.

9

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

, Start Serial: YFS061075

1шт.

10

1629

SLOTTED NUT,1"-14, G2

, Start Serial: YFS061075

1шт.

11

1354

COTTER PIN,3/16" x 1 1/2"

, Start Serial: YFS061075

1шт.

12

51200086

HUB CAP

Dust , Start Serial: YFS061075

1шт.

13

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

, Start Serial: YFS061075

1шт.

14

1671

BEARING CUP,45.24mm ID x 77.8mm OD x 19.84mm W

Inner Not Shown Incl With Hub , Start Serial: YFS061075

1шт.

15

1660

BEARING CUP

Outer Not Shown Incl With Hub , Start Serial: YFS061075

1шт.
