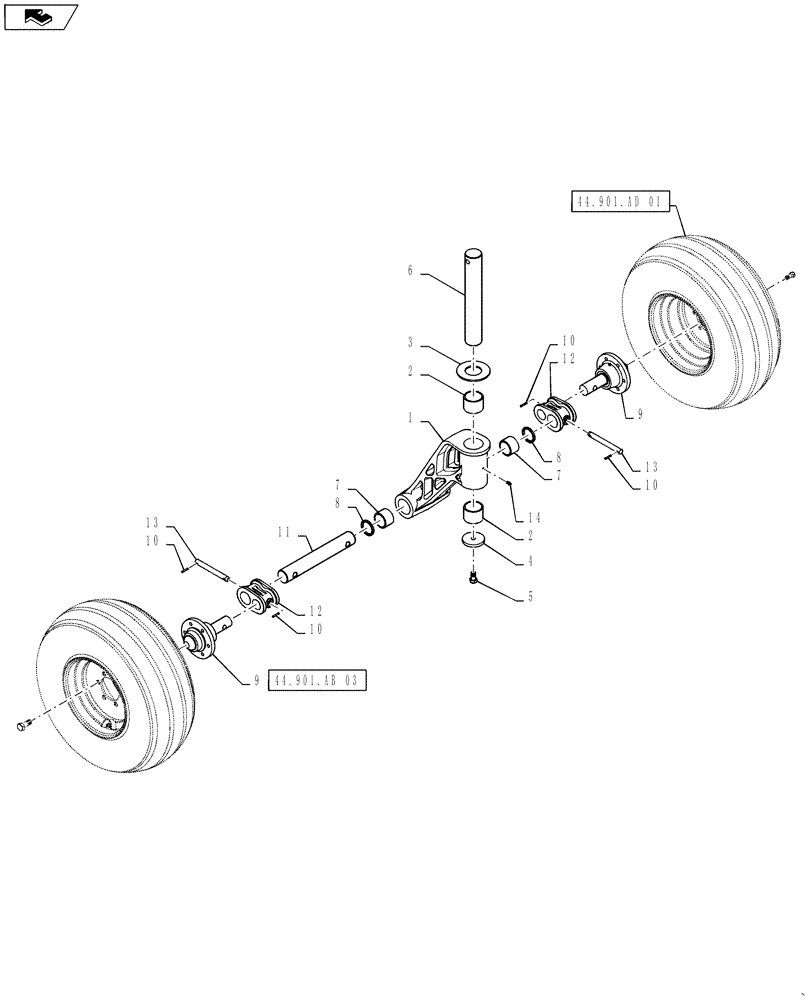

Запчасти Case IH 500T (44.901.AA[05]) - DOUBLE CASTER HI FLOTATION 25 FOOT (44) - WHEELS

1

84398451

CASTING

Walking Castor

1шт.

2

5738

BUSHING

3.5 X 3 X2.5

2шт.

3

432574A1

WEAR PAD

Nylon Castor Disk

1шт.

4

84512070

PLATE

Castor Cap

1шт.

5

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

6

84295094

PIN

1шт.

7

84327152

BUSHING

Polylube

2шт.

8

84331837

SEAL

Ring Wiper

2шт.

9

84472211

HUB

Spindle Assy H615

2шт.

10

84158592

LOCK PIN

.250 X 1

4шт.

11

84267986

SHAFT

Axle

1шт.

12

84132158

CASTING

Walk Beam

2шт.

13

87671096

PIN

Walking Beam

2шт.

14

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.
