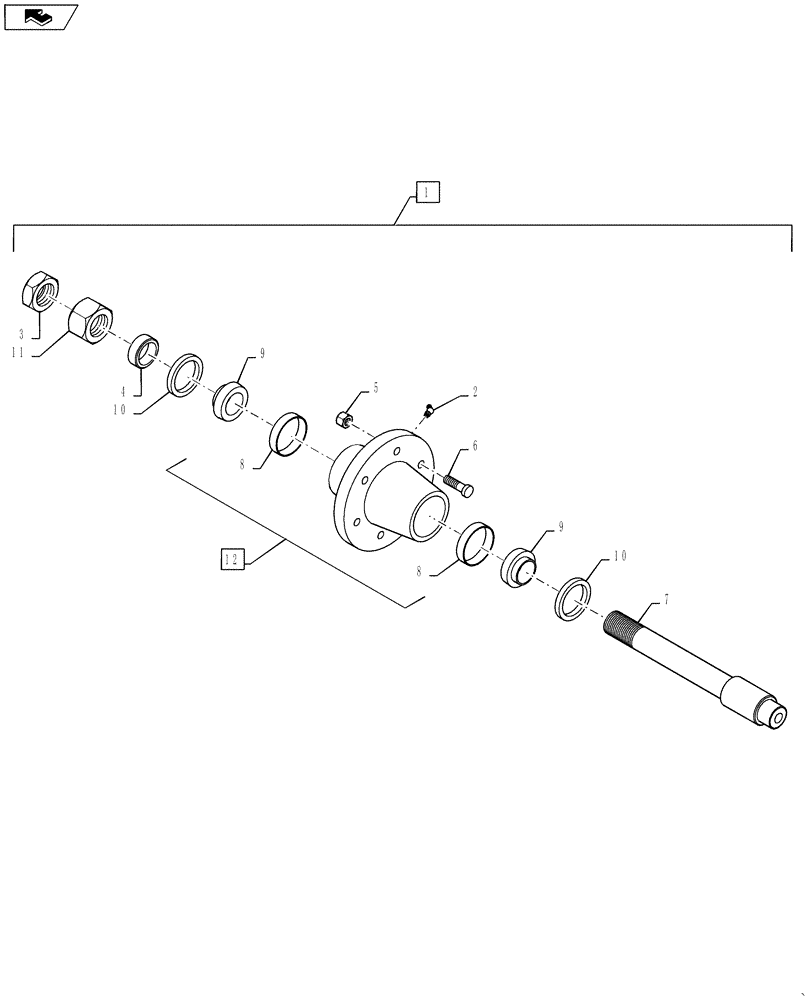

Запчасти Case IH 500T (44.901.AA[02]) - HUB AND SPINDLE ASSEMBLY H617 (44) - WHEELS

1

GD-161A

HUB

H617 Incl 2 - 12, Start Serial: YFS061075

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

, Start Serial: YFS061075

1шт.

3

87010729

JAM NUT,Jam, 1 1/2"-6, G5

, Start Serial: YFS061075

1шт.

4

GD-162

SPACER

, Start Serial: YFS061075

1шт.

5

F23214

WHEEL NUT

Hub Wheel , Start Serial: YFS061075

6шт.

6

1662

BOLT

Hub Wheel , Start Serial: YFS061075

6шт.

7

GD-161

SPINDLE

Caster Wheel , Start Serial: YFS061075

1шт.

8

72062

BEARING CUP,69.04mm OD x 15.08mm W

, Start Serial: YFS061075

2шт.

9

72012

BEARING CONE

, Start Serial: YFS061075

2шт.

10

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

, Start Serial: YFS061075

2шт.

11

425-1024

NUT,1 1/2"-6, G5

, Start Serial: YFS061075

1шт.

12

87505491

HUB

Incl 2, 5, 6, 8, Start Serial: YFS061075

1шт.
