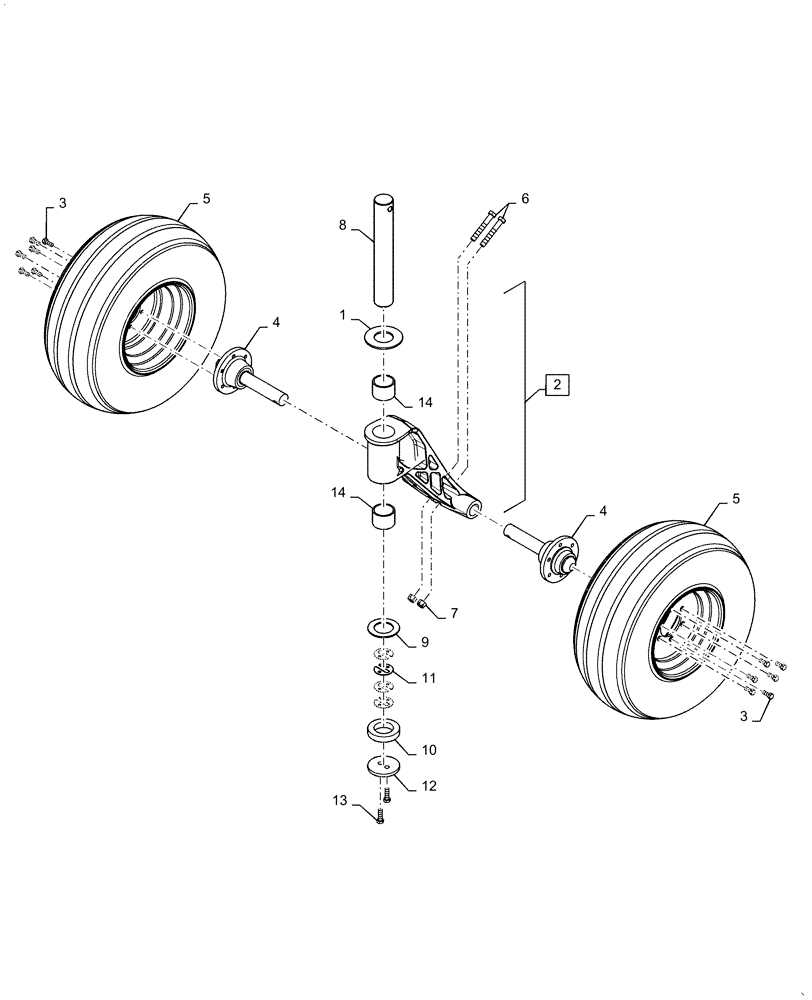

Запчасти Case IH 500T (44.901.AA[01]) - DOUBLE CASTER ASSY STANDARD 25,30,40 FOOT (44) - WHEELS

1

432574A1

WEAR PAD

Caster Disc

1шт.

2

87691244

HOUSING

Fixed Castor Inlc 14

1шт.

3

84381572

BOLT

Wheel .563

6шт.

4

84327548

HUB

Spindle H615-11

2шт.

5

87696880

TYRE/TIRE

Wheel 15 X 10 Silver

2шт.

5

87696881

TYRE/TIRE

Wheel 15 X 10 White

2шт.

6

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

7

280375

NUT,3/4"-10, GC

2шт.

8

47527932

PIN

76.2 x 505

1шт.

9

47527935

SPACER

78 ID 127 OD

1шт.

10

47527937

PAD

Polyurethane

1шт.

11

47527939

SPACER

14 gauge

4шт.

12

47527941

PLATE

Castor Cap

1шт.

13

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

14

47544406

BUSHING

3.0 X 3.5 X 2.5

2шт.
