Запчасти Case IH 500T (39.100.AD[01]) - OPENER ROCKSHAFTS AND TUBES (39) - FRAMES AND BALLASTING

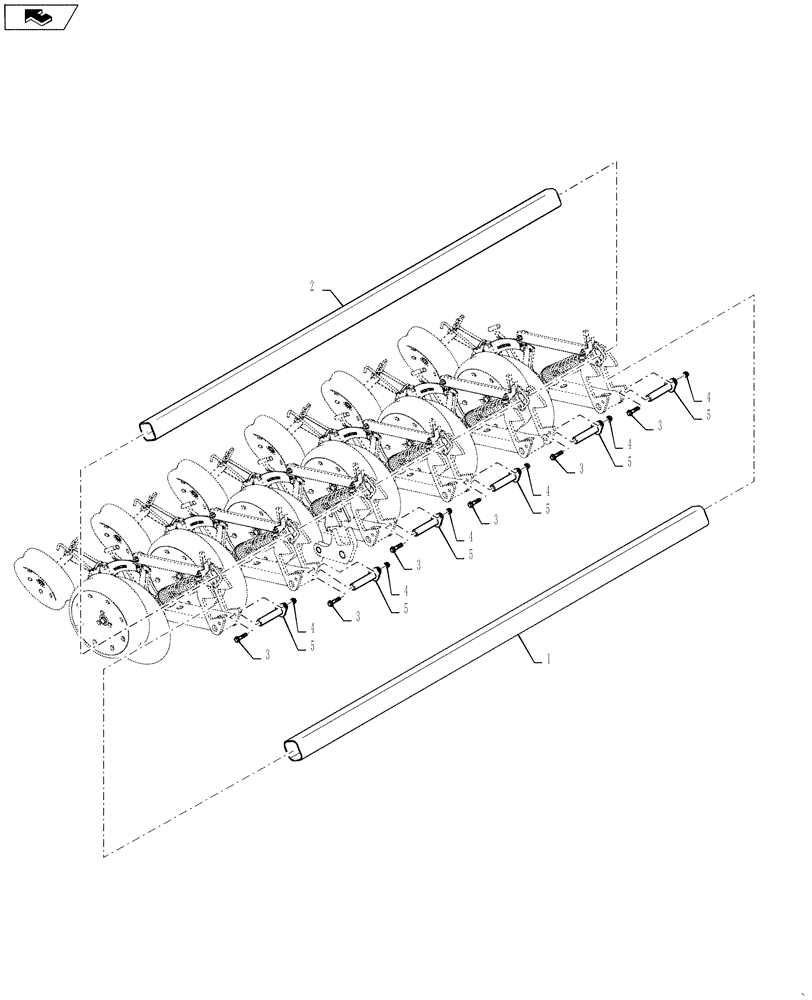

Схема запчастей Case IH 500T - (39.100.AD[01]) - OPENER ROCKSHAFTS AND TUBES (39) - FRAMES AND BALLASTING
1
3
3
3
3
5
4
5
5
3
5
4
4
5
2
5
4
home
4
3
4

№

Артикул

Название

Примечание

Количество

1

84297244

ROCKSHAFT

Narrow And Wide 25 Ft And 30 Ft 8 Opener 8SS

1шт.

1

84466922

ROCKSHAFT

Narrow And Wide 25 Ft 6" Opener Right Tilt 8SS

1шт.

1

84466919

ROCKSHAFT

Narrow And Wide 25 Ft 6" Opener Left Tilt 6SS

1шт.

1

84479450

ROCKSHAFT

Narrow And Wide 25 Ft 6" Opener Left Tilt 6SS

1шт.

1

84530216

ROCKSHAFT

Narrow And Wide 25 Ft 10" Opener 6SS

1шт.

1

84467807

Narrow And Wide 25 Ft 10" Opener Left Tilt 4SS

1шт.

1

84467813

ROCKSHAFT

Narrow And Wide 25 Ft 10" Opener Left Tilt 5SS

1шт.

1

84467816

Narrow And Wide 25 Ft 10" Opener Right Tilt 5SS

1шт.

1

84467811

ROCKSHAFT

Narrow And Wide 25 Ft 10" Opener Right Tilt 4SS

1шт.

1

84297240

ROCKSHAFT

Narrow And Wide 30 Ft 7.5" Opener Left Tilt 8SS

1шт.

1

84297241

ROCKSHAFT

Narrow And Wide 30 Ft 7.5" Opener Right Tilt 8SS

1шт.

1

84530600

ROCKSHAFT

Narrow And Wide 30 Ft 10" Opener Left Tilt 6SS

1шт.

1

84530871

ROCKSHAFT

Narrow And Wide 30 Ft 10" Opener Right Tilt 6SS

1шт.

1

84269350

ROCKSHAFT

Narrow And Wide 40 Ft 7.5" Opener 13SS

1шт.

1

84269346

ROCKSHAFT

Narrow And Wide 40 Ft 7.5" Opener 13SS

1шт.

1

84269362

ROCKSHAFT

Narrow And wide 40 Ft 7.5" Opener Left And Right Tilt 9SS

1шт.

1

84272435

ROCKSHAFT

Narrow And Wide 40 Ft 7.5" Opener Left And Right Tilt 10SS

1шт.

1

84364333

ROCKSHAFT

Narrow And Wide 40 Ft 10" Opener 10SS

1шт.

1

84364329

ROCKSHAFT

Narrow And Wide 40 Ft 10" Opener Left Tilt 7SS

1шт.

1

84269369

ROCKSHAFT

Narrow And Wide 40 Ft 10" Opener Right Tilt 7SS

1шт.

2

84472166

TUBE

Top Link Offset 25, 30 Ft

1шт.

2

84467823

TUBE

Top Link Center 25 Ft

1шт.

2

84472164

TUBE

Top Link Offset 25Ft 4SS

1шт.

2

84269342

TUBE

Top Link Centert 30 Ft

1шт.

2

84366862

TUBE

Top Link Offset 30,40 Ft

1шт.

2

84366855

TUBE

Top Link Offset 40Ft

1шт.

2

84366859

TUBE

Top Link Offset 40Ft 10SS

1шт.

3

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

4

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

5

47359245

PIN

Front

1шт.

Выбрано товаров: 30
