Запчасти Case IH 500T (39.100.AB[09]) - TANK FRAME PLATFORM 25/30/40 FOOT (39) - FRAMES AND BALLASTING

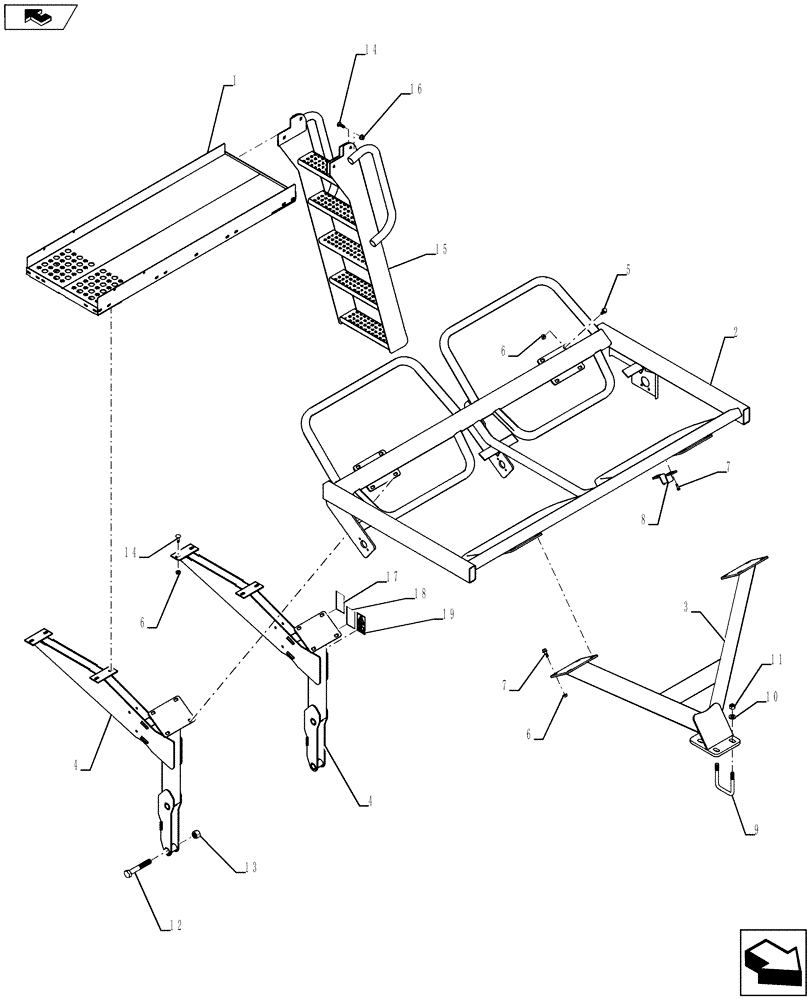

Схема запчастей Case IH 500T - (39.100.AB[09]) - TANK FRAME PLATFORM 25/30/40 FOOT (39) - FRAMES AND BALLASTING
16
4
8
2
19
7
13
11
17
10
9
1
6
15
home
5
12
6
6
18
14
3
4
14
7

Артикул

Название

Примечание

Количество

1

84489290

PLATFORM

1шт.

2

84497460

SUPPORT

Upper Tank

1шт.

3

84489261

SUPPORT

Lower Front Tank

1шт.

4

84489280

SUPPORT

Lower Rear Tank

2шт.

5

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

16шт.

6

86521607

FLANGE NUT,Flg, 1/2"-13, G5

24шт.

7

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

8

84410307

STAY

4шт.

9

7818

U-BOLT

3/4" - 10 X 4.031" W X 5.625" D

2шт.

10

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

11

280954

NUT,3/4"-10, G5

4шт.

12

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

4шт.

13

87304132

NUT,1"-8, GC

4шт.

14

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

12шт.

15

47408956

LADDER

1шт.

16

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

17

47405861

WARNING DECAL

Hearing Protection, ISO

1шт.

18

47405860

WARNING DECAL

Wear Chemical Mask

1шт.

19

84004732

CAUTION DECAL

Caution Falling

1шт.

Выбрано товаров: 19
