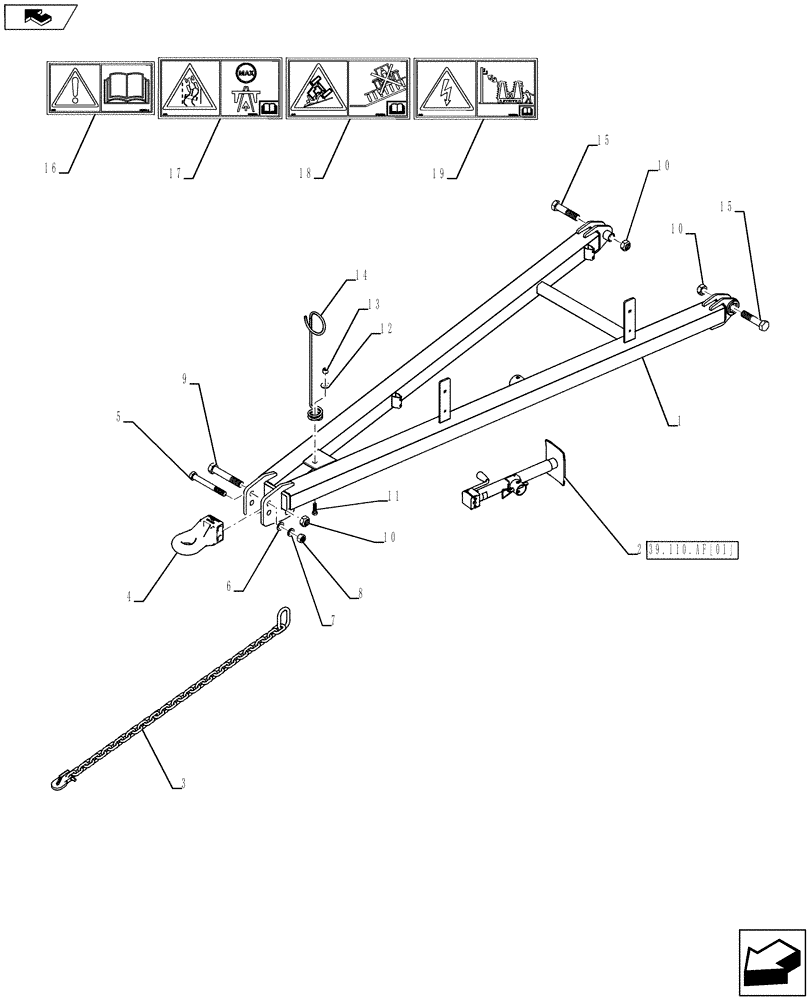

Запчасти Case IH 500T (39.100.AB[01]) - FRONT HITCH FRAME (39) - FRAMES AND BALLASTING

1

84410557

FRAME

25/30 Foot Models

1шт.

1

84349248

HITCH

40 Foot Models

1шт.

2

7972

JACK

1шт.

3

87619912

CHAIN

1шт.

4

87506220

HITCH

Cat IV

1шт.

5

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

6

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

2шт.

7

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

8

86511609

NUT,1"-8, G8

2шт.

9

87552232

BOLT,Hex, 1 1/4" - 7 x 7 1/2", Gr 5

1шт.

10

4769

LOCK NUT,1 1/8"-7, GB

3шт.

11

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

12

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

13

85700693

NUT,5/8" - 11, Gr C

1шт.

14

87506300

HOLDER

1шт.

15

3973

BOLT

2шт.

16

47358801

CAUTION DECAL

1шт.

17

47403730

WARNING DECAL

Warning, Loss Of Control, ISO

1шт.

18

47405862

WARNING DECAL

Warning, Rollover Hazard, ISO

1шт.

19

47405863

WARNING DECAL

Warning, Electrical Hazard, ISO

1шт.
