Запчасти Case IH 500T (39.100.AA[02]) - WING FRONT FRAME SPAR 40 FT DRILL (39) - FRAMES AND BALLASTING

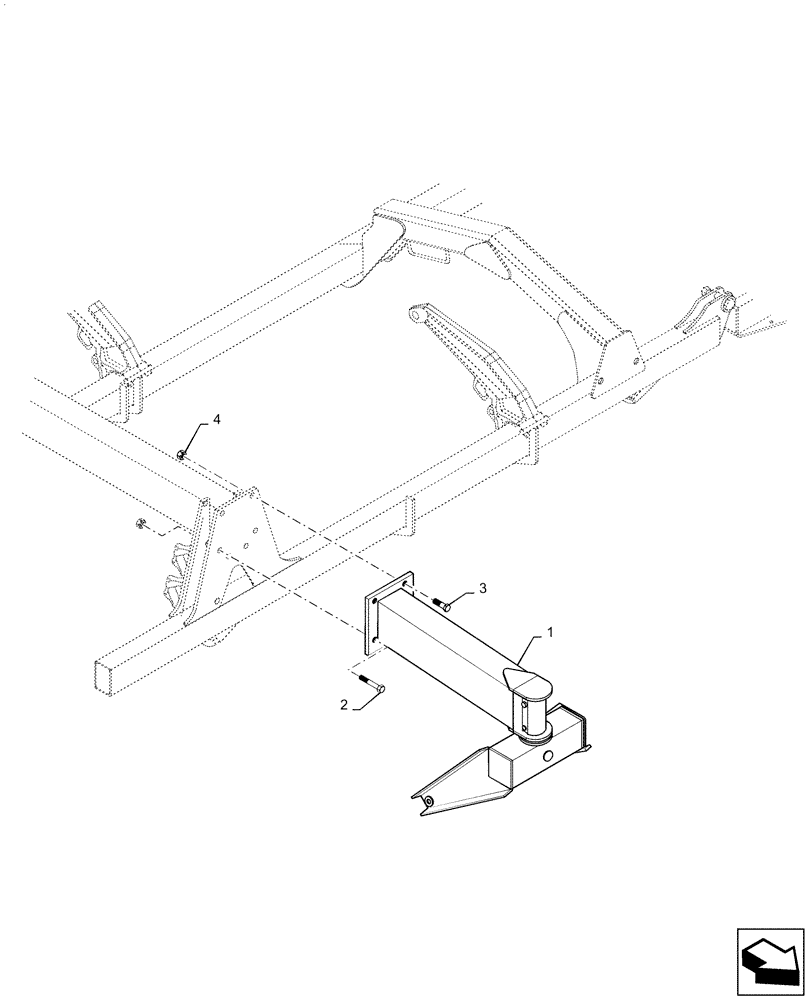

Схема запчастей Case IH 500T - (39.100.AA[02]) - WING FRONT FRAME SPAR 40 FT DRILL (39) - FRAMES AND BALLASTING
2
1
3
4

Артикул

Название

Примечание

Количество

1

84391023

BRACKET

Front Wing Spar Red , Start Serial: YFS061001

1шт.

1

84398442

BRACKET

Front Wing Spar Blue , Start Serial: YFS061001

1шт.

2

47400859

BOLT

.875 X 6.5", Start Serial: YFS061001

2шт.

3

280488

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

, Start Serial: YFS061001

2шт.

4

232-41414

NUT

.875 UNC, Start Serial: YFS061001

4шт.

Выбрано товаров: 5
