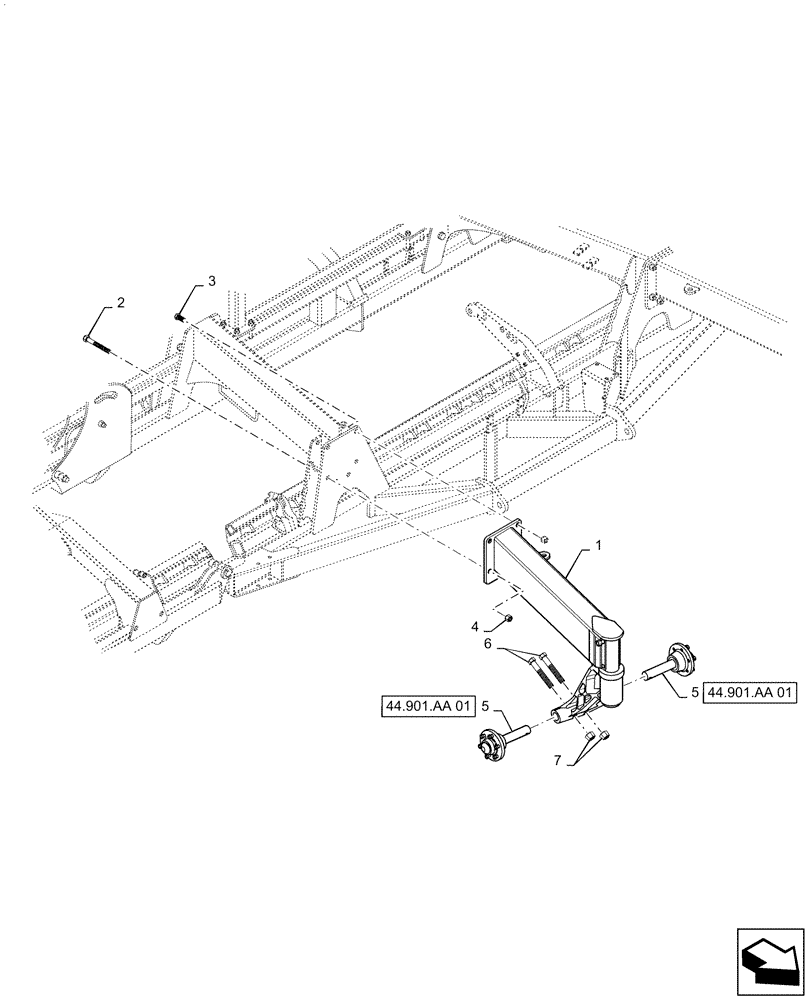

Запчасти Case IH 500T (39.100.AA[01]) - FRONT CENTER FRAME SPAR (39) - FRAMES AND BALLASTING

1

84341944

FRAME

Front Spar Center Right Red , Start Serial: YFS061001

1шт.

1

84349684

FRAME

Front Spar Center Right Blue , Start Serial: YFS061001

1шт.

1

84341943

FRAME

Front Spar Center Left Red , Start Serial: YFS061001

1шт.

1

84349683

FRAME

Front Spar Center Left Blue , Start Serial: YFS061001

1шт.

2

47400882

BOLT

.875 X 7.5", Start Serial: YFS061001

2шт.

3

280488

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

, Start Serial: YFS061001

2шт.

4

232-41414

NUT

.875" Lock , Start Serial: YFS061001

4шт.

5

84327548

HUB

H615, Start Serial: YFS061001

1шт.

6

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

, Start Serial: YFS061001

2шт.

7

280375

NUT,3/4"-10, GC

, Start Serial: YFS061001

2шт.
