(35.945.AA[02]) - MANIFOLD, HYD, MANUAL DOWN PRESSURE – 25/30

Запчасти Case IH 500T (35.945.AA[02]) - MANIFOLD, HYD, MANUAL DOWN PRESSURE – 25/30 (35) - HYDRAULIC SYSTEMS

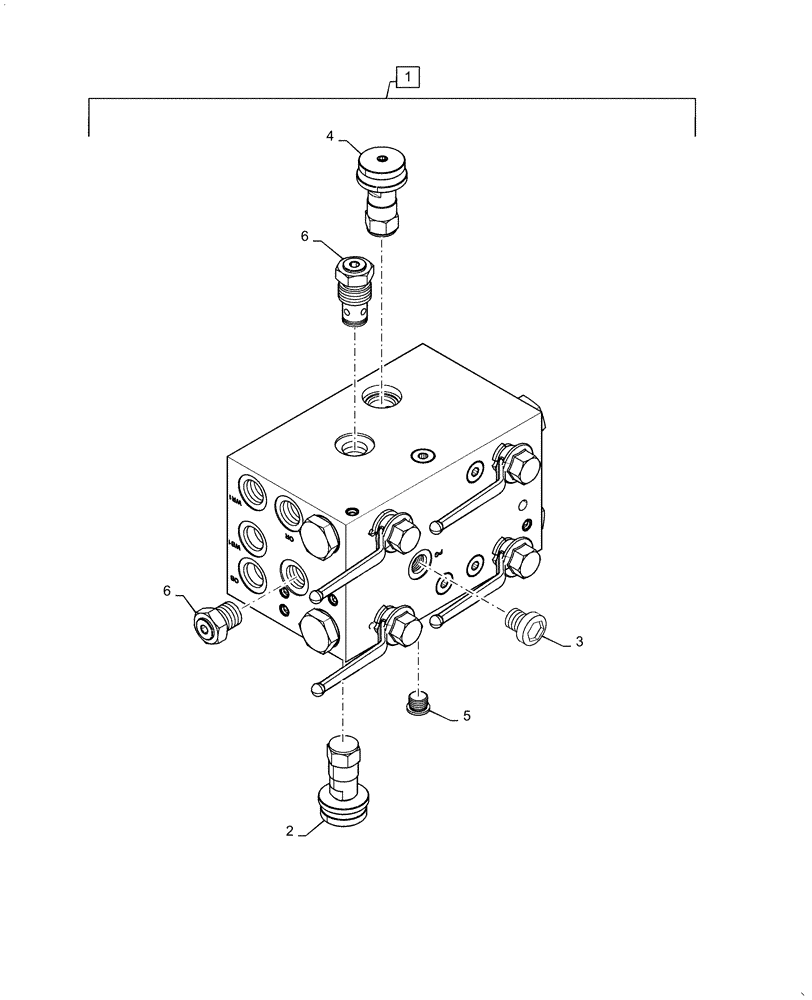

Схема запчастей Case IH 500T - (35.945.AA[02]) - MANIFOLD, HYD, MANUAL DOWN PRESSURE – 25/30 (35) - HYDRAULIC SYSTEMS
5
6
1
4
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47448804

HYDRAULIC MANIFOLD

MANUAL DOWN PRESSURE – 25/30 Incl 2 - 6

1шт.

2

47488316

PILOT VALVE

Incl O-Rings That Would Come In Seal Kit 47488309

1шт.

3

84547961

ORIFICE

1шт.

4

47488313

VALVE PRESSURE RELIE

1шт.

5

47448414

VALVE PRESSURE RELIE

1шт.

6

47448409

CHECK VALVE

2шт.
