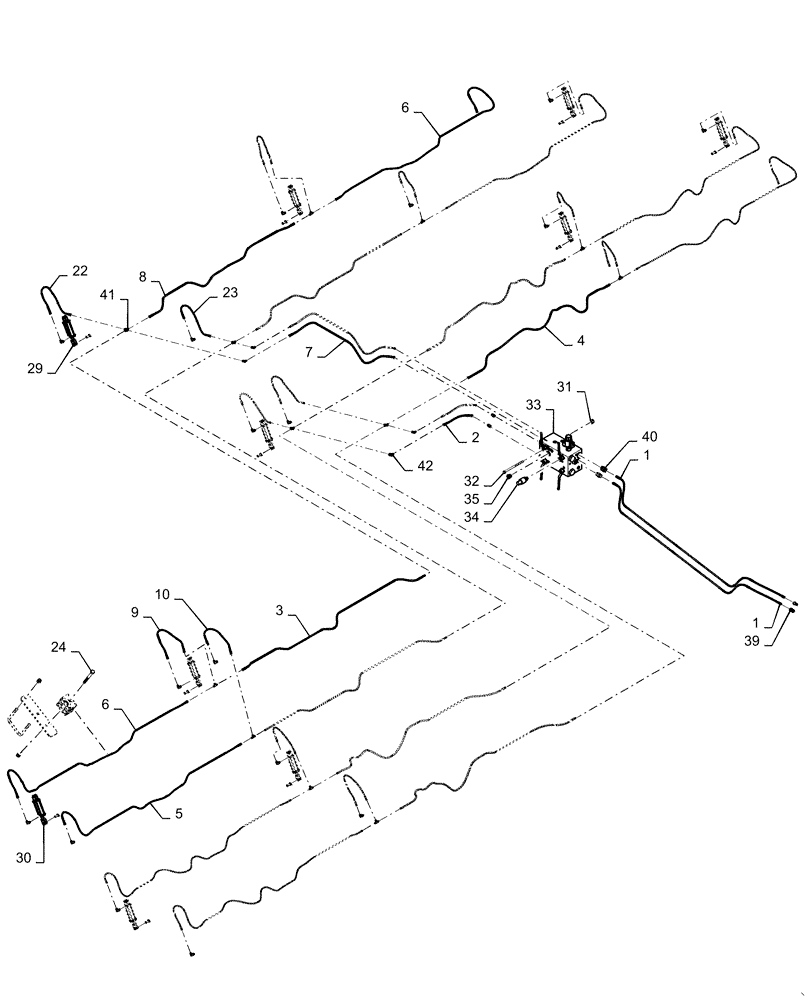

Запчасти Case IH 500 (35.560.AA[03.1]) - HYDRAULICS 60 FOOT (35) - HYDRAULIC SYSTEMS

1

47429664

HYDRAULIC HOSE

12.5 X 6750 mm

2шт.

2

47429668

HYDRAULIC HOSE

12.5 X 1000mm

2шт.

3

47598843

HYDRAULIC HOSE

12.5 X 4430mm

4шт.

4

47598844

HYDRAULIC HOSE

12.5 X 4200mm

2шт.

5

47598414

HYDRAULIC HOSE

10 X 5335mm

4шт.

6

47598415

HYDRAULIC HOSE

10 X 2570mm

4шт.

7

47429696

HYDRAULIC HOSE

12.5 X 2570mm

2шт.

8

47523462

HYDRAULIC HOSE

12.5 X 4150mm

2шт.

9

47429701

HYDRAULIC HOSE

10 X 1200mm

4шт.

10

47429704

HYDRAULIC HOSE

10 X 910mm

4шт.

22

47593421

HYDRAULIC HOSE

10 X 1455mm

2шт.

23

47593422

HYDRAULIC HOSE

10 X 1165mm

2шт.

24

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

4шт.

29

84526101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3.5 X 8 3000 PSI

2шт.

30

84526100

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 X 8 3000 PSI

8шт.

31

86629544

NUT,5/16” – 18, GR B

55шт.

32

88575

BOLT,Hex, 5/16" - 18 x 5", Gr 5

2шт.

33

47448808

HYDRAULIC MANIFOLD

In Cab

1шт.

34

87428328

PRESSURE SWITCH

High

1шт.

35

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

39

9412

QUICK MALE COUPLING

4шт.

40

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

8шт.

41

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

4шт.

42

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

6шт.
