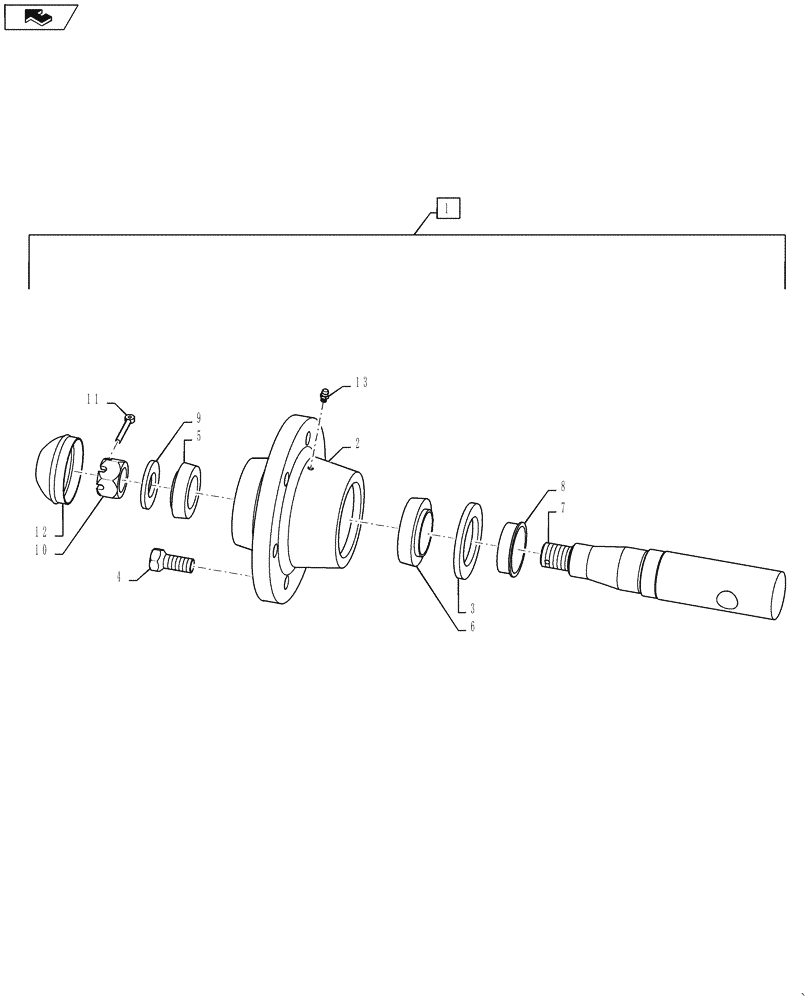

Запчасти Case IH 500 (44.901.AB[03]) - HUB AND SPINDLE ASSY H615 (44) - WHEELS

1

84472211

HUB

H615 Incl 2 - 13, Start Serial: YFS061075

1шт.

2

4040

HUB ASSY.

H615, Start Serial: YFS061075

1шт.

3

3685

OIL SEAL

, Start Serial: YFS061075

1шт.

4

84381572

BOLT

Wheel, Start Serial: YFS061075

6шт.

5

87732749

BEARING CONE

, Start Serial: YFS061075

1шт.

6

1672

ROLLER BEARING,45.24mm ID x 19.92mm W

2 X 9.69, Start Serial: YFS061075

1шт.

7

84472210

SPINDLE

, Start Serial: YFS061075

1шт.

8

51200202

SLEEVE

, Start Serial: YFS061075

1шт.

9

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

, Start Serial: YFS061075

1шт.

10

86020752

SLOTTED NUT

, Start Serial: YFS061075

1шт.

11

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

, Start Serial: YFS061075

1шт.

12

51200086

HUB CAP

, Start Serial: YFS061075

1шт.

13

1298

LUBE NIPPLE,1/4"-28 NPT x .54" lg

, Start Serial: YFS061075

1шт.
