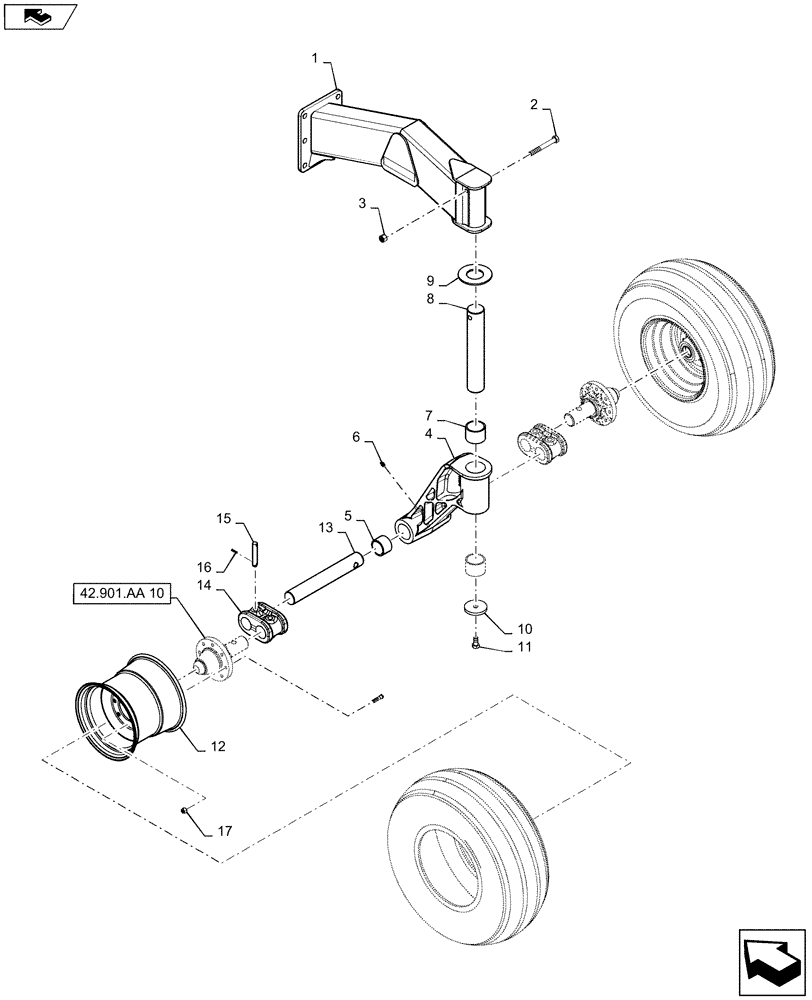

Запчасти Case IH 500 (44.901.AA[14]) - HIGH FLOAT CASTOR CENTER (44) - WHEELS

1

47595989

DECAL

Frame Front Red

1шт.

1

47595988

DECAL

Frame Front Blue

1шт.

2

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

1шт.

3

84156165

LOCK NUT

1шт.

4

84572769

WALKWAY

Castor

1шт.

5

87503180

BUSHING

Castor

2шт.

6

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

7

84327580

BUSHING

3.5 X 3.8 X 3.5"

2шт.

8

47377985

PIN

1шт.

9

47377986

PAD

Nylon

1шт.

10

47424245

WASHER

Cap

1шт.

11

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

12

87330641

WHEEL

Wheel Only Silver

2шт.

12

87330639

WHEEL

Wheel Only White

2шт.

13

47426036

SHAFT

Axle

1шт.

14

47446162

BEAM

2шт.

15

87693681

LOCK PIN

Axle

4шт.

16

84158592

LOCK PIN

Spring

8шт.

17

87515479

WHEEL NUT

Lug

16шт.
