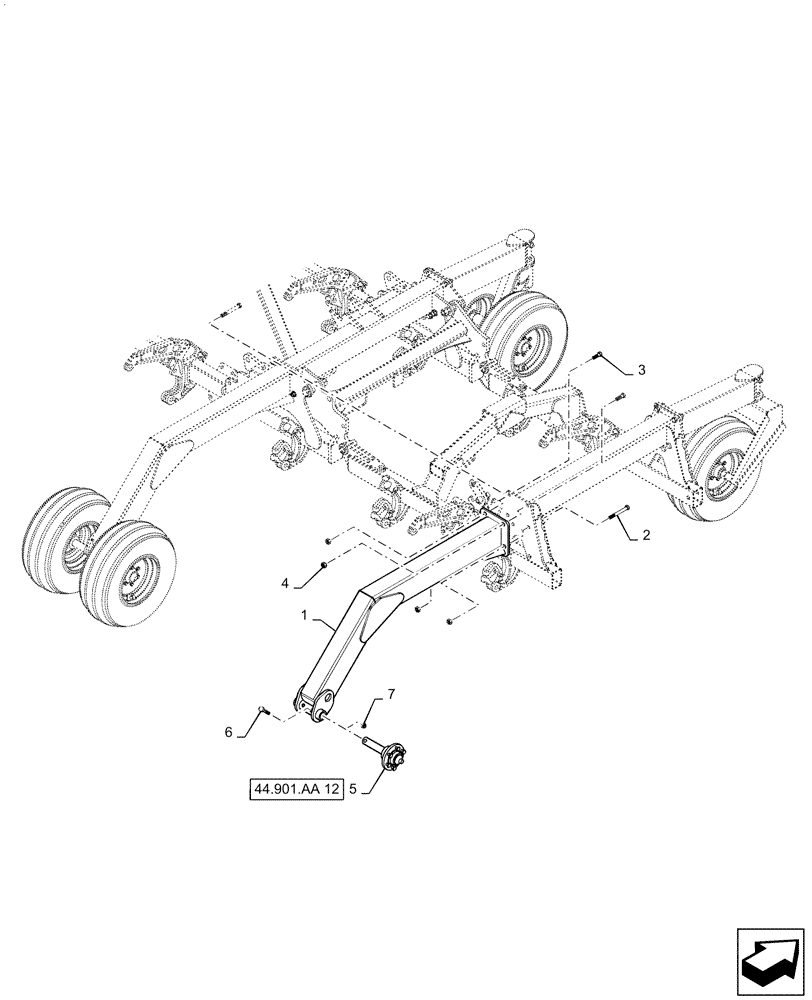

Запчасти Case IH 500 (39.100.AA[03]) - REAR SINGLE FIXED FRAME WING BEAM (39) - FRAMES AND BALLASTING

1

84479977

BRACKET

Rear Wheel Fixed Red , Start Serial: YFS061075

1шт.

1

84479978

BRACKET

Rear Wheel Fixed Blue , Start Serial: YFS061075

1шт.

2

47400859

BOLT

.875 x 6.5", Start Serial: YFS061075

2шт.

3

280488

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

, Start Serial: YFS061075

2шт.

4

87681198

NUT,Hex, 7/8"-9, 0.45 high

, Start Serial: YFS061075

4шт.

5

84327548

HUB

H615-11.5, Start Serial: YFS061075

1шт.

6

280210

BOLT,Hex, 3/4"-10 x 4", G5

, Start Serial: YFS061075

1шт.

7

280375

NUT,3/4"-10, GC

, Start Serial: YFS061075

1шт.
