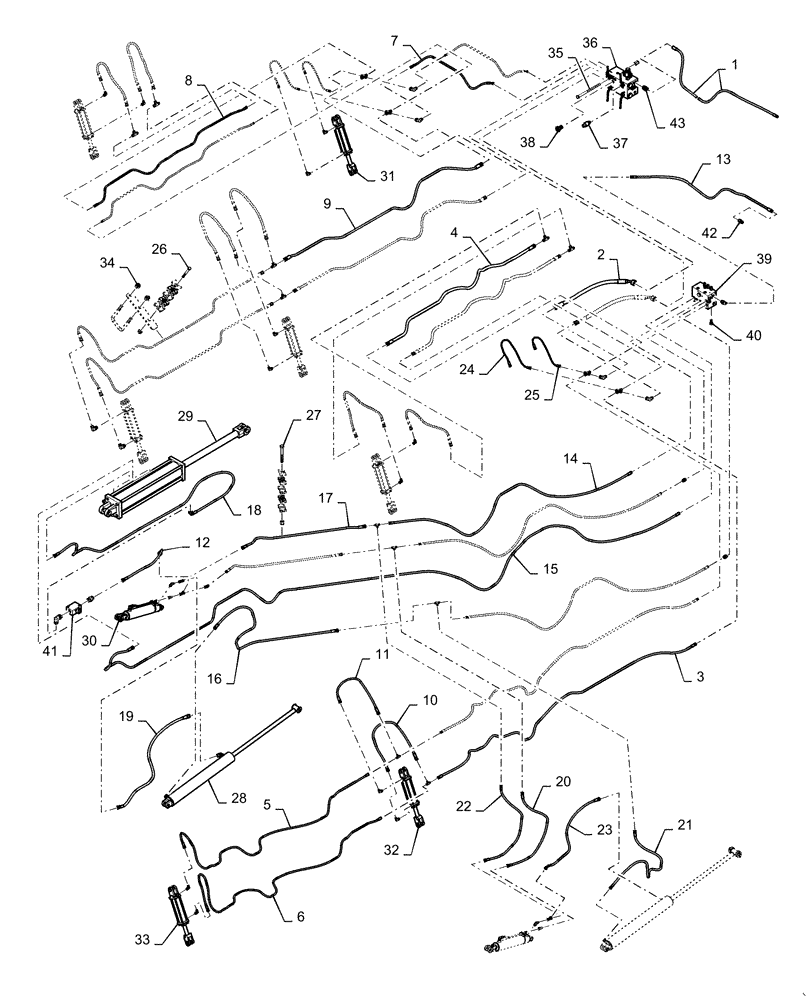

Запчасти Case IH 500 (35.560.AA[01]) - HYDRAULICS 50 FOOT (35) - HYDRAULIC SYSTEMS

1

47429664

HYDRAULIC HOSE

12.5 X 6750mm

2шт.

2

47429668

HYDRAULIC HOSE

12.5 x 1000mm

2шт.

3

90685C1

HYDRAULIC HOSE,12.70 mm ID x 4825.00 mm, SAE 100R1

2шт.

4

47595040

HYDRAULIC HOSE

12.5 X 4080mm

2шт.

5

47593448

HYDRAULIC HOSE

10 X 4165mm

4шт.

6

47593449

HYDRAULIC HOSE

10 X 4990mm

4шт.

7

47429696

HYDRAULIC HOSE

12.5 X 2570mm

2шт.

8

47523462

HYDRAULIC HOSE

12.5 X 4150mm

2шт.

9

47595187

HYDRAULIC HOSE

12.5 X 4220mm

2шт.

10

47429701

HYDRAULIC HOSE

10 X 1200mm

4шт.

11

47429704

HYDRAULIC HOSE

10 X 910mm

4шт.

12

47587242

HYDRAULIC HOSE

10 X 775mm

2шт.

13

47429760

HYDRAULIC HOSE

12.5 X 800mm

2шт.

14

47429755

HYDRAULIC HOSE

10 X 4000mm

6шт.

15

47558828

HYDRAULIC HOSE

10 X 8210mm

2шт.

16

47558830

HYDRAULIC HOSE

10 X 1765mm

2шт.

17

47558825

HYDRAULIC HOSE

10 X 1400mm

4шт.

18

47577651

HYDRAULIC HOSE

10 X 2900mm

2шт.

19

47595027

HYDRAULIC HOSE

10 X 1200mm

2шт.

20

47558819

HYDRAULIC HOSE

10 X 1475mm

2шт.

21

47558832

HYDRAULIC HOSE

10 X 1360mm

2шт.

22

47593451

HYDRAULIC HOSE

10 X 1480mm

2шт.

23

47593450

HYDRAULIC HOSE

10 X 1200mm

2шт.

24

47593421

HYDRAULIC HOSE

10 X 1455mm

2шт.

25

47593422

HYDRAULIC HOSE

10 X 1165mm

2шт.

26

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

4шт.

27

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

4шт.

28

47394300

HYDRAULIC CYLINDER

5 X 42 3000 PSI

4шт.

29

84590462

HYDRAULIC CYLINDER

5 X 24 3000 PSI

2шт.

30

47456230

HYDRAULIC CYLINDER

3.25 X 14 3000 PSI

4шт.

31

84526101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3.5 X 8 3000 PSI

2шт.

32

84526100

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 X 8 3000 PSI

2шт.

33

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2.5 X 8 3000 PSI

6шт.

34

86629544

NUT,5/16” – 18, GR B

55шт.

35

88575

BOLT,Hex, 5/16" - 18 x 5", Gr 5

2шт.

36

47448808

HYDRAULIC MANIFOLD

1шт.

37

87428328

PRESSURE SWITCH

High

1шт.

38

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

39

47475818

FLOW CONTROL VALVE

1шт.

40

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

41

87501817

SHUT-OFF VALVE

2шт.

42

9412

QUICK MALE COUPLING

4шт.

43

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

8шт.
