(79.904.AA[01]) - HOSE SUPPORT TOW BETWEEN AIR CARTS

Запчасти Case IH 500 (79.904.AA[01]) - HOSE SUPPORT TOW BETWEEN AIR CARTS (79) - PLANTING

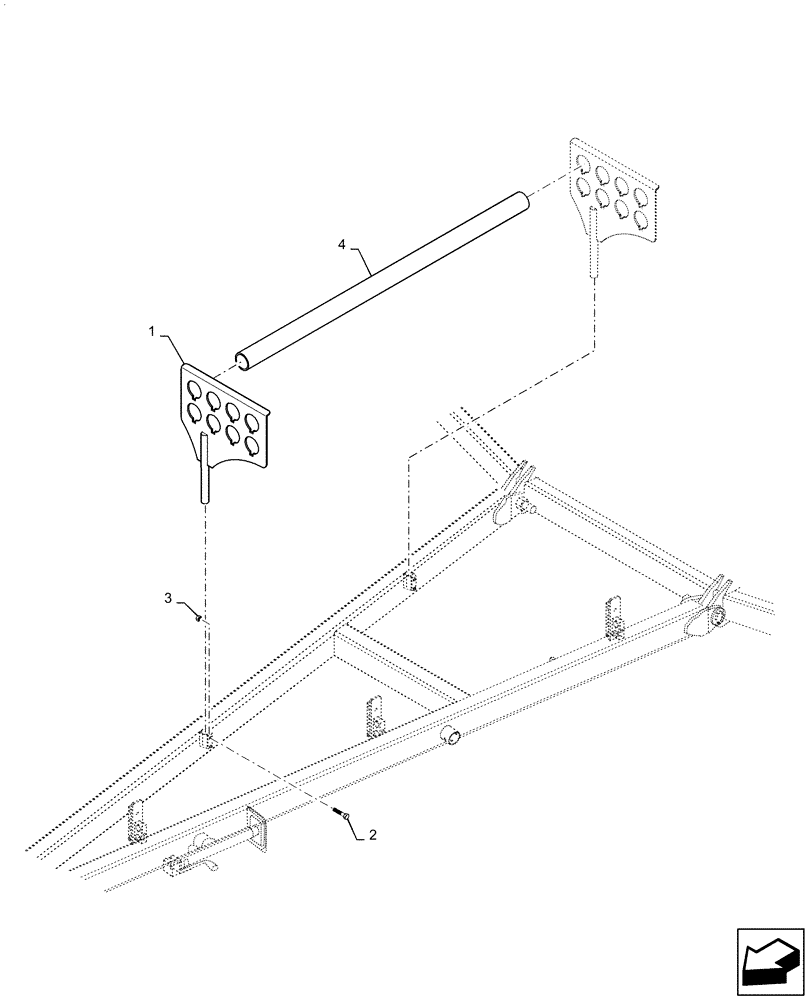

Схема запчастей Case IH 500 - (79.904.AA[01]) - HOSE SUPPORT TOW BETWEEN AIR CARTS (79) - PLANTING
2
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47596675

SUPPORT

Primary Hose Carrier

1шт.

2

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3

9628503

NUT,3/8"-16, G5

2шт.

4

84566663

TUBE

Painted

1шт.
