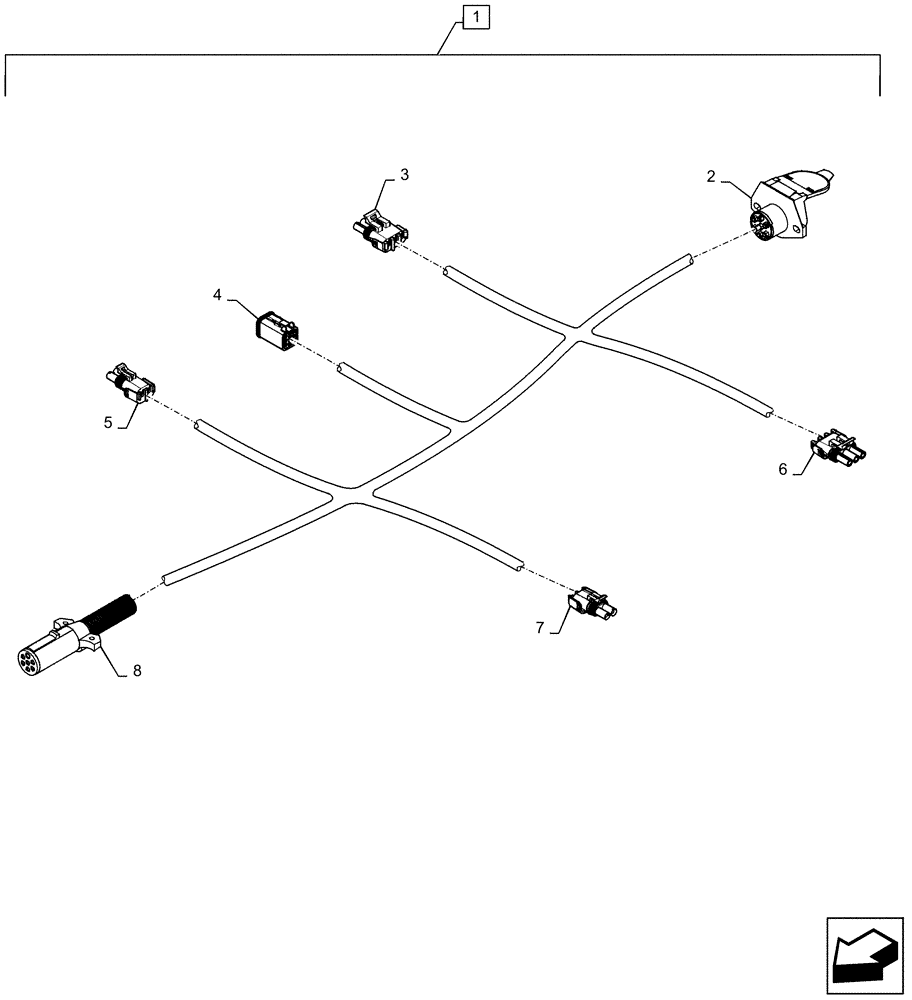

Запчасти Case IH 500 (55.404.AC[02]) - LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case IH 500 - (55.404.AC[02]) - LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5200193.png)
3
7
2
6
8
1
4
5
№
Артикул
Название
Примечание
Количество
1
47481140
WIRE HARNESS
Lighting Incl 2 - 8
1шт.
2
84162518
ELEC CONNECTOR
To Implement
1шт.
3
87644909
WIRE CONNECTOR,Female, 3 Pins
Right Tail Light
1шт.
4
87694112
ELEC CONNECTOR,Female, 6 Pole
Module
1шт.
5
87692855
CONTACT HOUSING,Male, 2 Cavities
Right Turn Signal
1шт.
6
87644909
WIRE CONNECTOR,Female, 3 Pins
Left Tail Light
1шт.
7
87692855
CONTACT HOUSING,Male, 2 Cavities
Left Turn Light
1шт.
8
84137504
MULTIPOLE CONNECTOR,Female, 7 Pole
To Tractor Lights
1шт.
Выбрано товаров: 8
